Page 9
MODELS: LT-40151 / LT-46151 / LT-52151 / LT-40153 / LT-46153 / LT-52153 / LT-46249 / LT-52249

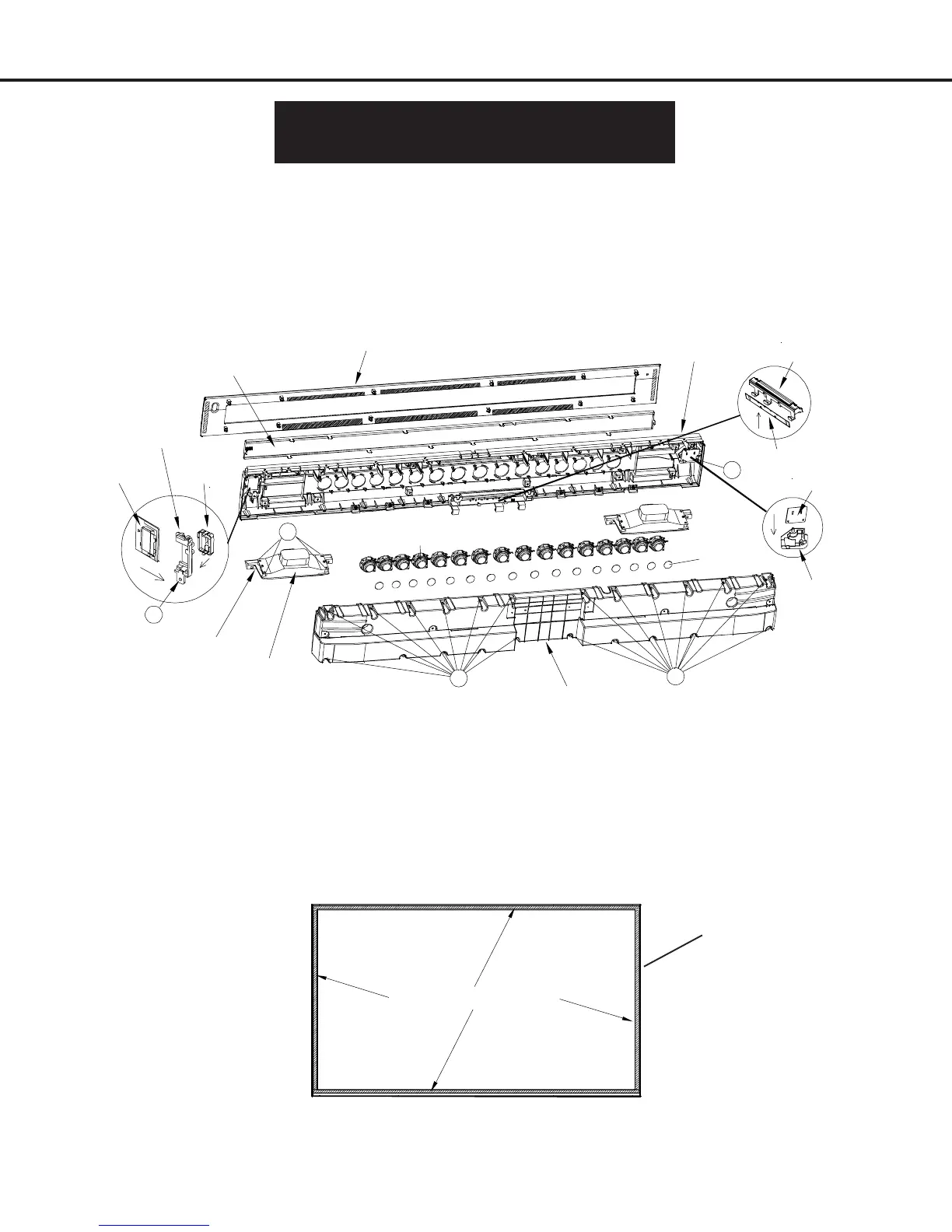

Speaker Cabinet Disassembly (LT-46249 & LT-52249)
1) GRILL-REAR - Remove screws (B).
2) Preamp Assembly - Remove screw (C).
3) LED Assembly - Remove screw (D).
4) SPEAKER(S) - Remove screws (E).
DISASSEMBLY & PARTS REPLACEMENT
(CONTINUED)
B
ORNAMENT-SP
PWB-
PREAMP
LENS
IR
PLATE
IR
B
C
D
SPEAKER
GRILL-SP
GRILL-REAR
NET-SP
SPEAKER-2W
PAD-SP
LENS-LED
PWB-SBL
PLATE-
LED
PWB-LED
E
HOLDER-SP
BEZEL-FRONT Removal**
1) Remove the Speaker Cabinet.
2) Release the clips arond the sides and top of the Bezel and lift away from the front of the LCD Panel .
BEZEL-FRONT Replacement (LT-40153, LT-46153, LT-52153, LT46249, LT-52249)
1) Apply double faced adhesive tape along the inside top, bottom and sides of the Panel-Front.
2) Use even pressure to mate the Panel-Front to the Bezel.
DF-ADHESIVE-TAPE
PANEL-FRONT
To Next Page
