Mitsubishi Electric PUHZ-P125YHA Technical Data Book

52
6

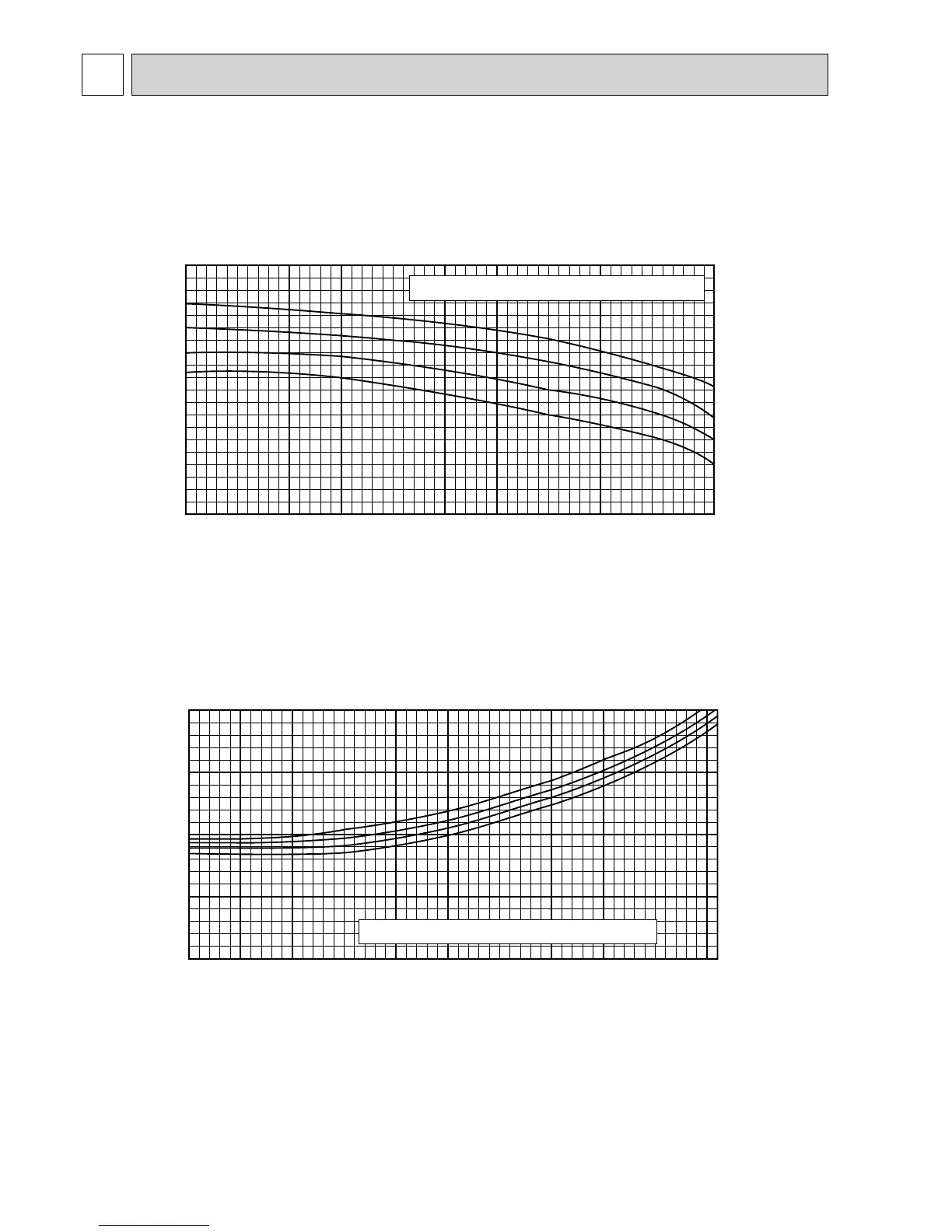

PERFORMANCE CURVES
Note : These diagrams show the case where the operation frequency of a compressor is fixed.
FOR THE COMBINATION OF OUTDOOR UNIT PUHZ-P100/125/140VHA3
PUHZ-P100/125/140YHA
PUHZ-P200/250YHA3
-5 0 5 10 15 20 25 30 35 40 46
16
18
20
22
0.6
0.8
1.0
1.2
1.4
Cooling capacity ratio
Outdoor intake air dry-bulb temperature <D.B. >
-5 0 5 10 15 20 25 30 35 40 46
16
18
20
22
0.4
0.6
0.8
1.0
1.2
Cooling input ratio
Outdoor intake air dry-bulb temperature <D.B. >
Cooling capacity
Cooling input
Indoor intake air wet-bulb temperature <W.B. :>
Indoor intake air wet-bulb temperature <W.B. :>
