7 - 12 7 - 12
MELSEC-Q
7 UTILITY PACKAGE (GX Configurator-CT)
7.4 Initial Settings
[Purpose of operation]
Perform the initial settings for each channel to operate the QD62 (E/D).
Set the following initial setting parameters:
• Preset value • Sampling/periodic setting
• Coincidence output point set No.1 • Ring counter maximum value
• Coincidence output point set No.2 • Ring counter minimum value
• Counter function selection setting
These initial settings eliminate the need to set sequence programs.
[Startup procedure]
"Start I/O No. " "Module type" "Module model name" Initial setting
Enter the start I/O No. in hexadecimal

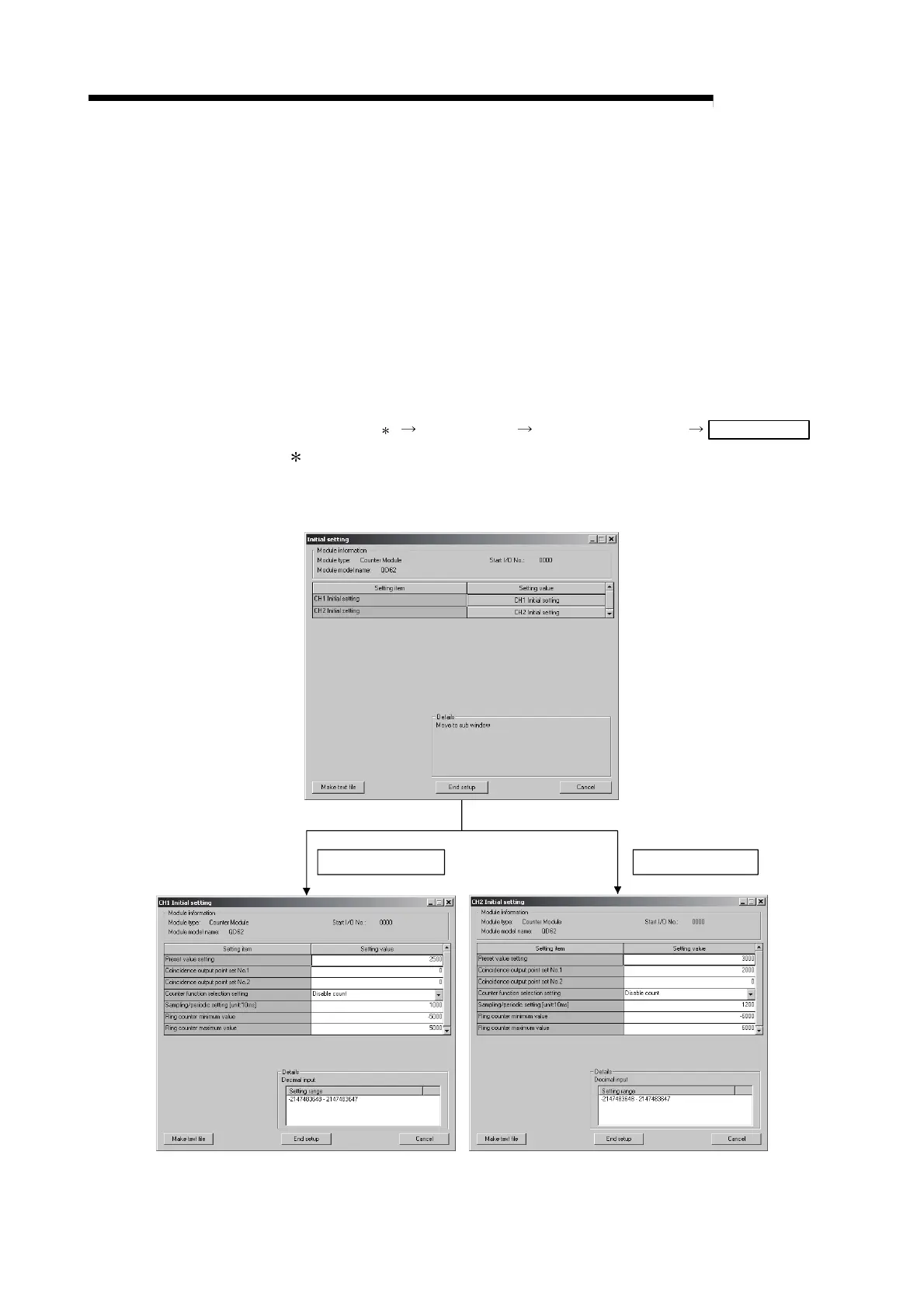

[Setting screen]
CH1 Initial setting CH2 Initial setting
