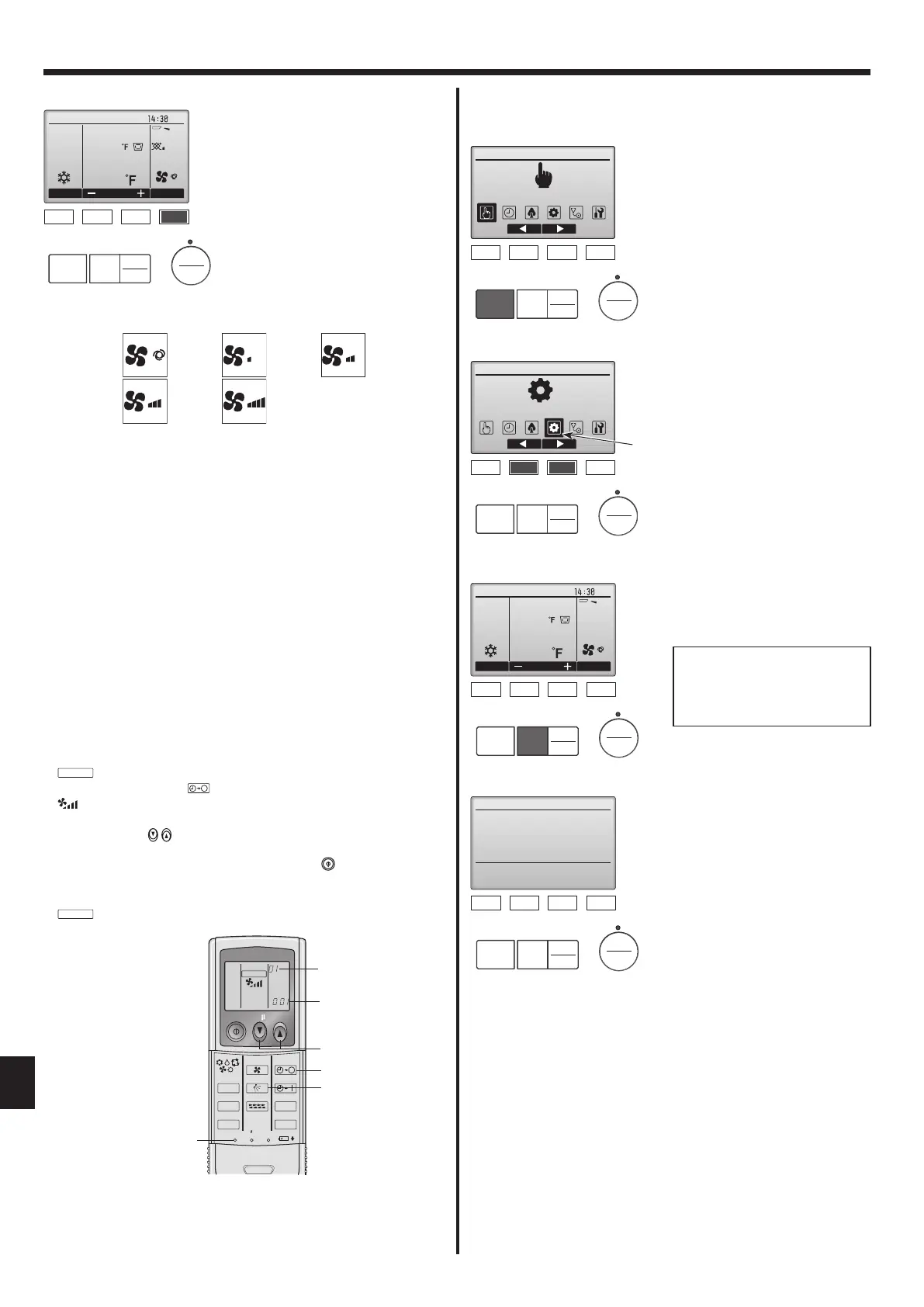

3. Operation
■ Automatic fan speed setting (For wireless remote controller)
It is necessary to set for wireless remote controller only when automatic
fan speed is not set at default setting.
It is not necessary to set for wired remote controller with automatic fan
speed at default setting.
1 Press the SET button with something sharp at the end.
Operate when display of remote controller is off.
MODEL SELECT
blinks and Model No. is lighted A.
2 Press the AUTO STOP button.
blinks and setting No. is lighted B.
(Setting No.01: without automatic fan speed)
3 Press the temp. buttons to set the setting No.02.
(Setting No.02:with automatic fan speed)
If you mistook the operation, press the ON/OFF button and
operate
again from procedure 2.
4 Press the SET button with something sharp at the end.
MODEL SELECT
and Model No. are lighted for 3 seconds, then turned off.
ON/OFF TEMP
RESETSET CLOCK
MODEL SELECT
FAN
VANE
TEST RUN
AUTO STOP
AUTO START
h
min
LOUVER
MODE
CHECK
B
A
3
2
14
5
3.4. Fan speed setting 3.5. Airflow up/down direction setting
3.5.1 Navigating through the Main menu
<Accessing the Main menu>
Main Main menu
Operation
MENU
ON
OFF
RETURN
SELECT
HOLD
<Item selection>
MENU
ON
OFF
RETURN
SELECT
HOLD
Main Main menu
Initial setting
Press the [MENU] button on the
Main display.
The Main menu will appear.
Press [F2] to move the cursor left.
Press [F3] to move the cursor right.
Cursor
The message at left will appear if
the user selects a function not sup-
ported by the corresponding indoor
unit model.
If no buttons are touched for
10 minutes, the screen will
automatically return to the Main
display. Any settings that have not
been saved will be lost.
Press the [RETURN] button to exit
the Main menu and return to the
Main display.
Each pressing of the [F4] button cycles through the following fan speeds.
Auto
• The available fan speeds depend on the models of connected indoor
units.
Notes:
● Thenumberofavailablefanspeedsdependsonthetypeofunit
connected. Note also that some units do not provide an “Auto”
setting.
● Inthefollowingcases,theactualfanspeedgeneratedbytheunit
will differ from the speed shown the remote controller display.
1. While the display is showing “STAND BY” or “DEFROST”.
2. When the temperature of the heat exchanger is low in the heat
mode. (e.g. immediately after heat operation starts)
3. In HEAT mode, when room temperature is higher than the
temperature setting.
4. When the unit is in Drying mode.
MENU
ON
OFF
RETURN
SELECT
HOLD
83
83
Cool
Room
AutoSet temp.
Mode Temp. Fan
Fri
Title
Not available
Unsupported function
Return: RETURN
MENU
ON
OFF
RETURN
SELECT
HOLD
<Exiting the Main menu screen>
<Display of unsupported functions>
MENU
ON
OFF
RETURN
SELECT
HOLD
83
83
Cool
Room
AutoSet temp.
Mode Temp. Fan
Fri
