Page 10
MODELS: WD-60C10 / WD-65C10 / WD-73C10 / WD-60638 / WD-65638 / WD-73638 /
WD-60738 / WD-65738 / WD-73738 / WD-82738 / WD-65838 / WD-73838 / WD-82838

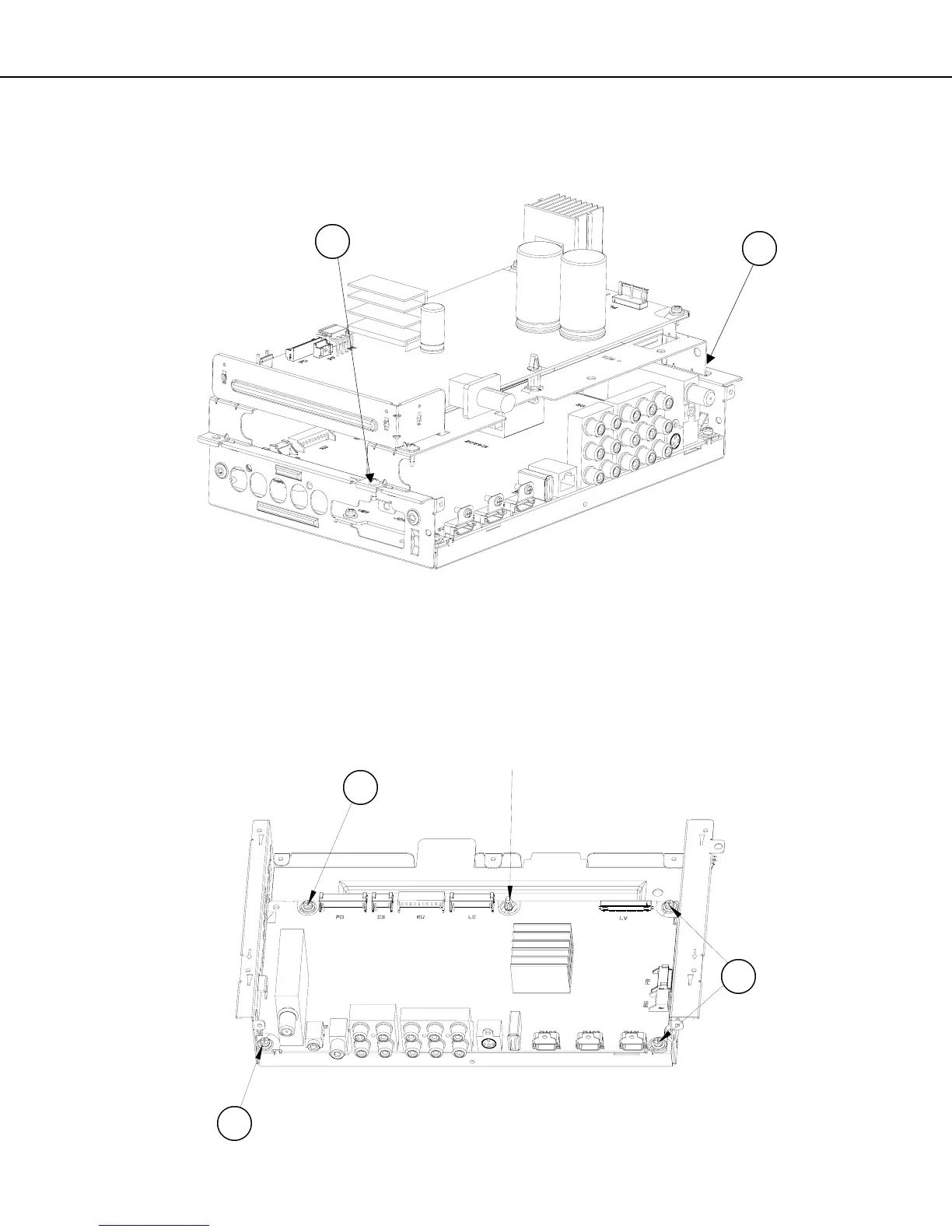

PWB-MAIN ACCESS
1. Remove screws (A).
2. Lift the Power Supply and Mounting Brackets from the chassis.
PWB-MAIN Removal (V43)
1. Disconnect all cables to PWB-MAIN.
2. Remove screws (B) from the top of the PWM-MAIN.
3. Pinch the Retainer to release the PWB.
4. Lift the PWB-MAIN out of the chassis.
B
B
B
Retainer
(Pinch)
A
A
