Page 20
MODELS: WS-48313 / WS-48413 / WS-55313 / WS-55413 / WS-65313 / WS-65413
1H
40%
40%
100%
75%

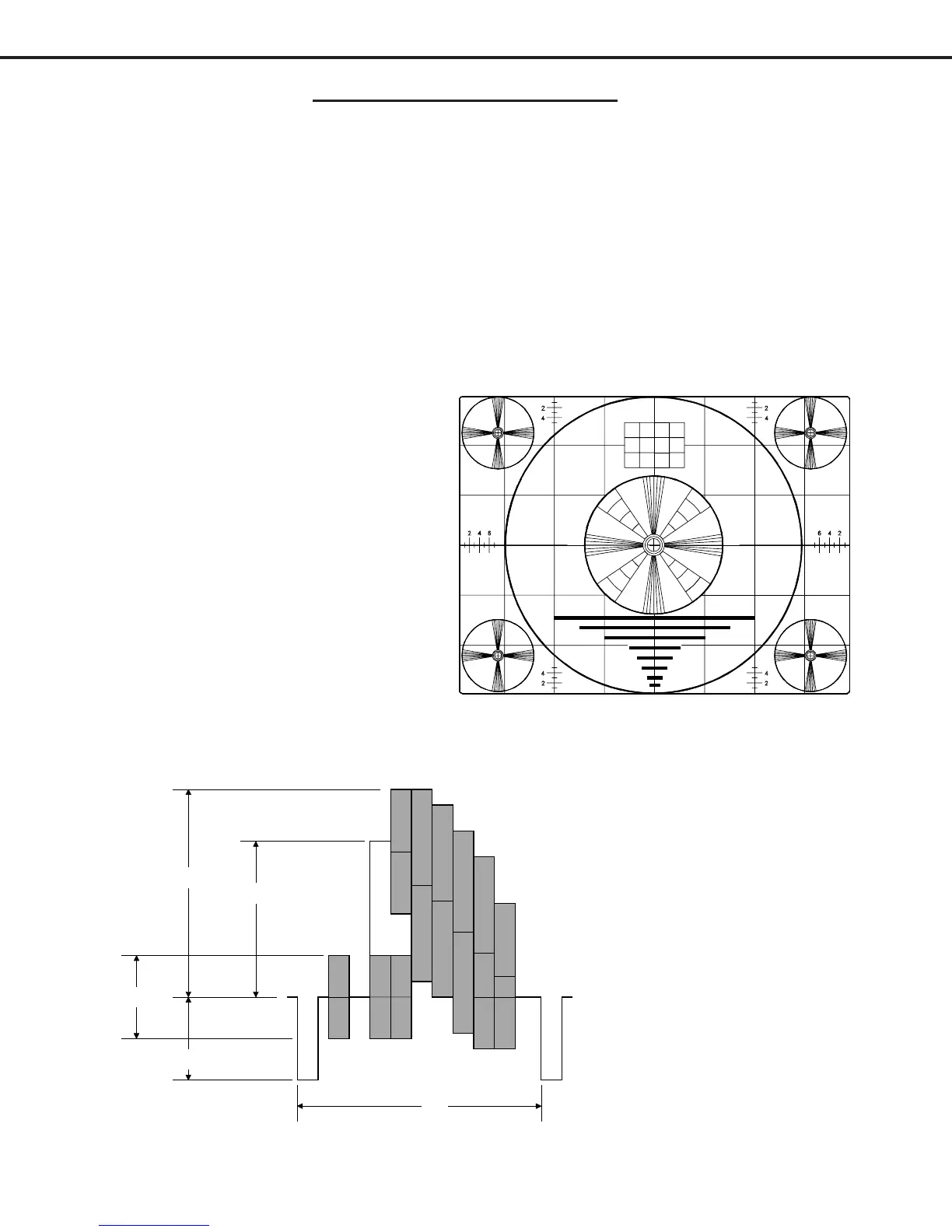

Monoscope Signal
Split-Field Color Bars (100% window)
ELECTRICAL ADJUSTMENTS
Note: Perform only the adjustments required.
Do not attempt an alignment if proper equipment is not available.
1. Test Equipment
Oscilloscope (Unless otherwise specified, use 10:1 probes)
Signal Generator (both SD and HD capable)
Frequency Counter
Direct Current Voltmeter
Direct Current Power Supply
Multiplex Audio Signal Generator
Direct Current Ampere Meter
2. Test Signal
A. Monoscope Signal
Note: If you do not have
a monoscope signal source,
connect the unit to a VCR
and play a Monoscope
*alignment tape.
(* Part Number: 859C568060)
B. Color Bar Signal
Use the color bar signal shown
below, unless otherwise specified
in this manual.
To Next Page
