Ref # Part # Part Name & Description Ref # Part # Part Name & Description

MODELS: WS-48313 / WS-48413 / WS-55313 / WS-55413 / WS-65313 / WS-65413

[#] Model Legend: (1) WS-48313, (2) WS-48413, (3) WS-55313, (4) WS-55413, (5) WS-65313, (6) WS-65413

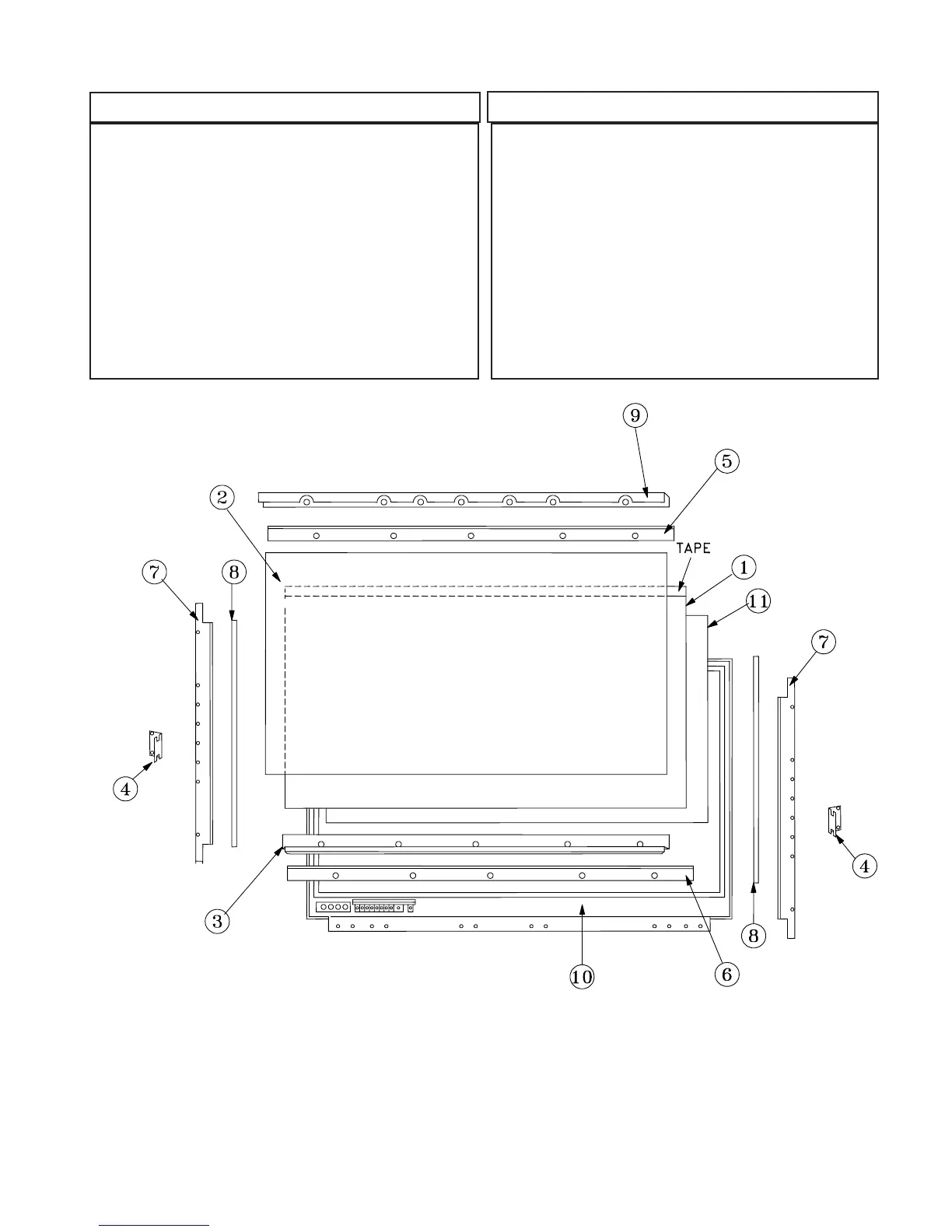

Figure 1: WS-48313 / WS-48413

Screen Assembly Parts (Rear View)

SCREEN ASSEMBLY PARTS

WS-48313 Screen Parts (Figure 1)

(1) 491P138020 SCREEN-LENTICULAR - 48"

(2) 491P139020 LENS-FRESNEL - 48"

(3) 597C027010 BRACKET-SCREEN FRAME

(4) 598D339010 BRACKET-SCREEN-SIDE

(5) 622B010010 HOLDER-SCREEN - TOP

(6) 622B011010 HOLDER-SCREEN - BOTTOM

(7) 622B012010 HOLDER-SCREEN - SIDE

(8) 622B013020 CLIP-DIAMOND SHIELD

(9) 635B109010 STIFFENER-SCREEN - TOP

(10) 751A005060 BEZEL-FRONT

(11) 760D628090 DIAMOND SHIELD

WS-48413 Screen Parts (Figure 2)
