189
-
Procedures of rework

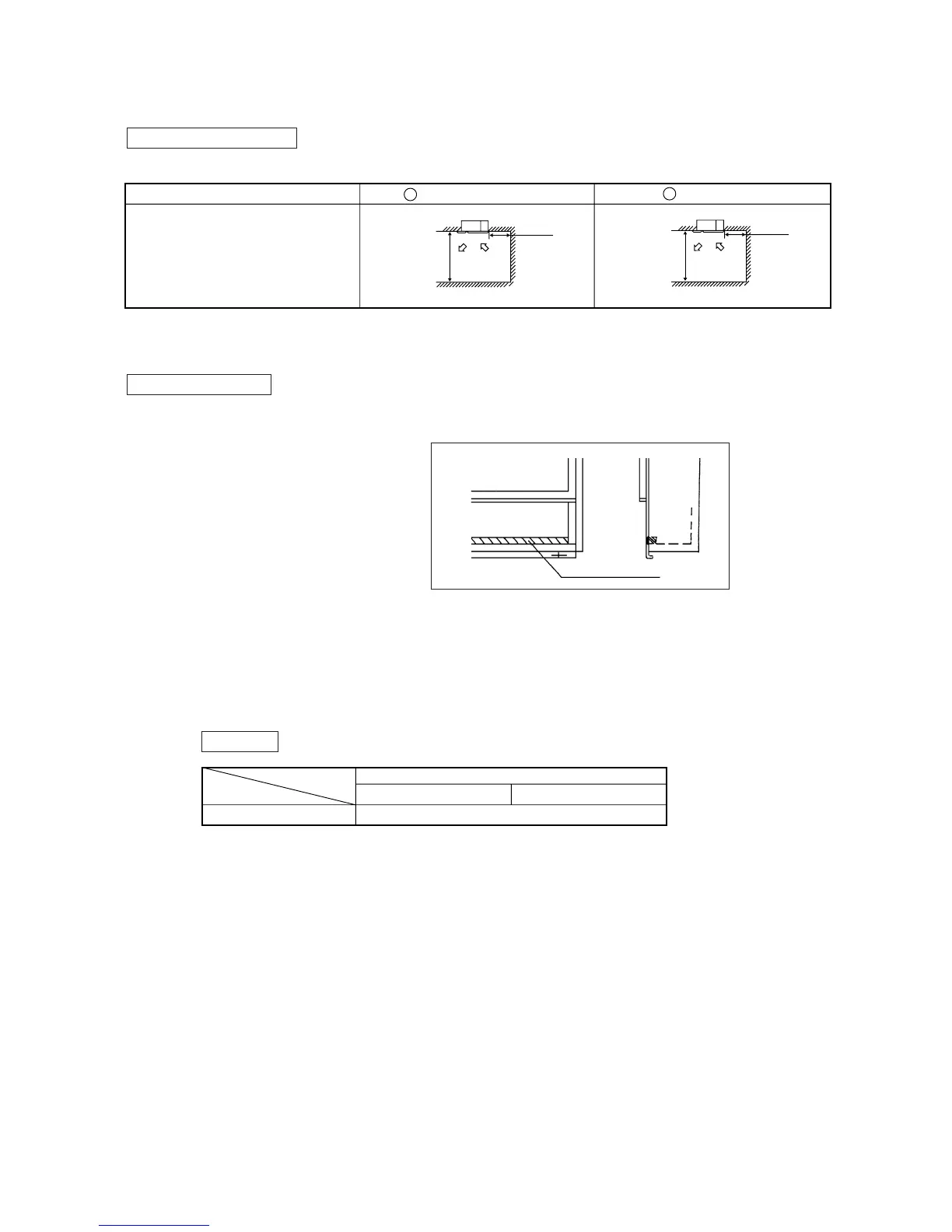

Installation on higher ceiling
Adhere the insulation materials attached to the direct blow panel on the blow outlet of indoor unit.
(d) Ceiling cassette-1 way type (FDTS)
Preparation of indoor unit
It can be installed by either one of the following methods. Select the most adequate method for your particular case.
Note (1) In the case of installing on the high ceiling, part of indoor unit requires some modification.
(i) Selection of installation location
1) Where cool and hot air will be distributed sufficiently.
Where the installation heigh exceeds 3m, warmed air is likely to concentrate close to the ceiling. In such case, you should
install also a circulator.
Reference • Cold air throw
[ Conditions ] 1. Unit heigh
Standard ceiling: 2.4~3.0(m) above floor Higher ceiling: 3.0~4.0(m) above floor
2. Fan speed: Hi
3. Place: Free space without obstruction;
4. Reaching distance means the horizontal distance for the wind to reach the floor.
5. Wind velocity at the reaching distance: 0.5m/s
Note (1) Wind capacity is UHi in case of a higher ceiling. It is value of Hi for other cases.
2) Where the ceiling has sufficient rigidity.
3) Where there is no obstacles in front of the suction intel and blow outlet.
4) It should be avoided such places as kitchen, machine factory, etc. where there profuse liquid splashes or thick steam.
5) Where the height of ceiling exceeds 200mm.
Unit : m
Item
Models
All models
Reaching distance
7
Standard Higher ceiling
Blow outlet
Insulation materials
Installation example and
limitation
A Standard installation B Higher ceiling
2.4m ~ 3m
Floor
Ceiling
3m ~ 4m
100mm
or less
Floor
Ceiling
100mm
or less
To Next Page
