ELECTRICAL SYSTEM
12-17

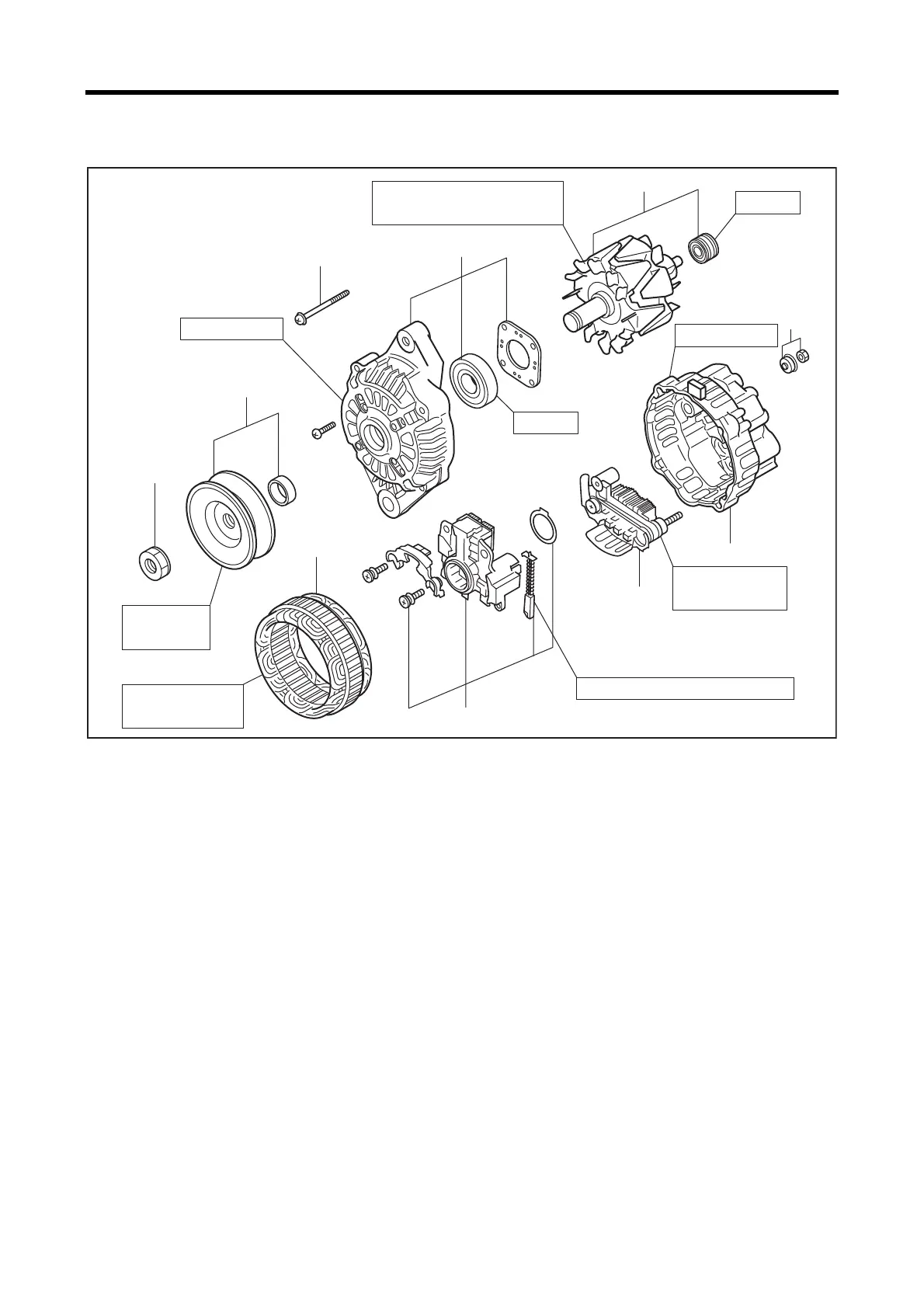

2.5 Disassembling and inspecting alternator
Disassembling and inspecting alternator
Disassembling sequence
1 Nut 5 Rotor assembly 9 Rectifier assembly
2 Pulley, spacer 6 Stator 10 Nut set
3 Screw 7 Rear bracket
4 Front bracket assembly 8 Regulator assembly
1
2
3
4
6
9
7
8
10
5
Crack, damage
Rotation
Deformation
and damage
Broken wire
and ground of coil
Rotation
Crack, damage
Sliding state and wear of brushes
Dirt, damage and seizure of
slip ring, and coil resistance
Short circuit and
open circuit
