12-6 Simple inspection and service
• Before tilting the cab, make sure there is ade-
quate clearance in front of the cab and above it.
If there are any obstructions within the clear-
ance areas shown above, remove them.
• Retract the radio antenna.
2 Tilting the cab
CAUTION
Raise the cab gently. Raising it quickly with
great force could damage the cab tilt mecha-
nism.

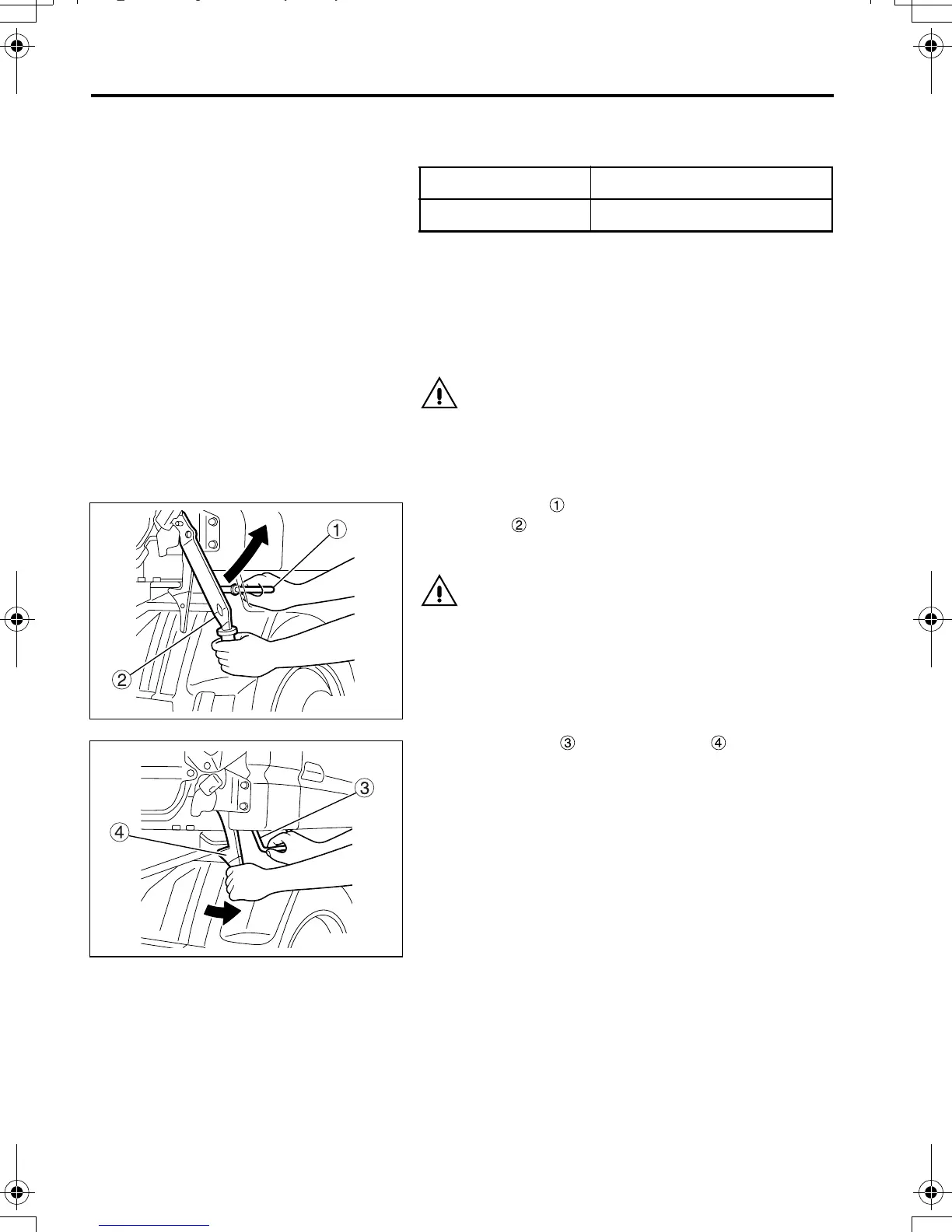

1. Pull lever A . With lever A still pulled, pull up
lever B . Keep lever A pulled until the lever B
has been fully raised.
CAUTION
Lever B must only be raised when lever A has
been pulled. If an attempt is made to raise lever
B by force, it may be damaged as a result.
2. Grasp tilt grip and pull lever C . The cab will
rise slightly.
Clearance in front 1 m or more (3.3 ft. or more)
Clearance above 1 m or more (3.3 ft. or more)
Z10672
Z10673
FE_FG.book Page 6 Wednesday, January 14, 2009 7:08 PM
