1.2 Checking by use of oil level gauge
• Preparation
<Vehicles other than Crew-cab models>
1. Tilt the cab.
<Crew-cab models>
1. Open the inspection cover in the rear floor
mat.
2. Release the lock , then open the hatch .
3. After inspection, close the hatch and inspection
cover by following the opening sequence in
reverse.
CAUTION
The inspection hatch may remain at high tem-
peratures for a certain period of time after the
engine has been stopped. Be careful not to be
burnt by the hatch or engine parts during
inspection.
• Checking
1. Remove oil level gauge and wipe off oil with a
cloth.
2. Fully insert the oil level gauge in the crankcase,
and gently draw it out.
3. The oil level marked on the oil level gauge
should be within the “inspection level range”
indicated in the figure (between the lower notch
and round hole).
4. If necessary, add engine oil to a level within the
“replenishing level range” indicated in the figure.
Change the oil if its level is above the round hole
on the oil level gauge. The engine oil must also
be changed if it is extremely dirty.

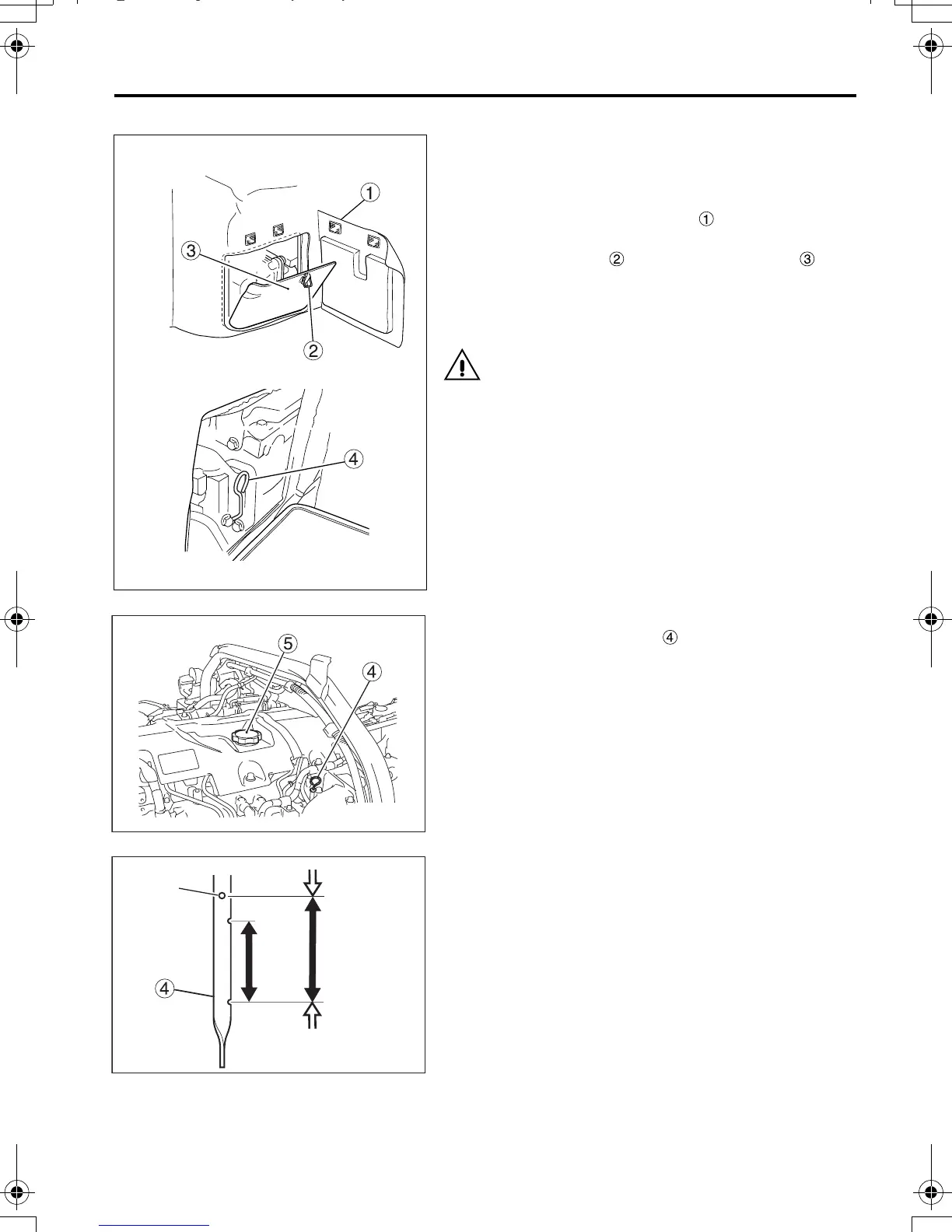

<Crew-cab models>
Z18604
Z16868
<Vehicles other than Crew-cab models>
Z17169
Change oil
Replen-
ishing
level
range
Inspection
level range
Add oil
Round
hole
