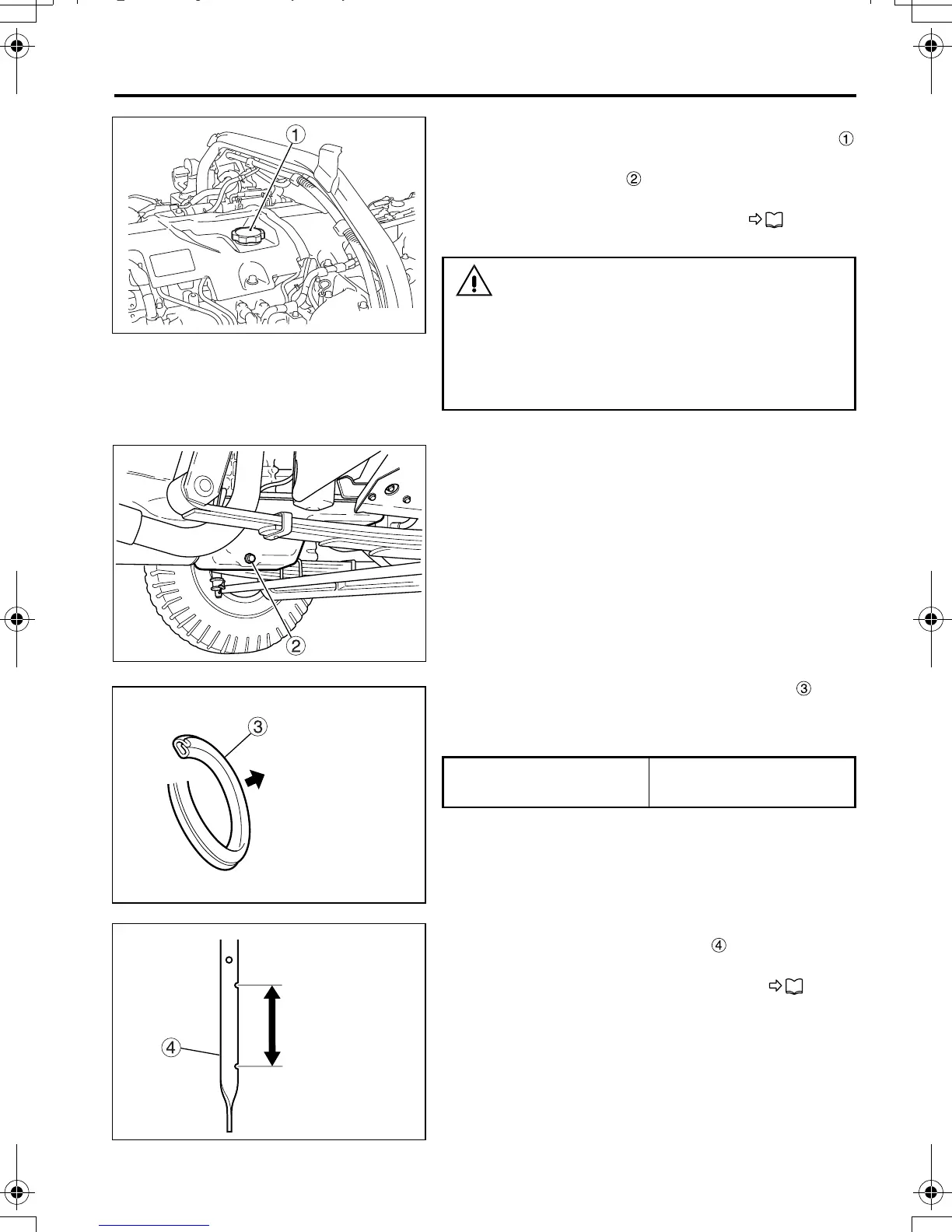

1.4 Replacement
1. Clean the surfaces around the oil filler cap
and remove the oil filler cap.
2. Remove drain plug from the oil pan to remove
the oil. Replace the oil filter at the same time.
P. 1 2 - 4 1
NOTE:
Oil removal is quicker if performed not so long after
the vehicle has been stopped and while the oil is
still warm.
3. After oil has been drained out, clean the area
around the drain plug hole.
4. Install the drain plug with a new gasket . The
side indicated on the figure of the gasket must
be faced toward the oil pan.
5. Carefully pour fresh engine oil through the oil
filler.
6. Wait for more than 10 minutes and check the oil
level using the oil level gauge .
7. Crank the engine with the starter switch, then
start the engine. P. 5-8
8. Let the engine idle allowing oil to circulate
throughout the engine parts. Then, stop the
engine and wait for more than 30 minutes before
checking the oil level again. Also check for pos-
sible oil leaks.
9. After adding oil to the correct level, ensure that
the drain plug, oil filler cap and oil level gauge
are securely installed.
WARNING
The engine oil is extremely hot immediately
after the vehicle has been operated. Take
care to avoid being scalded when draining
hot oil. Give the oil time to cool before drain-
ing it.
Tightening torque
39 N·m (29 ft.lbs.,
4.0 kgf·m)
Z16869
Z10767
Z06454
Faced toward
oil pan
Z17170
Replenishing
level range
