12-40 Simple inspection and service
8. If the fluid level is below the “MIN” line, clean the
reservoir tank’s cap and the surrounding area
then open the cap and add power steering fluid
until it reaches the “MAX” line.
9. Securely fit the cap.
• Crew-cab model
1. Make sure the parking brake is securely applied.
2. Manual transmission vehicles:
Place gearshift lever in the neutral position.
Automatic transmission vehicles:
Place the range selector lever in the “P” posi-
tion.
3. With the vehicle parked on level ground, place
the front wheels in the straight-ahead position
and stop the engine.
4. Apply chocks to the wheels and make sure the
vehicle does not move.

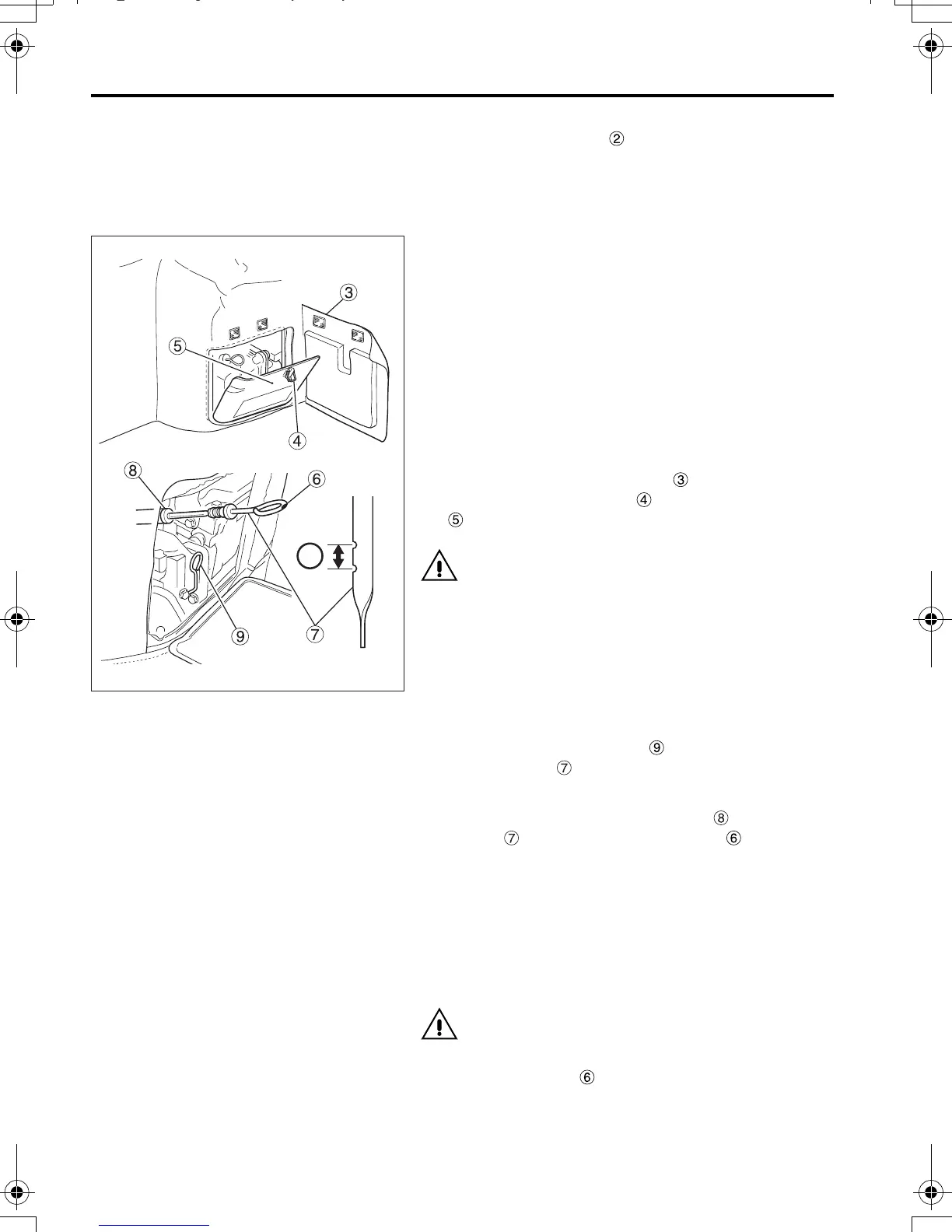

5. Open the inspection cover in the rear floor-
mat. Release the lock , then open the hatch
.
CAUTION
In certain cases, the inspection hatch may
remain at high temperatures for a certain period
of time after the engine has been stopped. In
order to prevent burns, avoid touching this
hatch or other parts of the engine until the tem-
perature has dropped sufficiently.
NOTE:
The engine oil level gauge and power steering
fluid level gauge are located close to each other.
Do not mistake one for the other.
6. Clean the end of the guide pipe for the level
gauge with green painted mark , then with-
draw the level gauge and wipe off all the fluid
that is stuck to it. Next, insert the level gauge
and gently withdraw it. If the fluid level on the
level gauge is between the notches, it is accept-
able. Also, check whether the power steering
fluid is dirty. If it is dirty, have it replaced by an
authorized dealer.
CAUTION
The power steering fluid level gauge has a
green paint mark . Do not mistake it for the
engine oil level gauge.
