13-16 Useful advice for emergencies
CAUTION
• Close the cover completely to prevent rain
water from entering the fuse box.
• When installing Type 1 high-current fuse box
cover, be sure to retain it with the clamps
while pressing it straight downward. Push-
ing the cover toward the inside of the vehicle
with excessive force could break it.

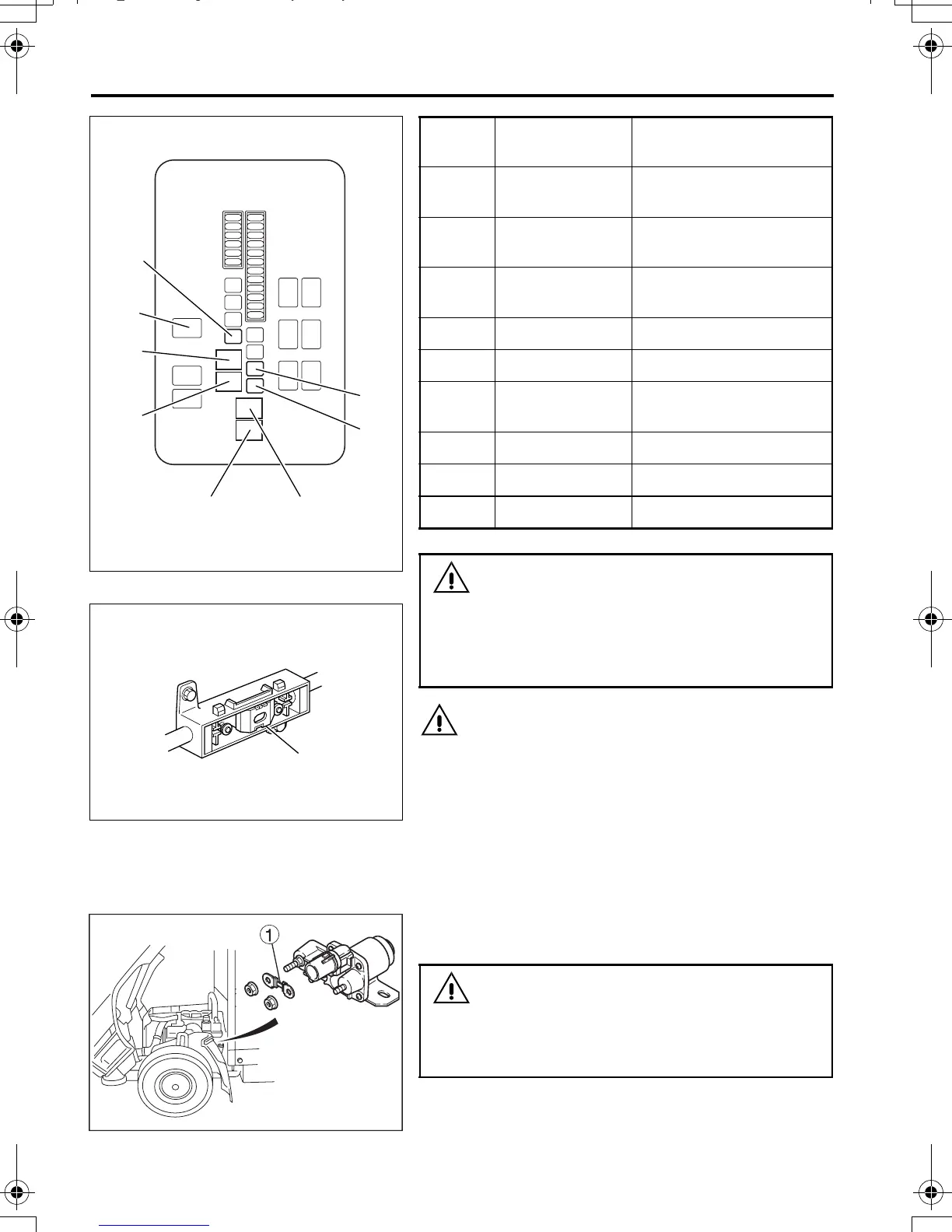

3 Engine preheating circuit fuse
<FE84, FE85, FG>
No.
Amperage
(casing color)
Protected circuit
FH1 60A (yellow)
Fuse box (S1, A1 – A5,
M1 – M12)
FH2 60A (yellow)
Fuse box
(B1 – B12)
FH3 40A (green)
Fuse box
(B13 – B16)
FH7 40A (green) ABS motor
FH8 40A (green) ABS valve
FH12 60A (yellow)
Hydraulic brakes
booster
BATT1 120A (white) Alternator
BATT2 60A (yellow) Glow
A 120A (white) Alternator
WARNING
Replacement high-current fuses should
always be of the specified amperage. Using a
high-current fuse of incorrect amperage
could cause a fire.
WARNING
Fuses carry electric current constantly. For
safety, disconnect the negative battery cable
before replacing any fuse.
Z16875
FH3
FH2
FH12
FH1
FH8
FH7
BATT2 BATT1
<Type 1>
Z18425
<Type 2>
A
Z11262
FE_FG.book Page 16 Wednesday, January 14, 2009 7:08 PM
