Vehicle care and maintenance
7
*: Fusible link
● Some fuses may not be installed on your vehicle, depend-
ing on the vehicle model or specifications.
● The table above shows the main equipment corresponding
to each fuse.

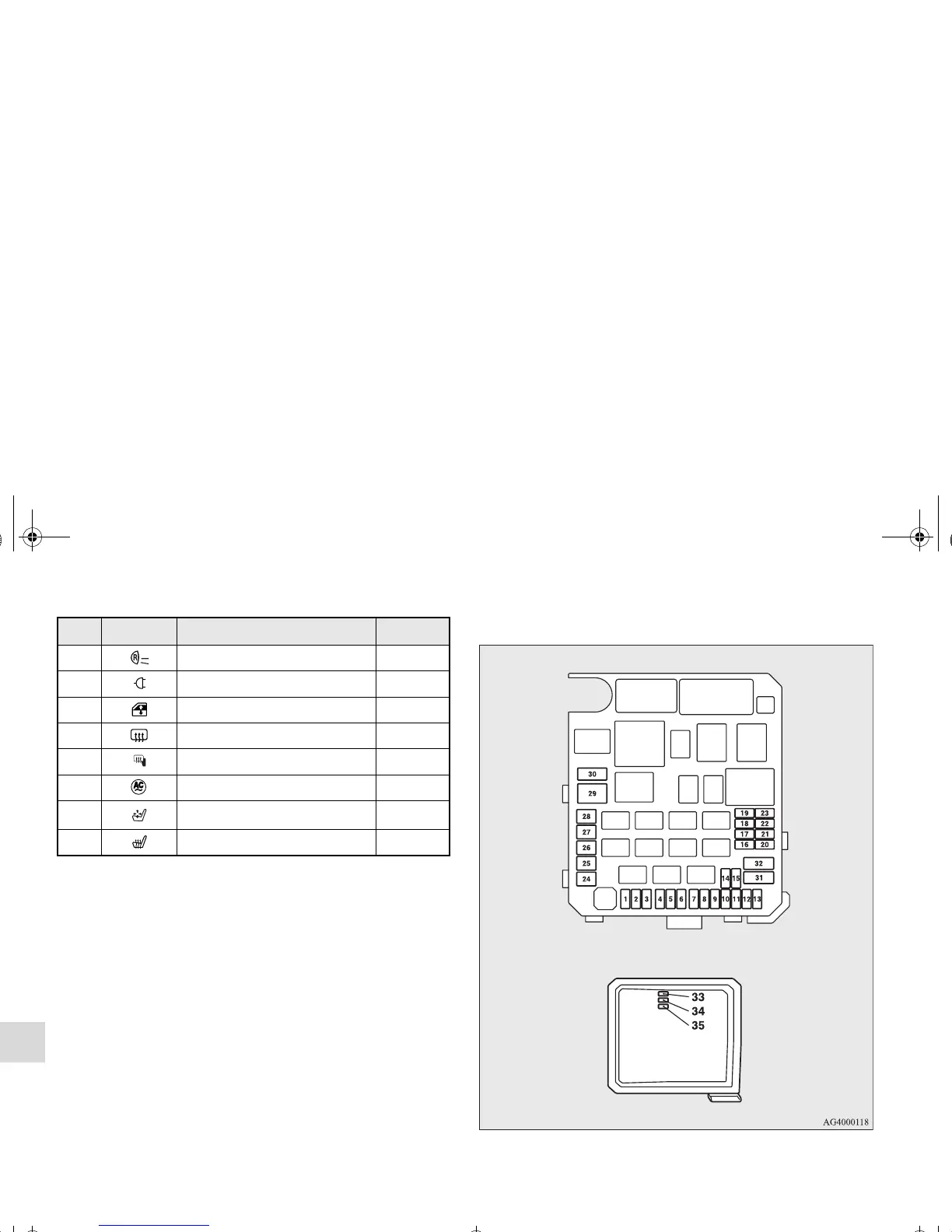

Engine compartment fuse location table
18 Back-up lights 7.5 A
19 Accessory socket 15 A
20 Power window control 30 A*
21 Defogger 30 A*
22 Heated door mirror 7.5 A
23 115V Power Outlet 15 A
24 Power seats 25 (20) A
25 Heated seats 30 A
No. Symbol Electrical system Capacity
Engine compartment fuse location
Behind the fuse block cover
