Vehicle care and maintenance
7-45
7

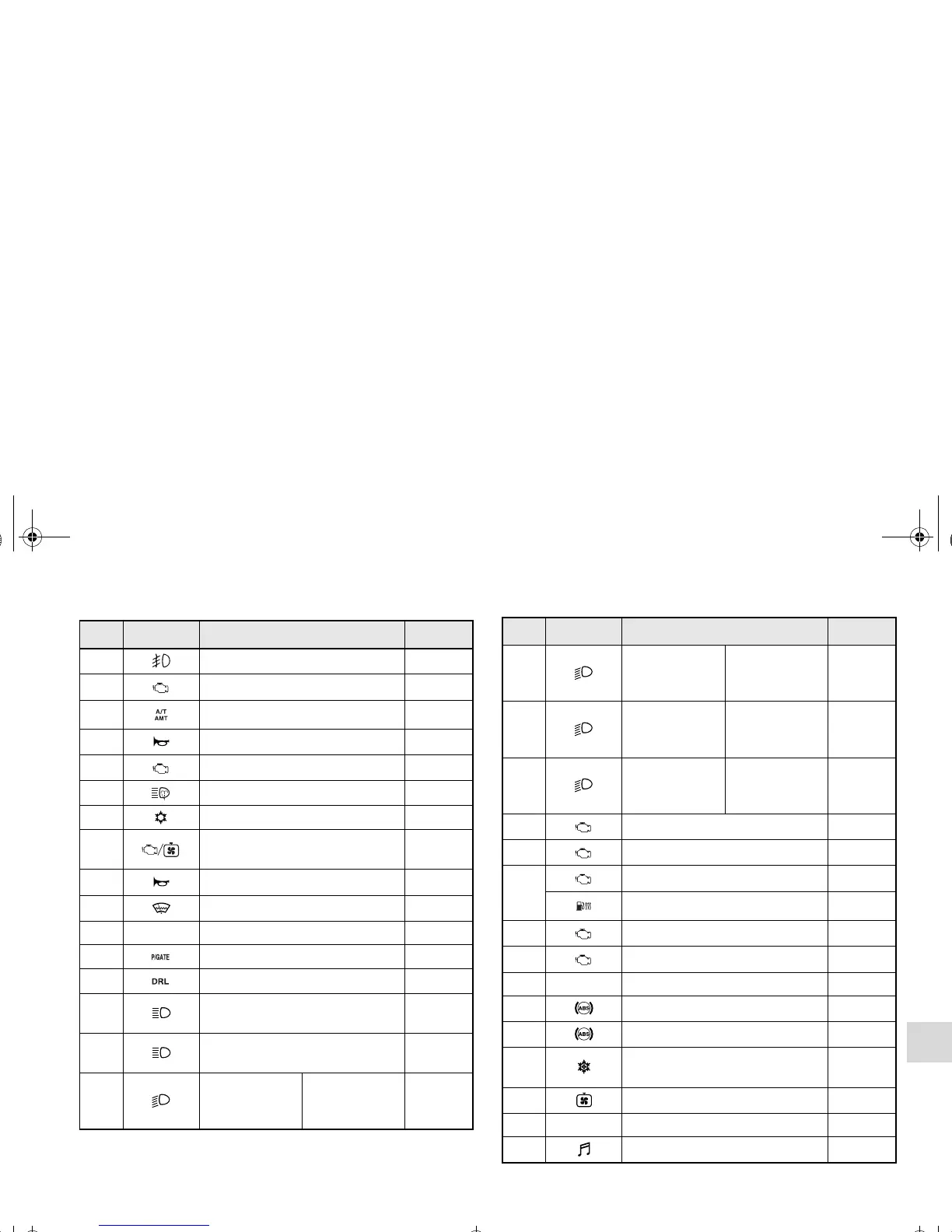

No. Symbol Electrical system Capacity
1 Front fog lights 15 A
2Engine7.5 A
3 Automatic transaxle 20 A
4 Horn 10 A
5 Alternator 7.5 A
6 Headlight washer 20 A
7 Air conditioning 10 A
8
ETV/Oil cooler fan
(Twin Clutch SST)
15 A
9 Security horn 20 A
10 Wiper deicer 15 A
11 — — —
12 Power gate 30 A
13 Daytime running lights 10 A
14
Headlight
(high beam) (left)
10 A
15
Headlight
(high beam) (right)
10 A
16
Headlight
(low beam)
(left)
Discharge 20 A
17
Headlight
(low beam)
(right)
Discharge 20 A
18
Headlight
(low beam)
(left)
Halogen 10 A
19
Headlight
(low beam)
(right)
Halogen 10 A
20 ENG/POWER 10 A
21 Ignition coil 10 A
22
ENG/POWER 20 A
Fuel line heater 25 A
23 Fuel pump 15 A
24 Starter 30 A*
25 — — —
26 Anti-lock braking system 40 A*
27 Anti-lock braking system 30 A*
28
Air conditioning condenser fan
motor
30 A*
29 Radiator fan 40 A*
30 IOD IOD 30 A
31 Audio amplifier 30 A
No. Symbol Electrical system Capacity
