6.4 Download and Monitor your program
Apply power to your controller. Please refer to section 2 of this document.
Ensure the Controller is stopped by clicking Controller|Drive Controller|Stop.
Click Controller|Write to Controller

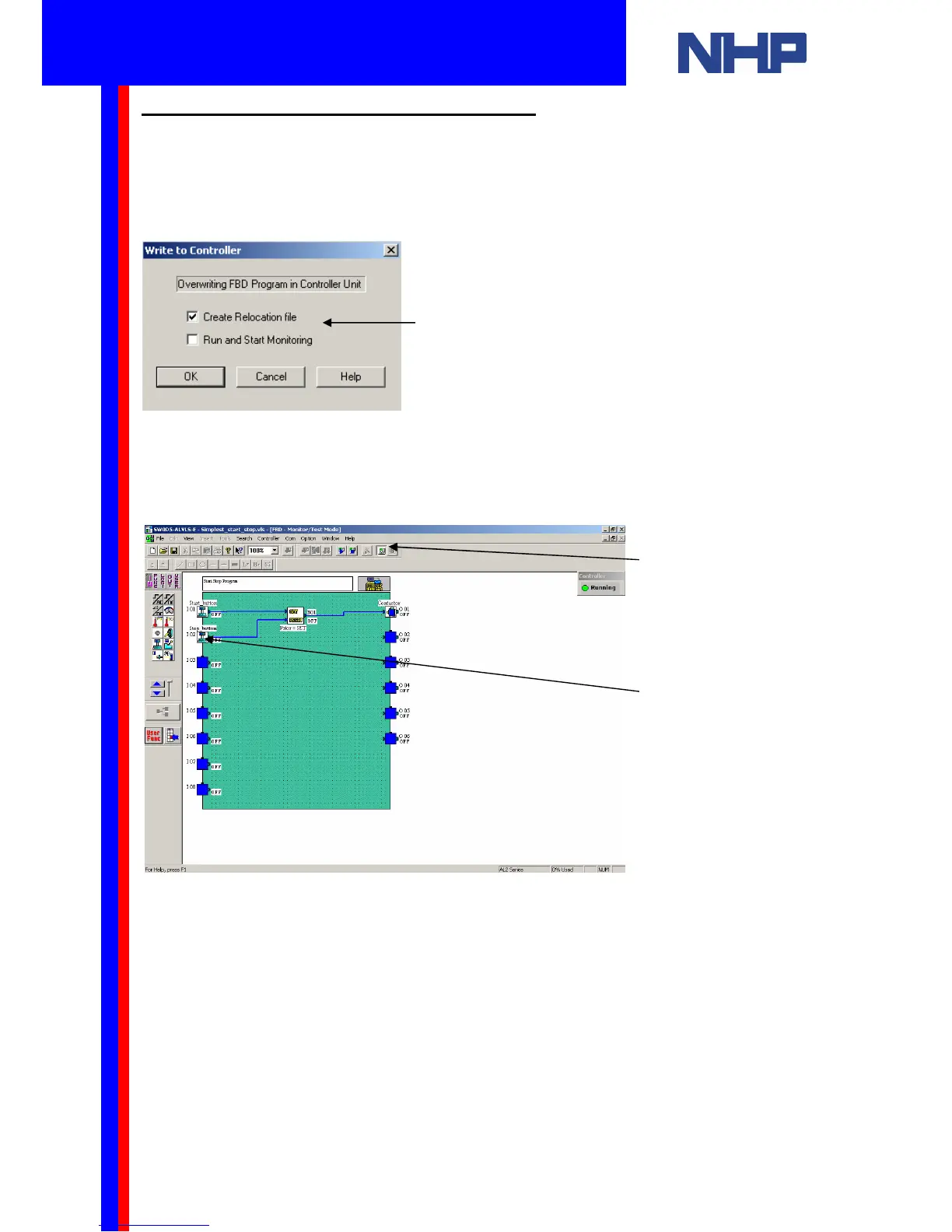

This dialog box will appear:
To run your program Click Controller|Drive Controller|Run.
When you start Monitor mode. You will be able to set and clear inputs and outputs with clicks
of your mouse.
Click the push
switches to set or
clear the inputs
Press this button to
set to Monitor Mode
Ensure these check boxes look
like this, then press OK.
Q u i c k S t a r t G u i d e
Mitsubishi Alpha / Alpha2
Programmable Controller
