Mitsubishi AL2-10-MRD User Manual

34

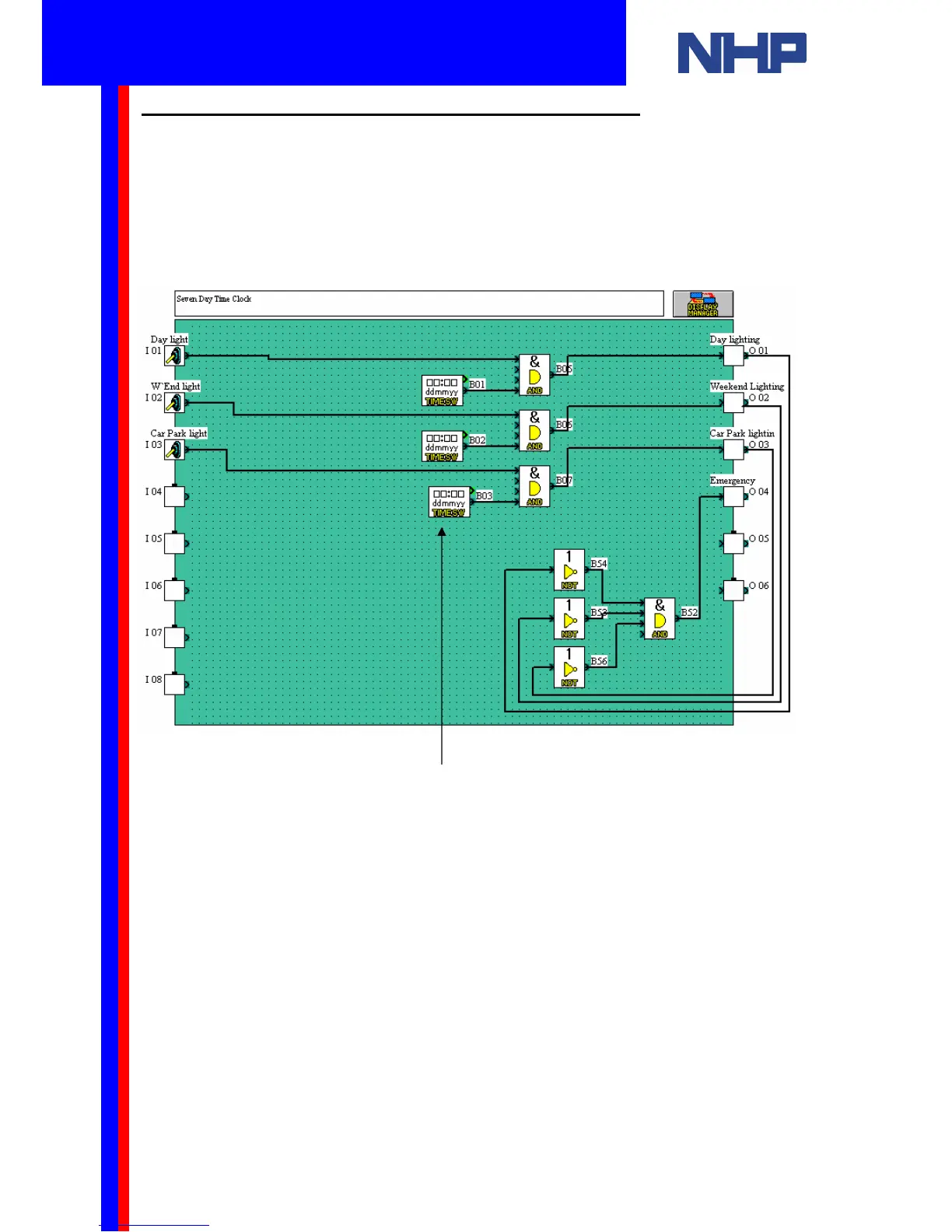

This block is a Time Switch. It uses
the Alpha’s Real Time clock to
switch it’s output at any time and
date you specify.
9. An Example Program for Time Switched Lighting
This program is an example. It is for demonstration purposes only.
This program will switch on lighting at a pre-specified time and day.
1. Choose these blocks from the “Accessories” Toolbar
2. You will set the block’s parameters later.
3. Connect the blocks as shown below.
Q u i c k S t a r t G u i d e
Mitsubishi Alpha / Alpha2
Programmable Controller

Mitsubishi AL2-10-MRD Specifications
