2 Simple Application Controllers
Introduction 1
ENG-5
ENG
1.4 System Configuration

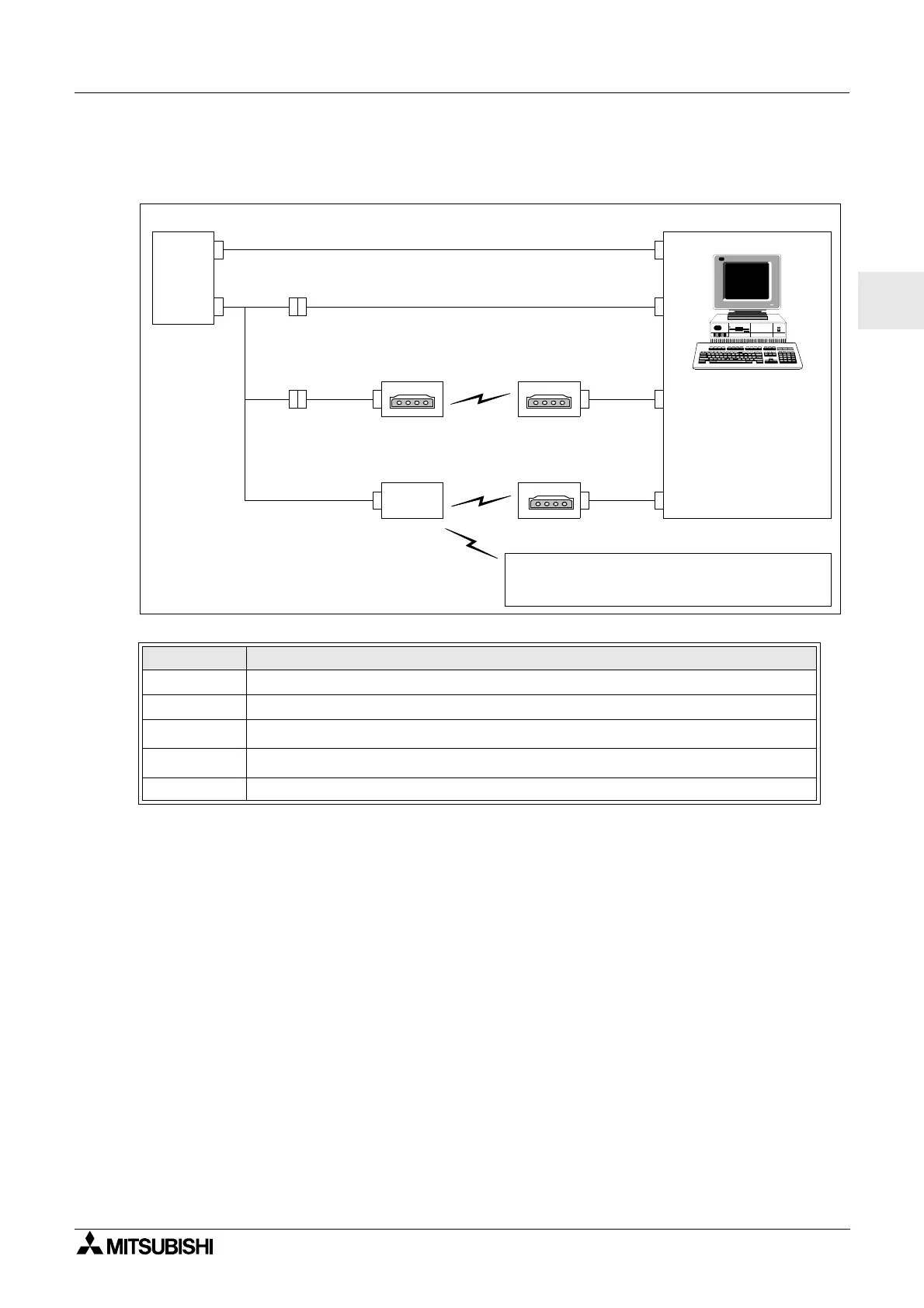

Figure 1.2: System Configuration
*1 Further information can be found in chapter 8.
1.5 Applicable Programming Software
The
α
2 series is supported by the programming software (AL-PCS/WIN-E) V2.00 or
later. Versions lower than V2.00, do not communicate with the
α
2series.
Table 1.5: System Configuration
Item Using Cable
1 AL-232CAB
2AL2-GSM-CAB
3
RS-232C cross cable
*1
4
RS-232C straight cable for the modem
*1
5 RS-232C straight cable for the modem (specified by Modem manufacture)
α
2
Series
GSM
Modem
Remote Maintenance (via Telephone Line)
Remote Maintenance, e-Mail (via GSM)
Personal computer
- Programming Software
(AL-PCS/WIN-E)
- Dedicated protocol
- e-Mail application
Cellular Phone
(Supporting SMS message)
Normal Modem Normal Modem
Normal Modem
Sending SMS Message
UsingDedicatedProtocol
Standard Connection to the Programming Softoware
