Function Blocks 6
6 - 83

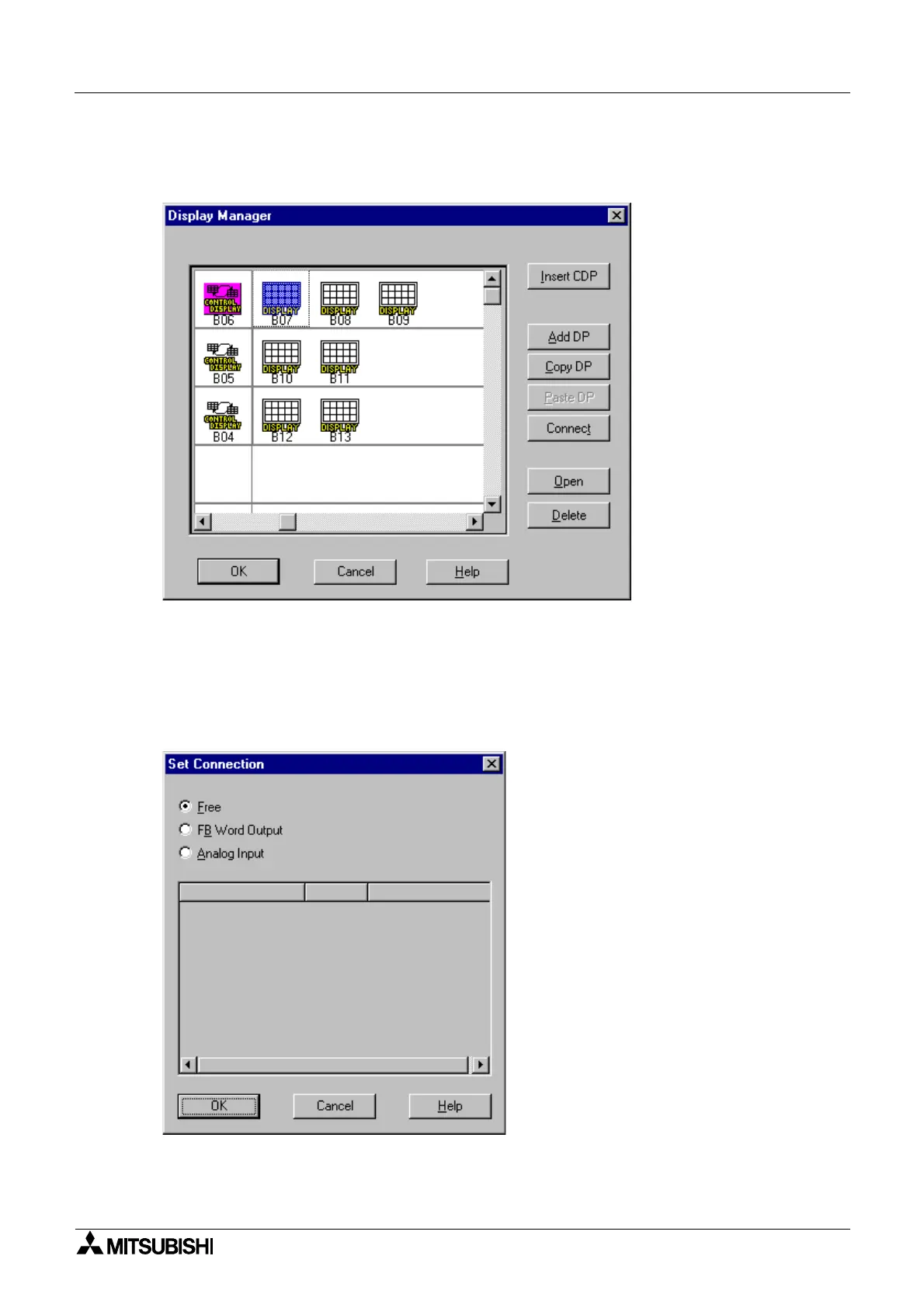

5) Choose the “Display” icon for indication BF (Function Block) or Analog value, and click
“Connect” button.
When not displaying them, please go to step 7)..
6) Click the “Connect” button to display the FB value or the Analog Input value
- Free: Displays the Text, Date or Time. (Default setting)
- FB Word Output: Displays FB value. Choose function blocks from list.
- Analog Input: Displays Analog Input value. Choose Analog Input port.
When completing connection, click the "OK" button.
