Refer to the illustration to ensure that the re-
tainers are correctly aligned as you attach
them.
4. Insert
the wiper blade into the arm, starting
with the opposite end of the blade from the
stopper. Make sure the hook (B) is fitted cor-
rectly in the grooves in the blade.
NOTE
l
If a retainer is not supplied with the new wip-
er blade, use the retainer from the old blade.
5. Push
the wiper blade until the hook (B) en-
gages securely with the stopper (A).
Rear window wiper blades
1.
Lift the wiper arm off the window glass.
2. Pull the wiper blade downward to disengage
it from the stopper (A) at the end of the wip-
er arm. Pull the wiper blade further to re-
move it.
3. Slide a new wiper blade through the hook
(B) on the wiper arm.
NOTE
l
Do
not allow the wiper arm to fall onto the
window glass; it could damage the glass.
4. Firmly insert the retainer (C) into the groove
(D) in the wiper blade.

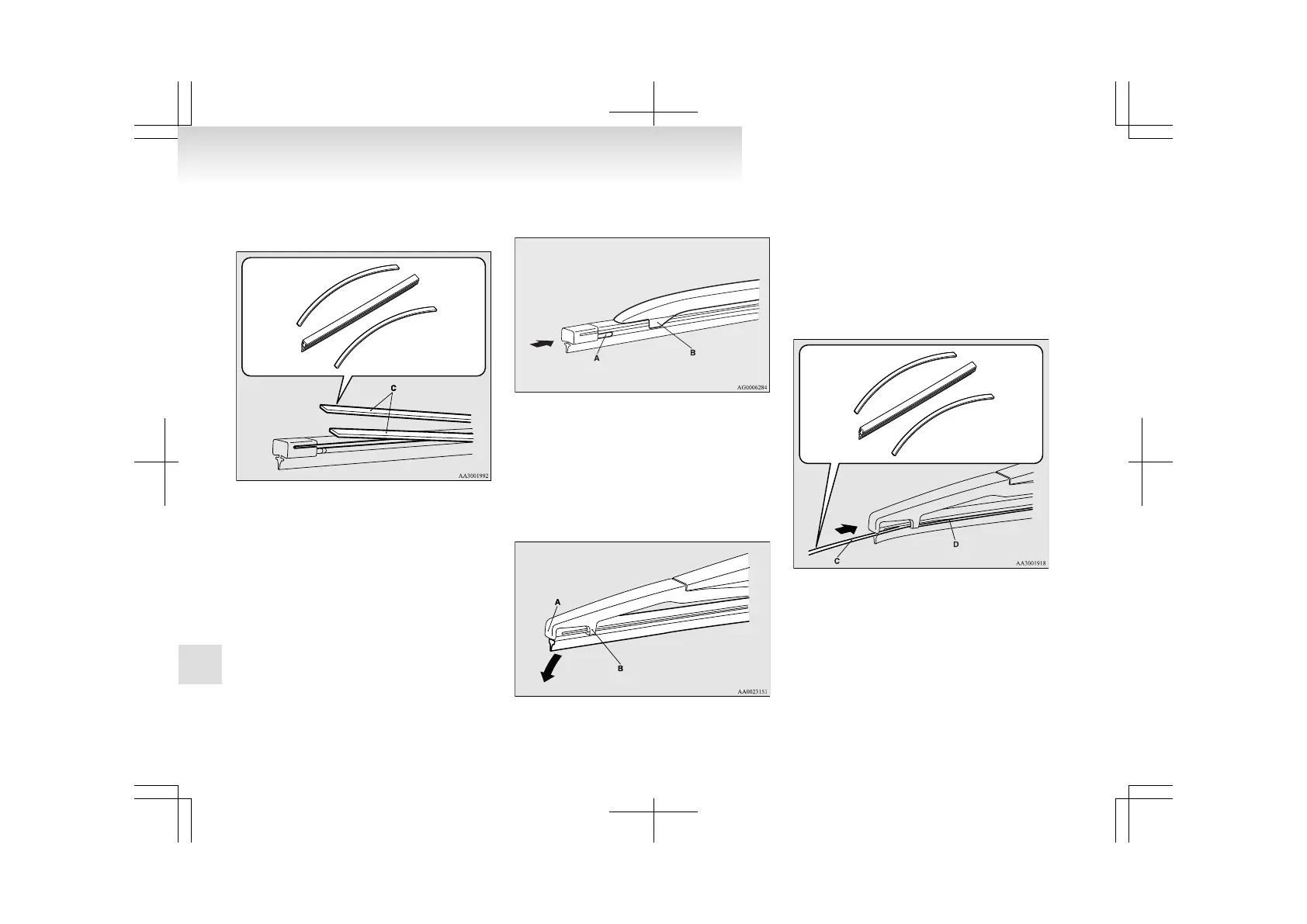

Refer to the illustration to ensure that the re-
tainers are correctly aligned as you insert
them into the groove.
NOTE
l
If
a retainer is not supplied with the new wip-
er blade, use the retainer from the old blade.
