No. Symbol Electrical system
Capaci-
ties
17
Head-
lamp
low
beam
(right)
Dis-
charge
20 A
18
Head-
lamp
low
beam
(left)
Halogen 10 A
19
Head-
lamp
low
beam
(right)
Halogen 10 A
20 ENG/POWER 10 A
21 Ignition coil 10 A
22
ENG/POWER 20 A
Fuel line heater 25 A
23
Fuel pump 15 A
24
Starter 30 A*
25 — — —
26
Anti-lock brake
system
40 A*
27
Anti-lock brake
system
30 A*
No. Symbol Electrical system
Capaci-
ties
28
Air conditioning
condenser fan mo-
tor
30 A*
29 Radiator fan motor 40 A*
30 IOD IOD 30 A
31 Audio system amp 30 A
32
Diesel 30 A
33 — Spare fuse 10 A
34 — Spare fuse 15 A
35 — Spare fuse 20 A
*: Fusible link
l
Some
fuses may not be installed on your ve-
hicle, depending on the vehicle model or spec-
ifications.
l
The table above shows the main equipment
corresponding to each fuse.
The fuse box does not contain spare 7.5 A, 25 A or
30 A fuses. If one of these fuses burns out, substi-
tute with the following fuse.
7.5 A: 10 A spare fuse
25 A: 20 A spare fuse
30 A: 30 A audio system amp fuse
When using a substitute fuse, replace with a fuse of
the correct capacity as soon as possible.
Identification of fuse
Capacity Colour
7.5 A Brown
10 A Red
15 A Blue
20 A Yellow
25 A Natural (White)
30 A
Green (fuse type)/
Pink (fusible link type)
40 A Green (fusible link type)
Fuse replacement
E01007800630
1. Before replacing a fuse, always turn off the
electrical circuit concerned and turn the igni-
tion switch to the “LOCK” position or put
the operation mode in OFF.

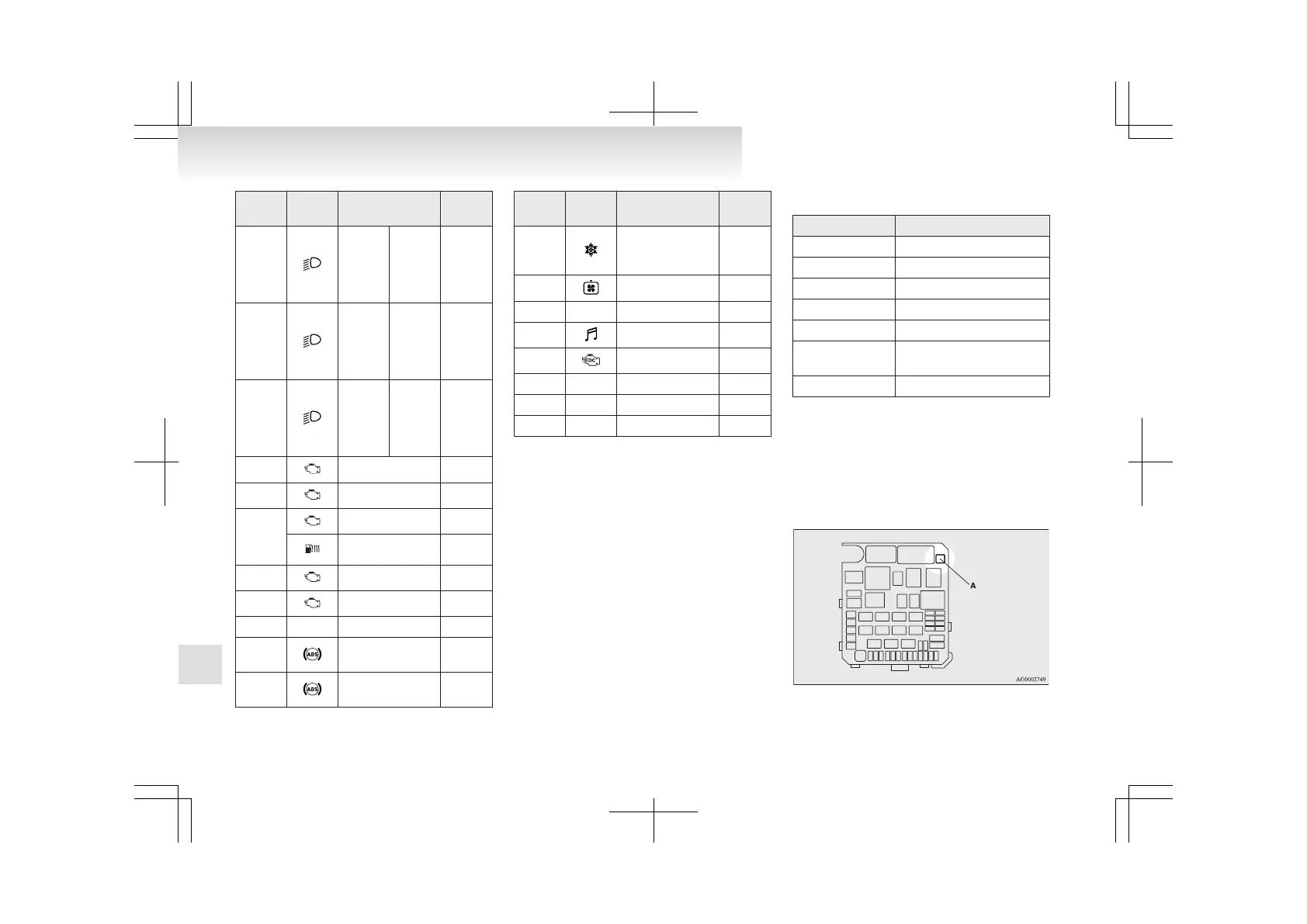

2. Remove the fuse puller (A) from the inside
of the fuse box in the engine compartment.
3. Referring
to the fuse load capacity table,
check the fuse pertaining to the problem.
Maintenance
8-22
8
