Mitsubishi CQ-JB3160AA User Manual

Ref.
No.
Part No. Part Name & Description Remarks
R604 ERJ3GEYJ473V Chip, 47kΩ
ΩΩ
Ω 1/16W
R605 ERJ3GEYJ473V Chip, 47kΩ
ΩΩ
Ω 1/16W
R606 ERJ3GEYJ473V Chip, 47kΩ
ΩΩ
Ω 1/16W
CONNECTORs
CN101 YEAESFW15R1E Connector, 15P
CN401 K1MN14B00028 Connector, 14P
CN901 K1MN05B00010 Connector, 5P
CN902 K1MN05B00009 Connector, 5P
SWITCHes
SW2 ESE22MH32 Switch
SW4 YEAS09275 Switch
COILs
L183 J0JAC0000052 Coil
L184 J0JAC0000052 Coil
L604 J0JCC0000166 Coil
L607 J0JCC0000166 Coil
Ref.
No.
Part No. Part Name & Description Remarks
CRYSTALs
XL101 H2D169500017 Crystal
XL201 H2D419400001 Crystal
NOISE FILTER
R190 J0JAC0000052 Noise Filter
Mechanical Parts
MISCELLANEOUS
AJ1 YEAJ071287 Cord w/Plug
AJ2 YEAJ071285 Cord w/Plug
AP1 YEAP2711 FPC, 5P
AT1 YEATSD00405 Terminal
AT3 YEATSD00405 Terminal
1 YEFS011800 Pad
2 YEFF011070A Heat Sink
3 YEP0PT9196E0 PCB w/Component RTL
4 XYN2+J4FX Screw, 2 * 4
5 XYN2+J6FX Screw, 2 * 6

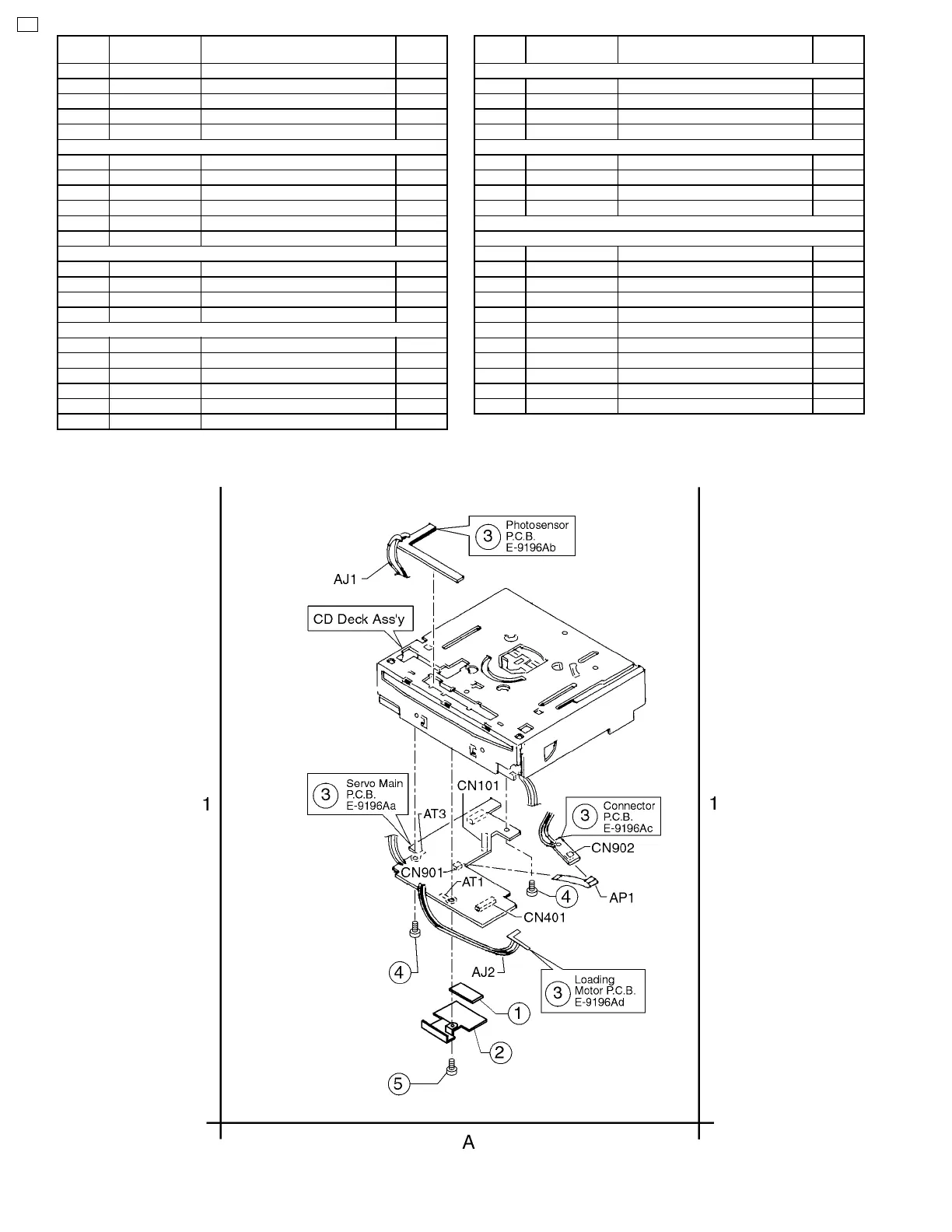

8 EXPLODED VIEW (CD Deck)
8

Mitsubishi CQ-JB3160AA Specifications

General

Brand	Mitsubishi
Model	CQ-JB3160AA
Category	Car Receiver
Language	English
