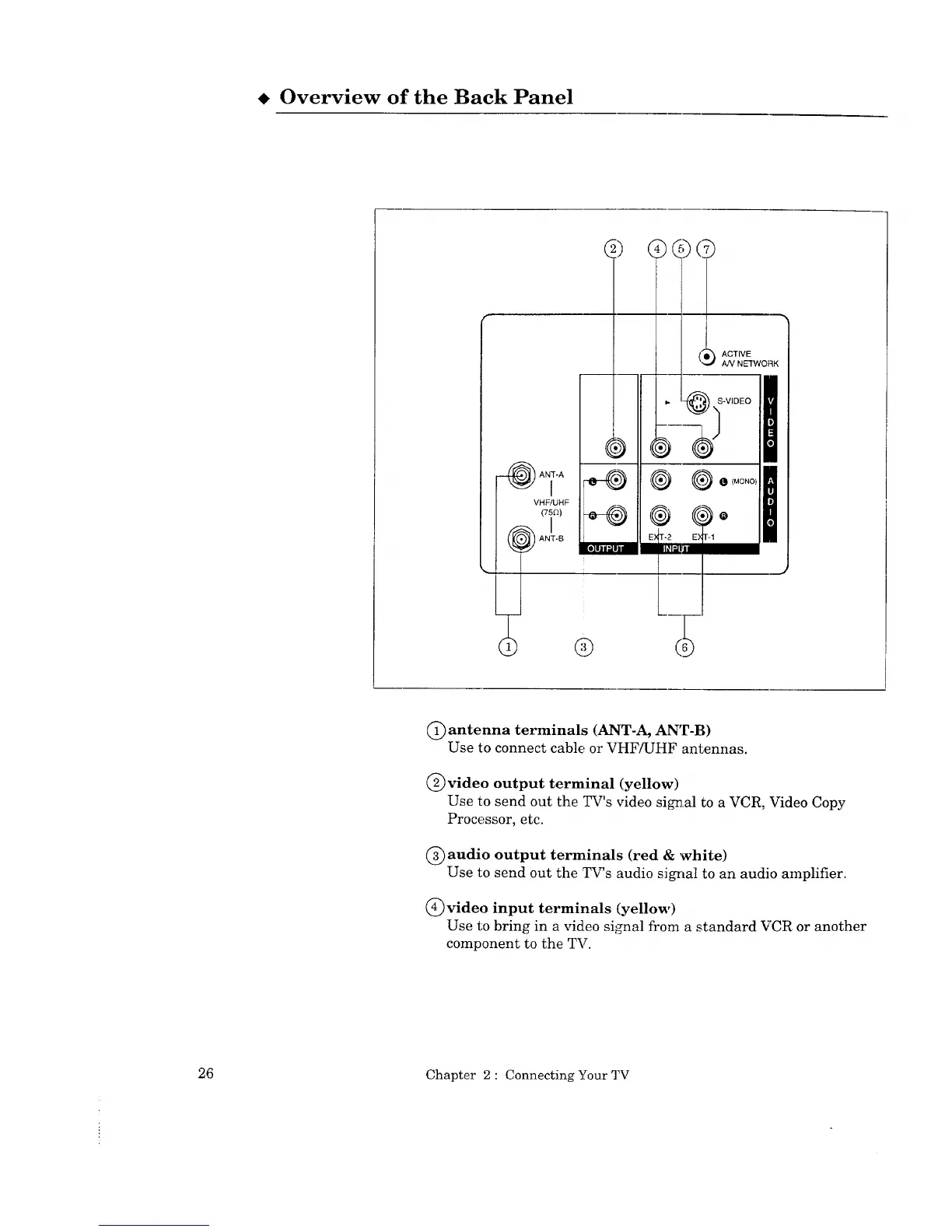

Overview of the Back Panel
AN(-A
VHF/UHF
(75_)
_ _ AN!-B
(!b ACTIVE
AN NETWORK
@ antenna terminals (ANT-A, ANT-B)
Use to connect cable or VHF/UHF antennas.
@video output terminal (yellow)
Use to send out the TV's video signal to a VCR, Video Copy
Processor, etc.
@audio output terminals (red & white)
Use to send out the TV's audio signal to an audio amplifier.
@video input terminals (yellow)
Use to bring in a video signal from a standard VCR or another
component to the TV.
26 Chapter 2 : Connecting Your TV
