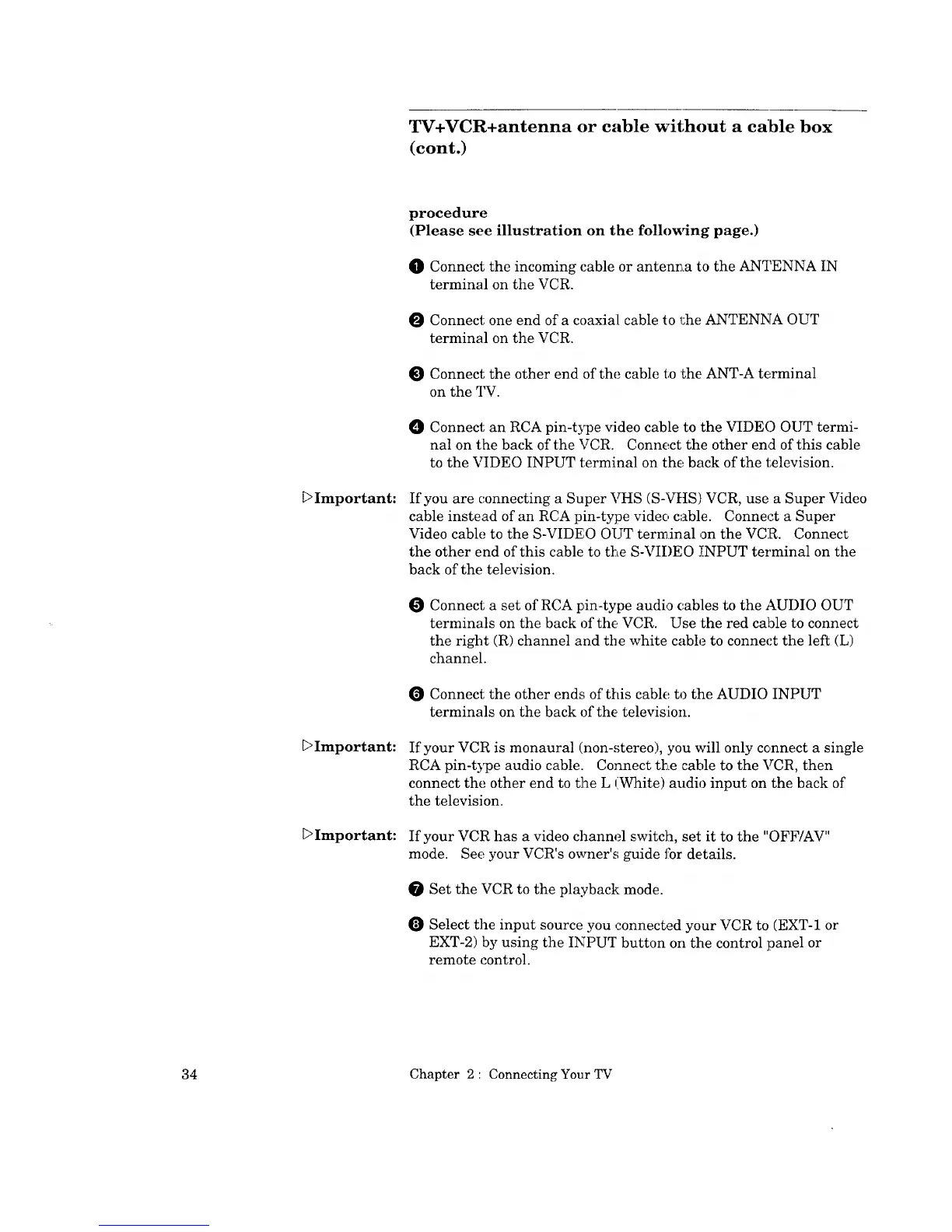

TV+VCR+antenna or cable without a cable box
(cont.)
_Important:
_Important:
_Important:
procedure
(Please see illustration on the following page.)
O Connect the incoming cable or anten_a to the ANTENNA IN
terminal on the VCR.
O Connect one end of a coaxial cable to 1:he ANTENNA OUT
terminal on the VCR.
O Connect the other end of the cable to the ANT-A terminal
on the TV.
O Connect an RCA pin-type video cable to the VIDE() OUT termi-
nal on the back of the VCR. Connect the other end of this cable
to the VIDEO INPUT terminal on the back of the television.
If you are connecting a Super VHS (S-VttS) VCR, use a Super Video
cable instead of an RCA pin-type video cable. Connect a Super
Video cable to the S-VIDEO OUT terminal on the VCR. Connect
the other end of this cable to the S-VIDEO INPUT terminal on the
back of the television.
O Connect a set of RCA pin-type audio c'ables to the AUDIO OUT
terminals on the back of the VCR. Use the red cable to connect
the right (R) channel and the white cable to connect the left (L)
channel.
0 Connect the other ends of this cable to the AUDIO INPUT
terminals on the back of the television.
If your VCR is monaural (non-stereo), you will only connect a single
RCA pin-type audio cable. Connect the cable to the VCR, then
connect the other end to the L (White) audio input on the back of
the television.
If your VCR has a video channel switch, set it to the "OFF/AV"
mode. See your VCR's owner's guide Jbr details.
Set the VCR to the playback mode.
O Select the input source you connected your VCR to (EXT-1 or
EXT-2) by using the INPUT button on the control panel or
remote control.
34 Chapter 2 : Connecting Your TV
