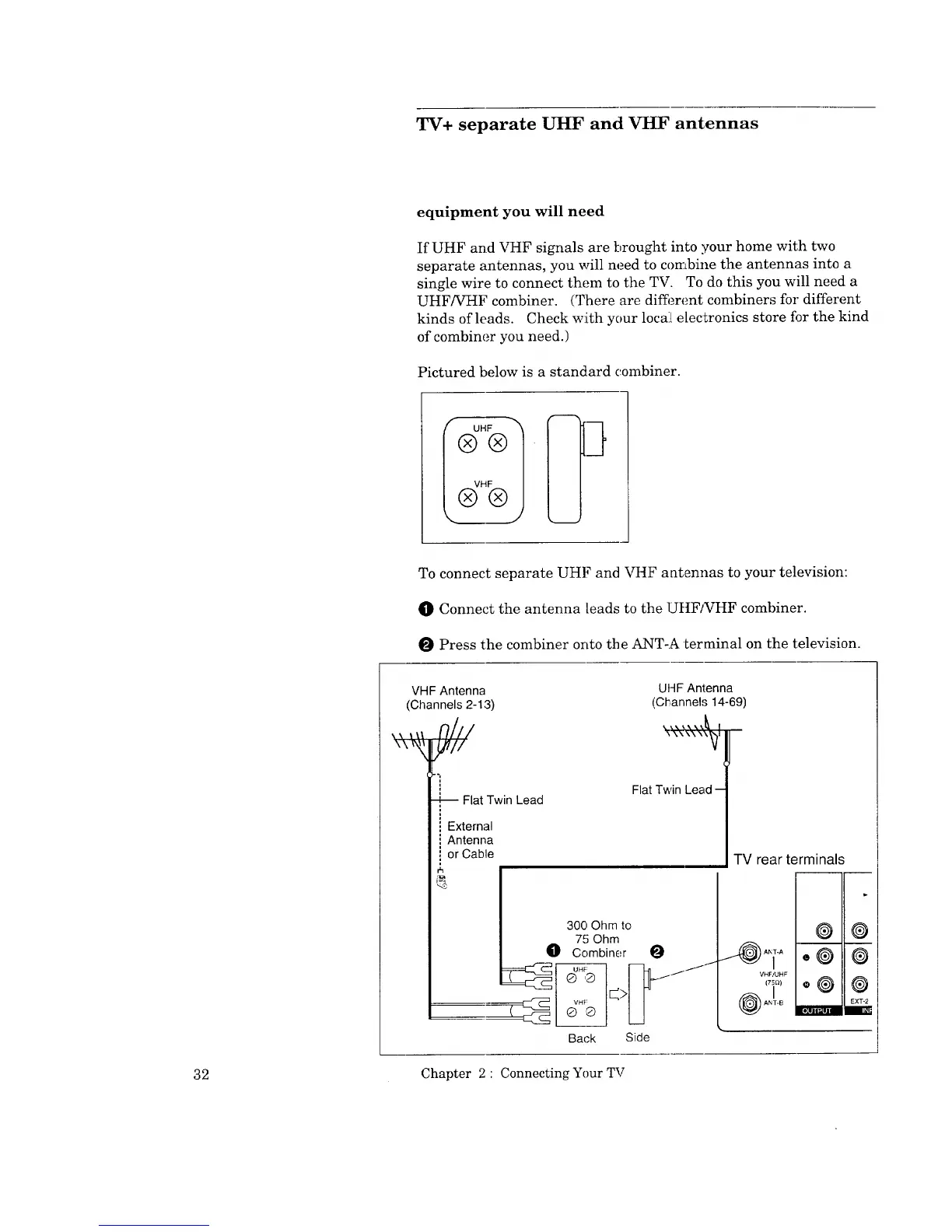

TV+ separate UHF and VHF antennas
equipment you will need
If UHF and VHF signals are brought into your home with two
separate antennas, you will need to combine the antennas into a
single wire to connect them to the TV. To do this you will need a
UHF/VHF combiner. (There are different combiners for different
kinds of leads. Check with your local[ electronics store for the kind
of combiner you need.)
Pictured below is a standard combiner.
To connect separate UHF and VHF antennas to your television:
0 Connect the antenna leads to the UHF/VHF combiner.
Press the combiner onto the ANT-A terminal on the television.
VHF Antenna UHF Antenna
(Channels 2-13) (Channels 14-69)
n/l/ -
i
-4_ Flat Twin Lead
External
Antenna
or Cable
r_
Flat Twin Lead -
300 Ohm to
75 Ohm
Combiner
Back Side
TV rear terminals
@
-A°®
VHF/UHF
(75_) O O
@ N!o
®
®
@
EXT-2
mE
32 Chapter 2 : Connecting Your TV
