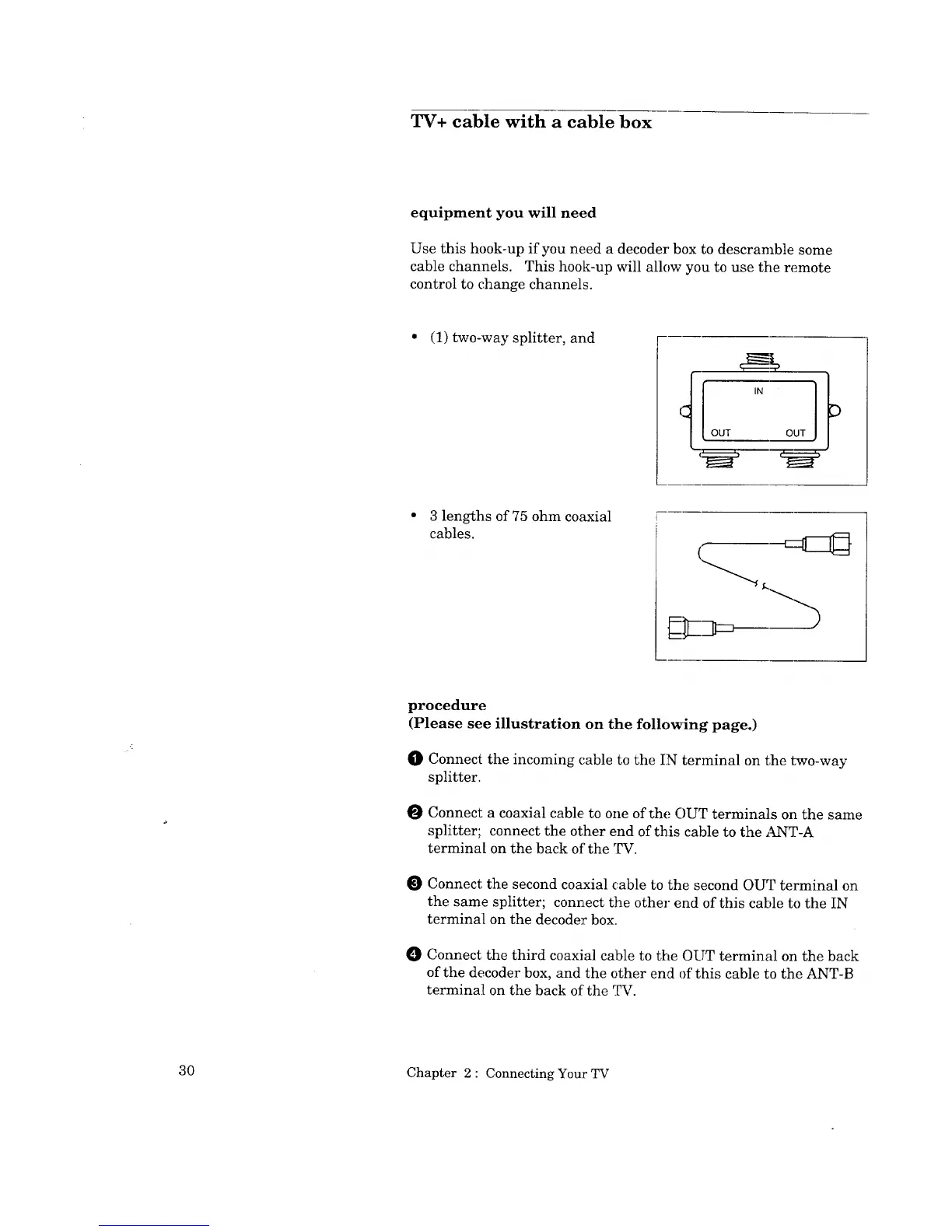

TV+ cable with a cable box
equipment you will need
Use this hook-up if you need a decoder box to descramble some
cable channels. This hook-up will allow you to use the remote
control to change channels.
(1) two-way splitter, and
3 lengths of 75 ohm coaxial
cables.
procedure
(Please see illustration on the following page.)
_]} Connect the incoming c.able to the IN terminal on the two-way
splitter.
O Connect a coaxial cable, to one of the OUT terminals on the same
splitter; connect the other end of this cable to the ANT-A
terminal on the back of the TV.
Connect the second coaxial cable to the second OUT terminal on
the same splitter; connect the other end of this cable to the IN
terminal on the decoder box.
Connect the third coaxial cable to the OUT terminal on the back
of the decoder box, and the other end of this cable to the ANT-B
terminal on the back of' the TV.
30 Chapter 2 : Connecting Your TV
