Mitsubishi DX-TL304E User Manual

40
Multiplexer function
<DX-TL308E> You can display images captured by the
connected cameras on 4-split or 9-split screen.
<DX-TL304E> You can display images captured by the
connected cameras on 4-split screen.
In addition, you can arrange the positions of the displayed
images on the screen.

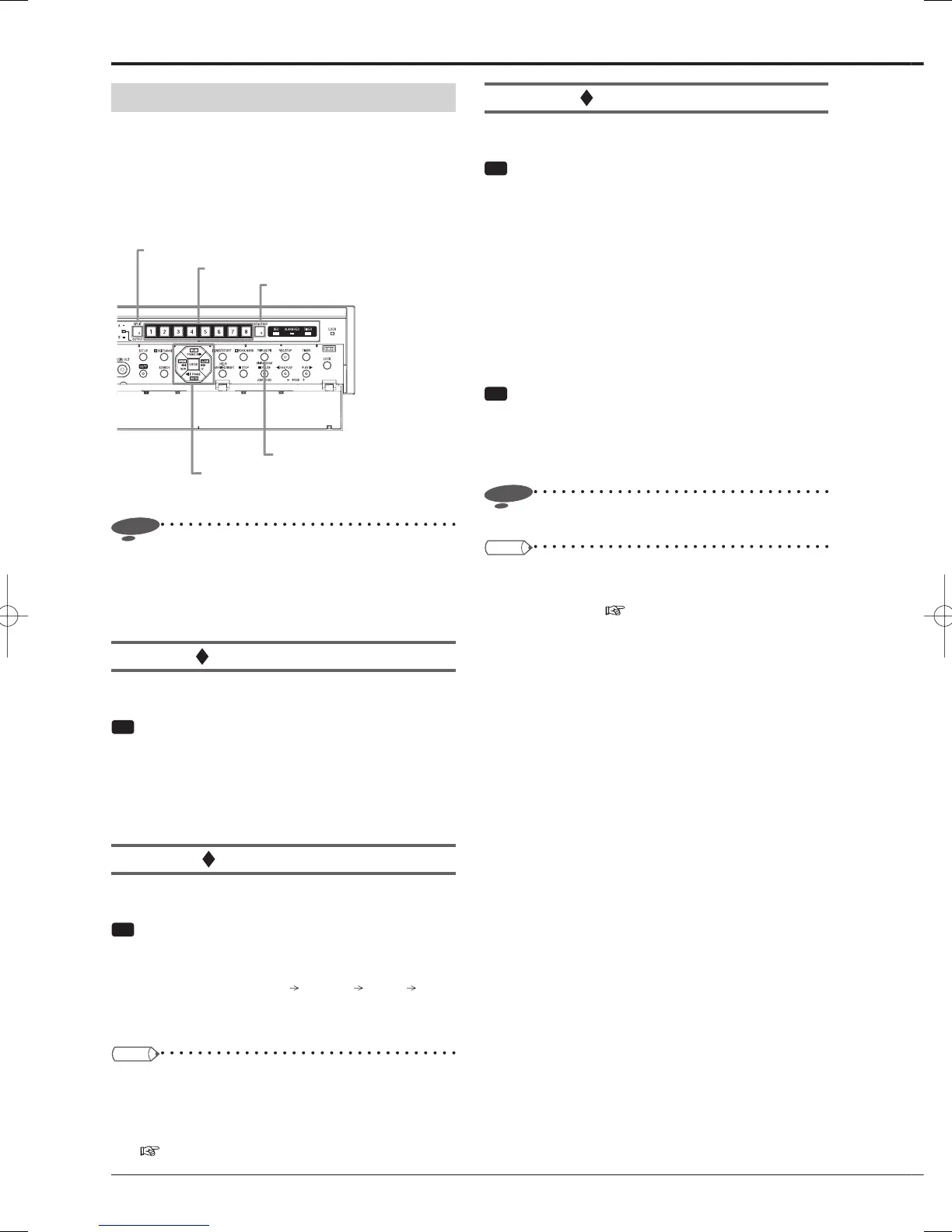

* This illustration shows an example of DX-TL308E.
Camera number buttons
DIGITAL ZOOM button
Direction buttons
SPLIT/OUTPUT A/B button
SEQUENCE button
Notice
• You cannot switch the screen mode to the other single
screen modes or split screen mode while the menu
screen is displayed. To switch the screen mode,
close the menu screen fi rst and then press a camera
number button or SPLIT button.
Single screen display
A live image captured by one camera is displayed on the
screen.
Step
1 <DX-TL308E> Press a camera number button (1
to 8).
<DX-TL304E> Press a camera number button (1
to 4).
•
The image from the camera corresponding to the
button you pressed is displayed on the entire screen.
Split screen display
Images captured by multiple cameras are displayed on the
split screen.
Step
1 Press the SPLIT button.
Every time you press the button, the screen mode
changes in the order shown below.
<DX-TL308E> 4-split a
4-split b 9-split 4-split
a ...
<DX-TL304E> 4-split
Tips
• To set the camera numbers to be displayed in each
screen mode, use <Multiplexer setting> in the
<Setup> menu. You can set the camera numbers to
be displayed differently for Output A and Output B.
(
Page 104)
Sequential display
Images captured by cameras are displayed and switched at
constant intervals.
Step
1 Press the SEQUENCE button.
•
<DX-TL308E> The sequential display starts in
the currently selected mode, split or single screen
display mode.
Sequential display mode has the following types:
Single screen sequential display
4-split sequential display
<DX-TL304E> The sequential display starts in the
single screen display mode.
Sequential display mode has the following types:
Single screen sequential display
Step
2 To cancel the sequential display, press the
SEQUENCE button again.
•
You can also cancel the sequential display by
pressing the SPLIT button or the camera number
button.
Notice
• Sequential display cannot be used during playback.
Tips
• To set the order of images to be displayed and the
switching interval, use <Multiplexer setting> in the
<Setup> menu. (
Page 104)
Viewing images captured by the cameras
