31 ± 2 N·m
23 ± 1 ft-lb
9.5 ± 2.5 N·m
85 ± 22 in-lb
35
36
37
38
39
40
41
N
N
N
AB
9.0 ± 1.0 N·m
80 ± 8 in-lb
42 ± 7 N·m
31 ± 5 ft-lb
Removal steps
<< C >>

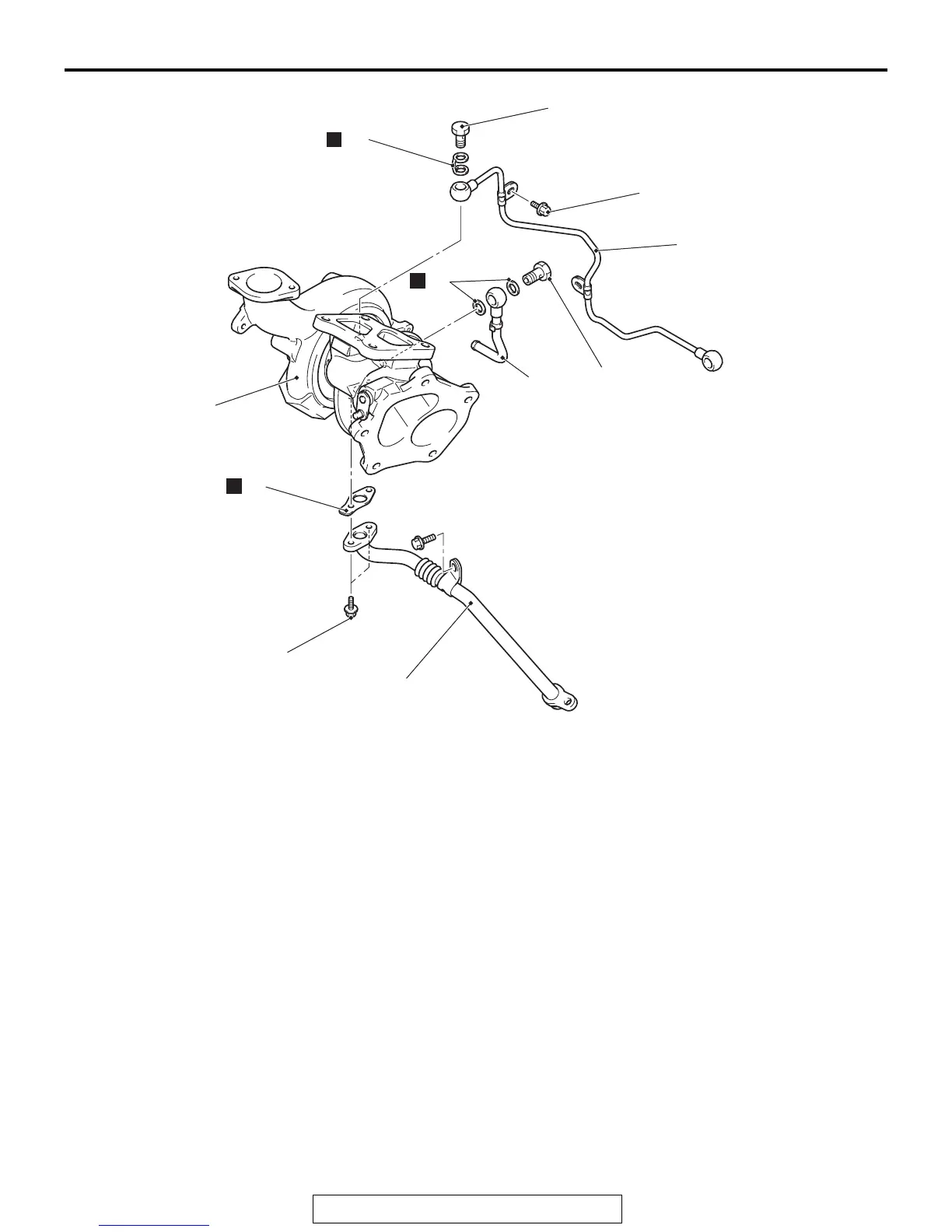

35. Turbocharger oil feed tube
36. Gasket
37. Turbocharger oil return tube
>> B <<
38. Turbocharger oil return tube
gasket
39. Turbocharger water return pipe
40. Gasket
>> A <<
41. Turbocharger
EXHAUST MANIFOLD AND TURBOCHARGER
TSB Revision
INTAKE AND EXHAUST
15-19
Required Special Tools:
• MB992274: Palm Socket
• MB991614: Angle Gauge
Removal steps (Continued)
