Mitsubishi FR-S520-0.1K to 3.7K(-R)(-C)

34

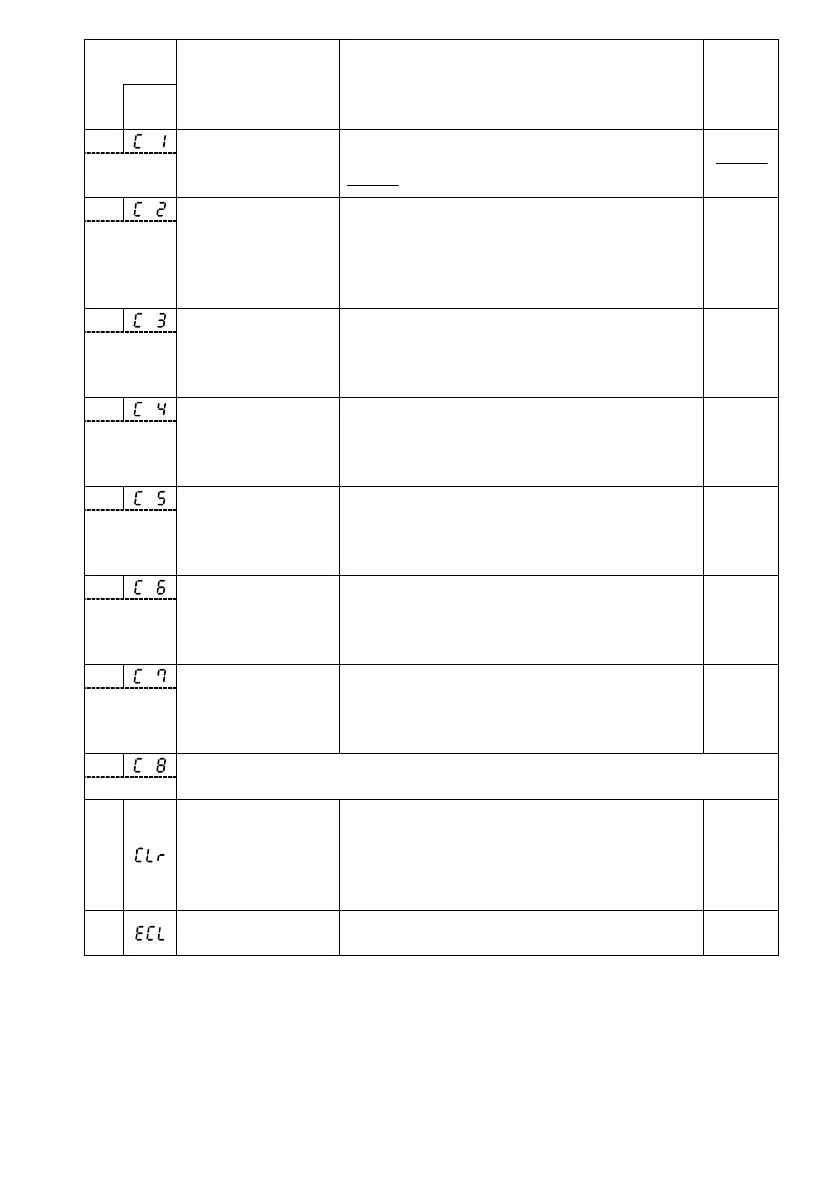

Calibration
Parameter
Indica-
tion
Name Outline
Factory
Setting
C1
(FM:900)
(AM:901)
FM (AM) terminal
calibration
You can calibrate the indicator connected to
across terminals FM-SD (AM-5).
C2
(902)
Frequency setting
voltage bias
frequency
You can set as desired the magnitude (slope)
of the output frequency to the external
frequency setting voltage signal (0 to 5V or 0
to 10V). (Bias frequency)
0 to 60Hz
0Hz
C3
(902)
Frequency setting
voltage bias
Used to adjust the analog-to-digital converted
voltage value of the frequency set in
calibration parameter C4. (Bias %)
0 to 300%
0%*
C4
(903)
Frequency setting
voltage gain
Used to adjust the analog-to-digital converted
voltage value of the frequency set in Pr. 38.
(Gain %)
0 to 300%
96%*
C5
(904)
Frequency setting
current bias
frequency
You can set as desired the magnitude (slope)
of the output frequency to the external
frequency setting current signal (4 to 20mA).
0 to 60Hz
0Hz
C6
(904)
Frequency setting
current bias
Used to adjust the analog-to-digital converted
voltage value of the frequency set in
calibration parameter C5. (Bias %)
0 to 300%
20%*
C7
(905)
Frequency setting
current gain
Used to adjust the analog-to-digital converted
voltage value of the frequency set in Pr. 39.
(Gain %)
0 to 300%
100%*
C8
(269)
Parameter for manufacturer setting. Do not set.
CLr
Parameter clear
0: Not executed
1: Initialization of parameters other than
calibration values (parameter clear)
10: Initialization of parameters including
calibration values (all clear)
0
ECL
Alarm history clear
0: Not cleared
1: Alarm history clear
0
*Settings may differ because of calibration parameters.
