Operation Manual Mitsubishi
SL-Series diesel engines
Version 08/2004
NOMENCLATURE
ENGLISH
4
NOMENCLA
TURE
4.1

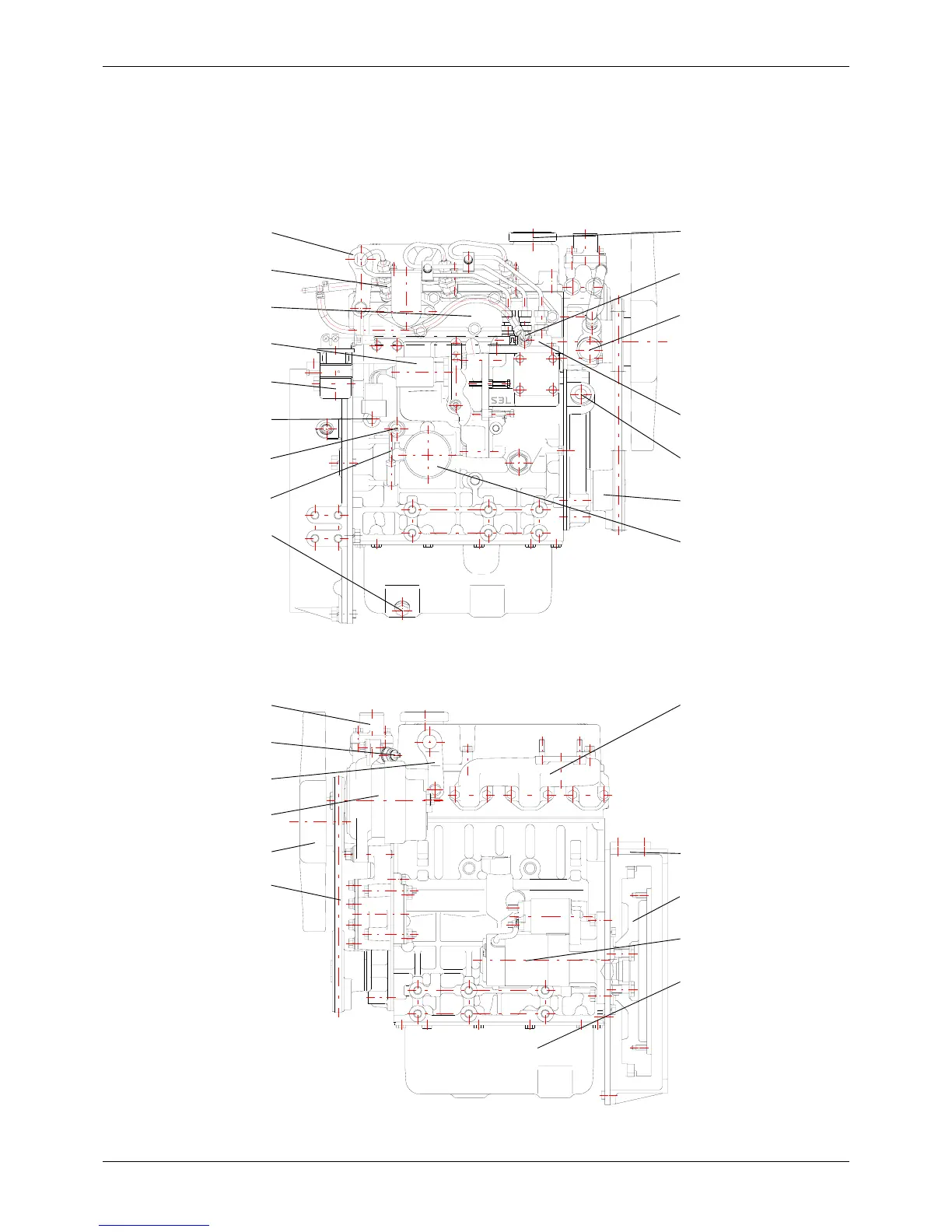

Engine S3L/S3L2
Air vent screw
W
ater pump
RIGHT SIDE VIEW
Fuel injection nozzle
Air inlet cover
Coolant drain
plug
Dipstick
REAR
LEFT SIDE
VIEW
REAR
FRONT
Thermostat
Hanger
Alternator
Fan
V-
b
e
l
t
Oil pan
Exhaust manifold
Flywheel
Fuel injection pump
Crankshaf
t pulley
FRONT
Oil filter
Oil filler
Oil filler
Hanger
S
top soleno
id
Fuel filter
Oil pressure switch
Oil drain plug
Thermoswitch
St
a
r
te
r
Flywheel housing
16
18
Table of Contents
Table of Contents
3
Default Chapter
2
Recommendation of Daily Operation Records
2
ENGLISH Operation Manual Mitsubishi SL-Series Diesel Engines
4
1 Safety
5
Preventing Fire and Explosions
5
Prevent Burns
6
Lifting Precautions
7
Exhaust Fumes
7
Prevention of Cuts and Other Injuries
7
Maintenance Precautions
9
Operating Precaution
10
Maintenance Precautions
12
If any Trouble Should Occur
13
2 Important Information
14
Operating the Engine Properly
14
Service the Engine Properly
14
If any Trouble Should Occur
15
3 Specifications
16
4 Nomenclature
17
Engine S3L/S3L2
17
Engine S3L-T/S3L2-T
18
Engine S4L/S4L2
19
Engine S4L-T/S4L2-T
20
5 Operation
21
Pre-Start Inspection
21
5.1.1 Walk-Around Inspection
21
5.1.2 Check Engine Oil Level
21
[Pre-Start Inspection] Check Fuel Level
21
Check Coolant Level
21
Starting the Engine
22
Warming up the Engine
23
Starting the Load
23
Stopping the Engine
23
Maintenance 6 Maintenance
25
6 Maintenance
25
Every 50 Service Hours
26
Drain Water and Sediment from the Fuel Tank and Water Separator
26
Check the Battery Electrolyte Level and Specific Gravity
26
Every 100 Service Hours
27
Every 250 Service Hours or Once a Year
27
Change Engine Oil See SPECIFICATIONS (Page 16)
27
Every 100 Service Clean Fuel Filter Element after Cleaning, Prime (Page 31)
27
Hours Clean Radiator Fins
27
Every 250 Service Change Engine Oil See SPECIFICATIONS (Page 16)
27
Every 500 Service Hours
28
Change Fuel Filter Element after Changing, Prime (Page 31)
28
Every 500 Service
28
Check and Adjust Fan Belt Deflection: 13 MM (0.5 In.)
28
Every 1000 Service Hours
29
Every 2 Years
29
Every 1000 Service Check Starter
29
Hours Check Alternator
29
Every 2 Years Change Coolant See SPECIFICATIONS (Page 16)
29
Operation Manual Mitsubishi SL-Series Diesel Engines ENGLISH
29
When Required
31
7 Fuel Specifications
33
Recommended Types of Fuels
33
Caring for the Diesel Fuel Tank
33
Caring for the Fuel Supply
33
8 Lubricant Specifications
34
Recommended Types of Engine Oils
34
Recommended Oil Viscosities
34
Limiting Requirements for Engine Oils
35
9 Coolant and Antifreeze Specifications
36
Coolant Specifications
36
Recommended Types of Llc's (Long Life Coolant)
36
Operation Manual Mitsubishi SL-Series Diesel Engines ENGLISH
37
How to Use Non-Amine Type LLC
37
Why LLC
37
How LLC Works
37
Practical Reported Cases of Circuit Trouble for Which Additive Is Blamed
38
10 Storage
39
Storage of the Engine in a Non-Operational Condition
39
Storage of the Engine in an Operational Condition
39
11 Troubleshooting
40
11.1 General
40
11.2 Problems
41
12 Additional Information
44
