Operation Manual Mitsubishi SL-Series diesel engines
Version 08/2004
NOMENCLATURE
ENGLISH
4 NOMENCLATURE

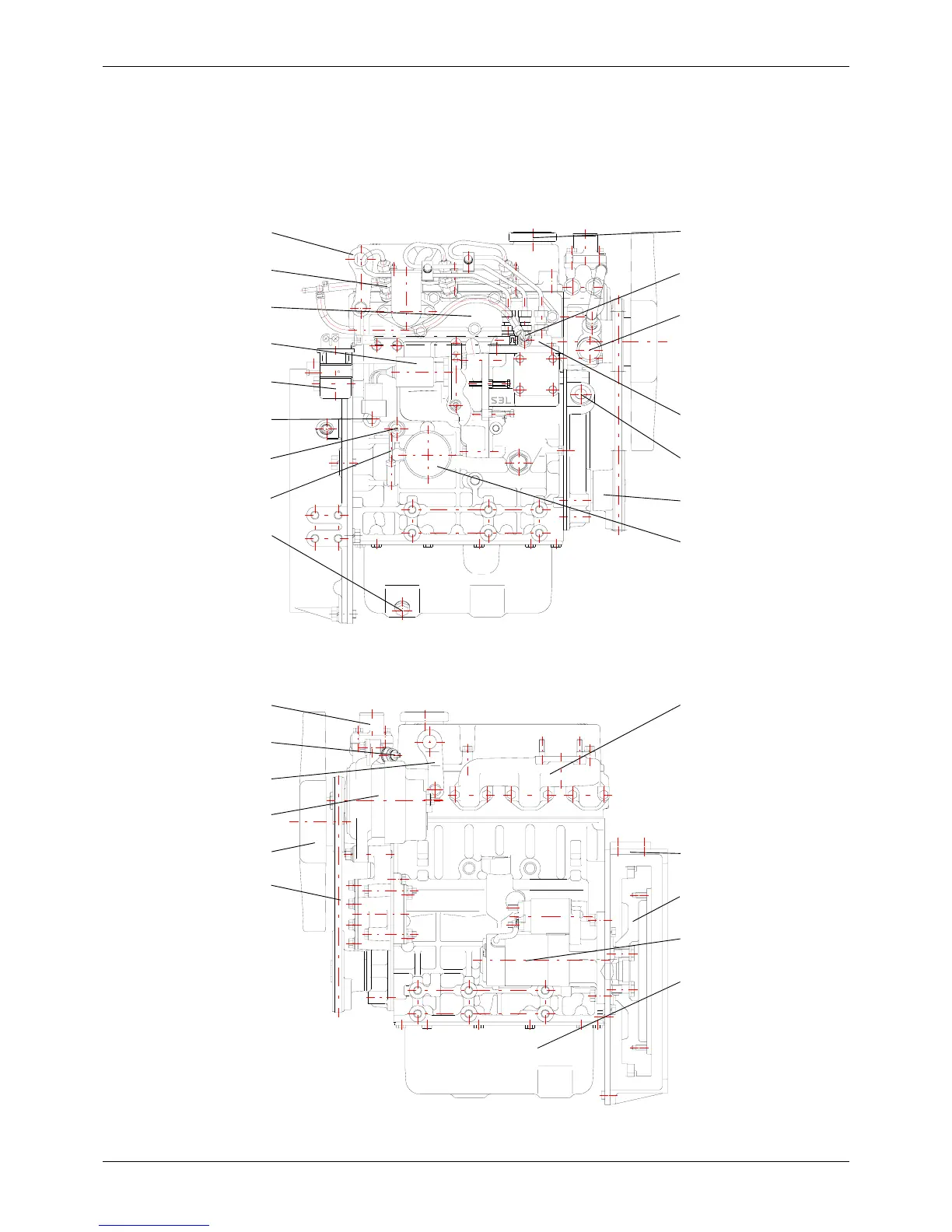

4.1 Engine S3L/S3L2
Air vent screw
Water pump
RIGHT SIDE VIEW
Fuel injection nozzle
Air inlet cover
Coolant drain plug
Dipstick
REAR
LEFT SIDE VIEW
REAR
FRONT
Thermostat
Hanger
Alternator
Fan
V-belt
Oil pan
Exhaust manifold
Flywheel
Fuel injection pump
Crankshaft pulley
FRONT
Oil filter
Oil filler
Oil filler
Hanger
Stop solenoid
Fuel filter
Oil pressure switch
Oil drain plug
Thermoswitch
Starter
Flywheel housing
