3-3

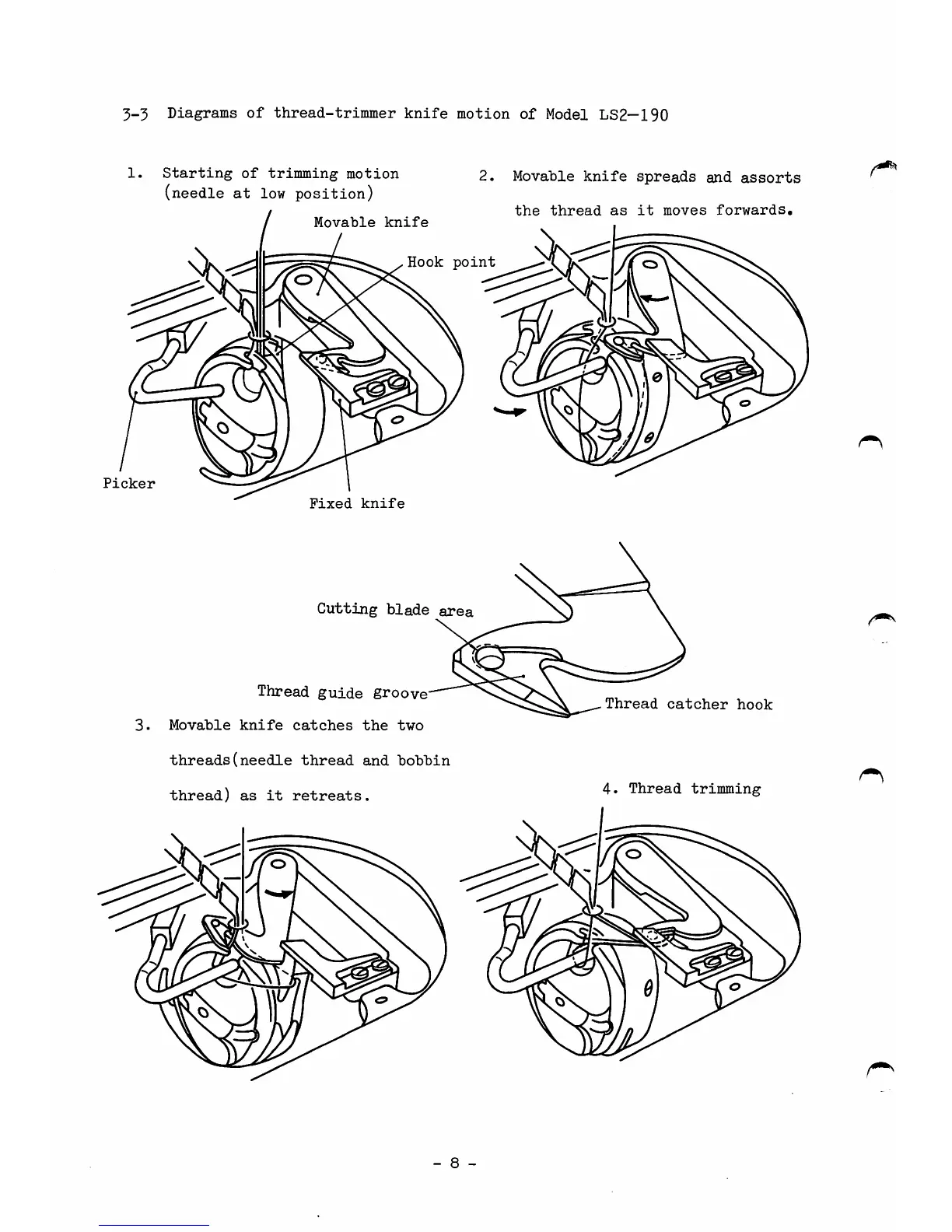

Diagrams
of
thread-trimmer
knife
motion
of
Model
LS2—190
1.
Starting
of
trimming
motion
(needle
at
low
position)
Movable
knife
2.
Movable
knife
spreads
and
assorts
the
thread
as
it
moves
forwards.
Hook
point
Picker
3.
Fixed
knife
Cutting
blade
area
Thread
guide
groove
Movable
knife
catches
the
two
threads(needle
thread
and
bobbin
thread)
as
it
retreats.
- 8 -
Thread
catcher
hook
4.
Thread
trimming
