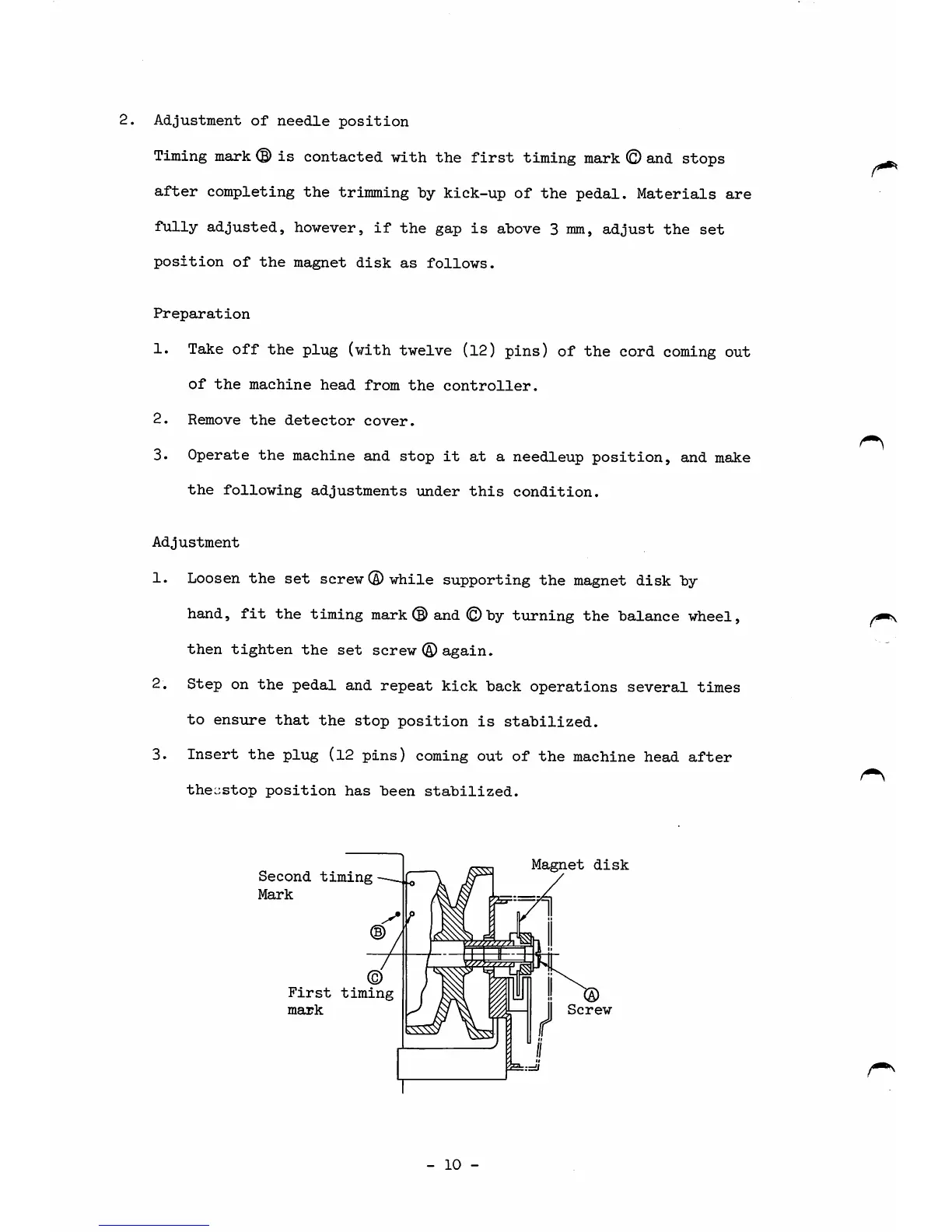

2. Adjustment of needle position
Timing mark0 is contacted with the first timing mark © and stops
after completing the trimming hy kick-up of the pedal. Materials are
fully adjusted, however, if the gap is above 3 mm, adjust the set
position of the magnet disk as follows.
Preparation
1. Take off the plug (with twelve (12) pins) of the cord coming out
of the machine head from the controller.
2. Remove the detector cover.
3. Operate the machine and stop it at a needleup position, and make
the following adjustments under this condition.
Adjustment
1. Loosen the set screw (5) while supporting the magnet disk hy
hand, fit the timing mark® and ©by turning the balance wheel,
then tighten the set screw ® again.
2. Step on the pedal and repeat kick back operations several times
to ensure that the stop position is stabilized.
3. Insert the plug (l2 pins) coming out of the machine head after
the^stop position has been stabilized.
Second timing
Mark
©
First timing
mark
- 10 -
Magnet disk
Screw
