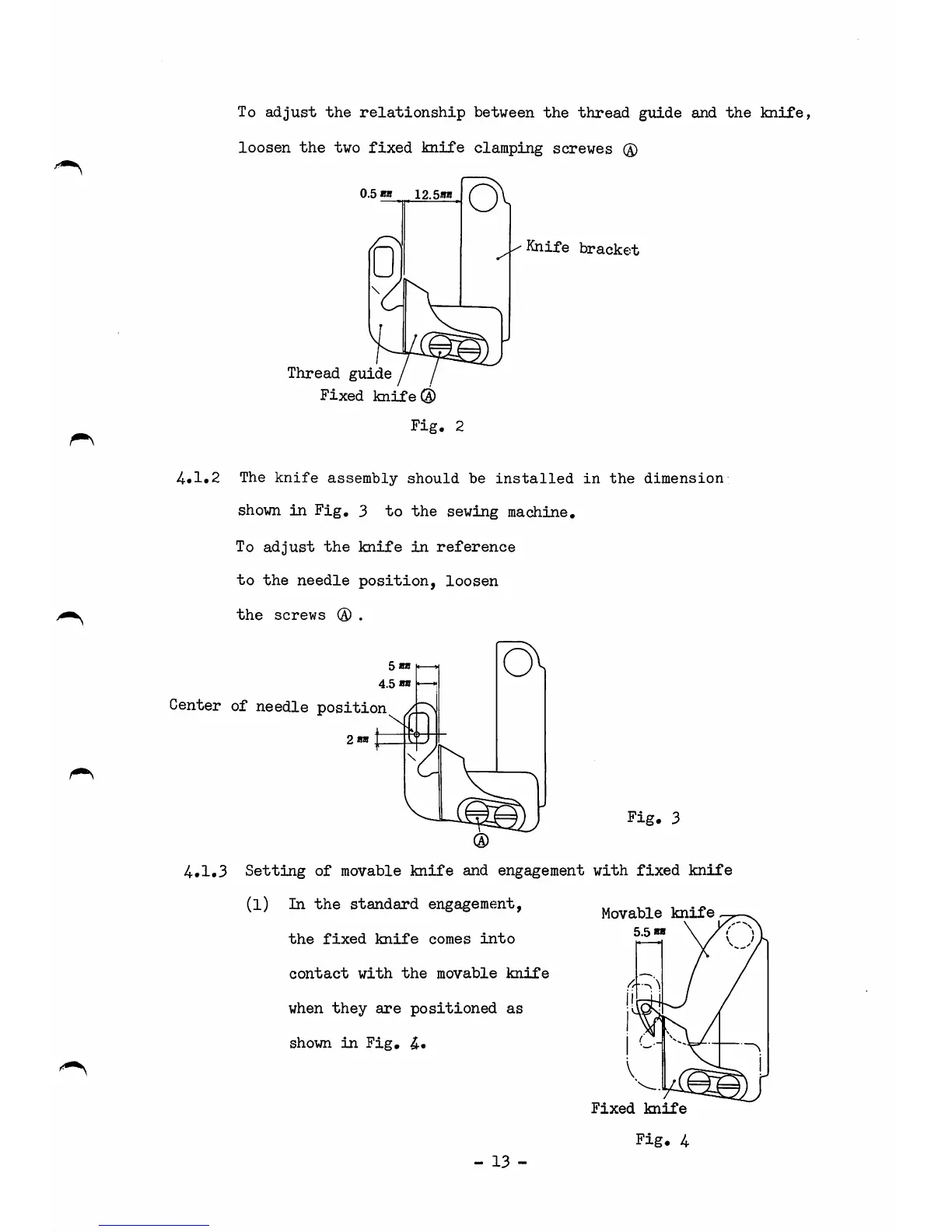

To adjust the relationship between the thread guide and the knife,
loosen the two fixed knife clamping screwes 0
0.5 MI 12.5m
Thread guide
Fixed knife ®
Fig. 2
4..1,2 The knife assembly should be installed in the dimension
shown in Fig, 3 to the sewing machine.
To adjust the knife in reference
to the needle position, loosen
the screws ® .
Center of needle position
2 m
Knife bracket
Fig, 3
4#1,3 Setting of movable knife and engagement with fixed knife
(l) In the standard engagement,
the fixed knife comes into
contact with the movable knife
when they are positioned as
shown in Fig, 4-«
- 13 -
Movable knife
Fixed knife
Fig, 4
