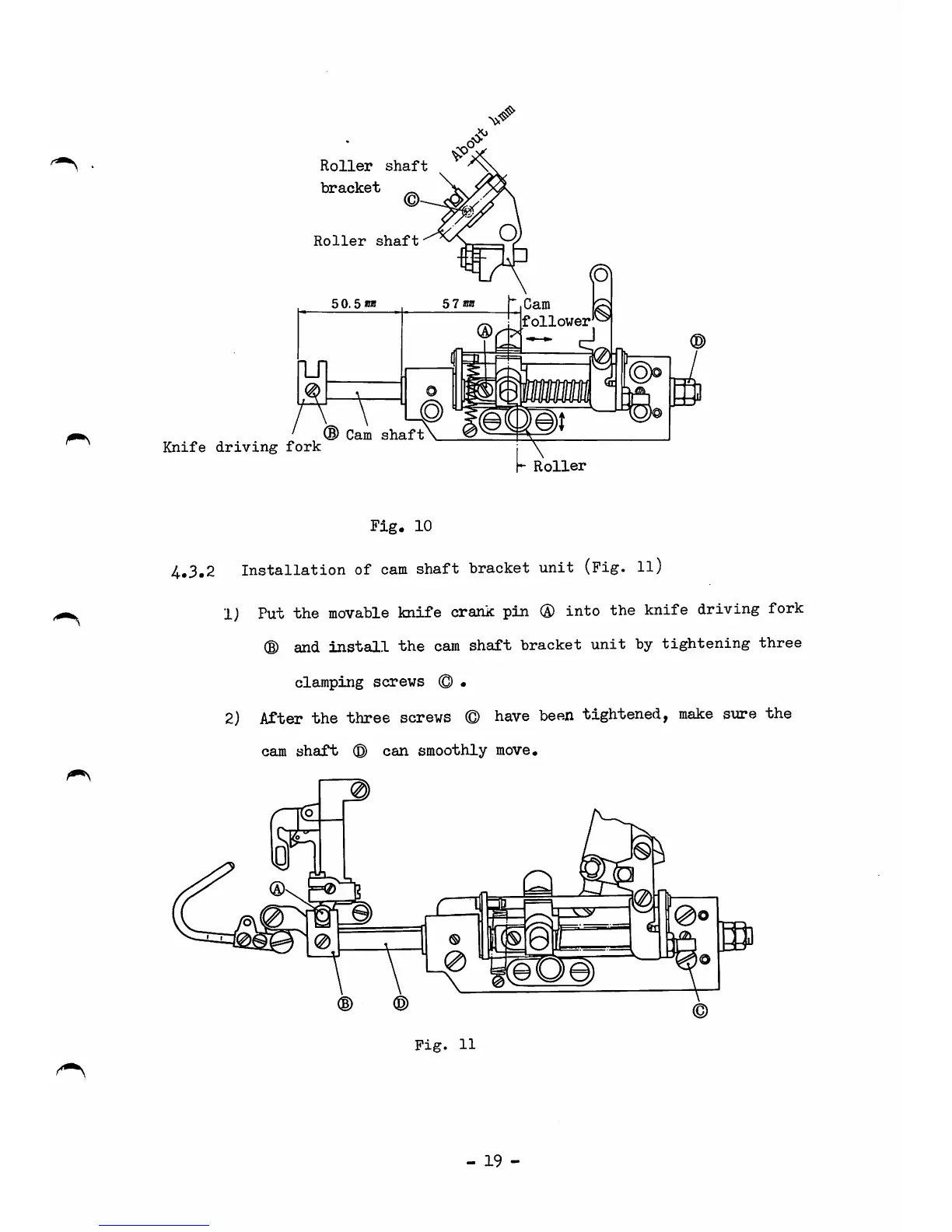

Roller shaft
bracket
Roller shaft
5 0.5
Knife driving fork
57m pCam
follower
Fig. 10
4..3.2 Installation of cam shaft bracket unit (Pig. 11)
1^ Put the movable knife crank pin ® into the knife driving fork
(B and install the cam shaft bracket unit by tightening three
clamping screws © •
2) After the three screws © have been tightened, make sure the
cam shaft © can smoothly move.
0
0
©) ®
Fig. 11
- 19 -
