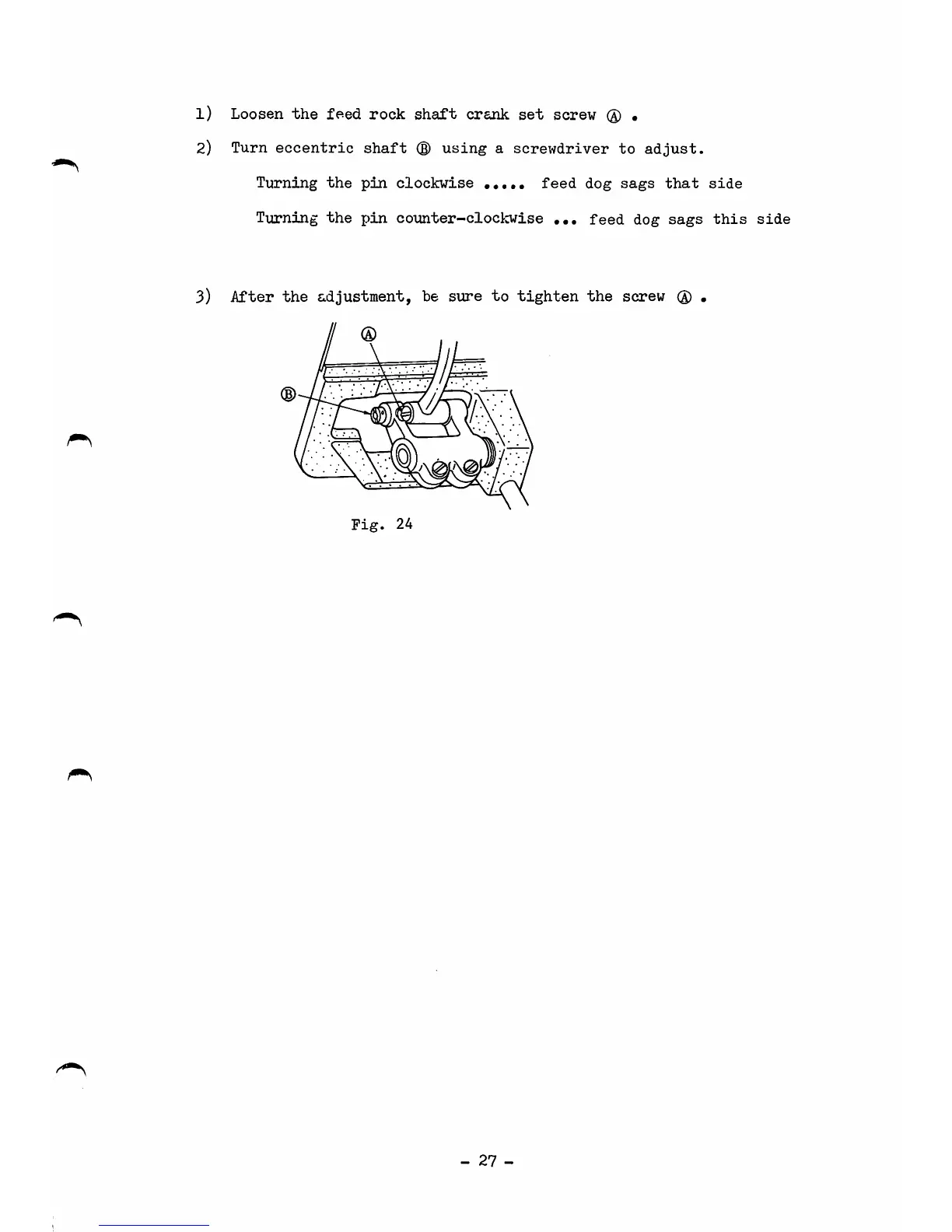

1) Loosen the feed rock shaft crank set screw ® •
2) Turn eccentric shaft d) using a screwdriver to adjust.
Turning the pin clockwise feed dog sags that side
Turning the pin coimter-cloclcwise ... feed dog sags this side
3) After the adjustment, be sure to tighten the screw (g) •
Fig. 24
- 27 -
