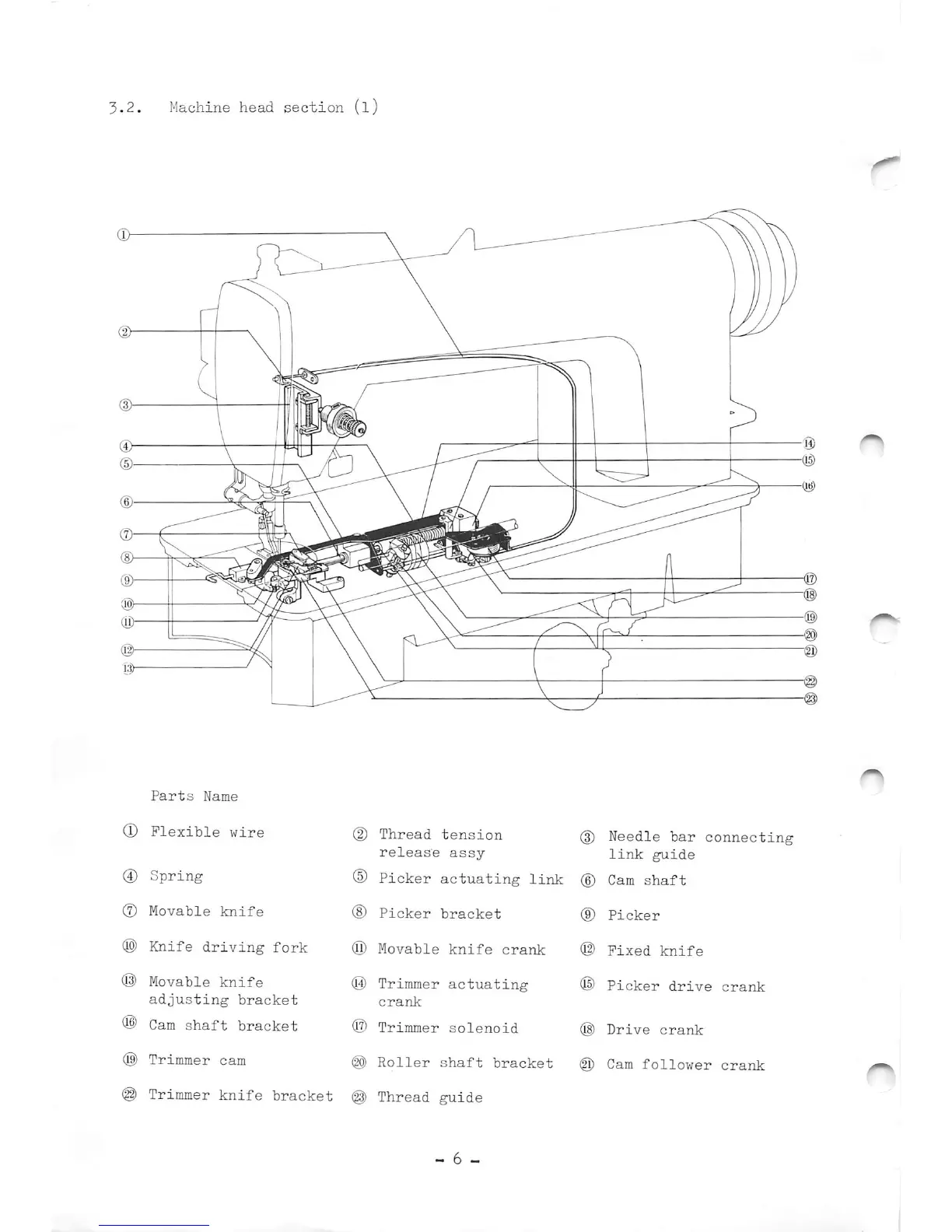

3.2. Machine head section (l)
I
Parts Name
d) Flexible wire
Thread tension
release assy
Needle bar connecting
link guide
® Spring
® Movable knife
Picker actuating link (6) Cam shaft
Picker bracket
Knife driving fork @ Movable knife crank
Movable knife
adjusting bracket
Cam shaft bracket
Trimmer cam
Trimmer knife bracket
® Trimmer actuating
crank
® Trimmer solenoid
@) Roller shaft bracket
@ Thread guide
(D Picker
Fixed knife
Picker drive crank
Drive crank
Cam follower crank
