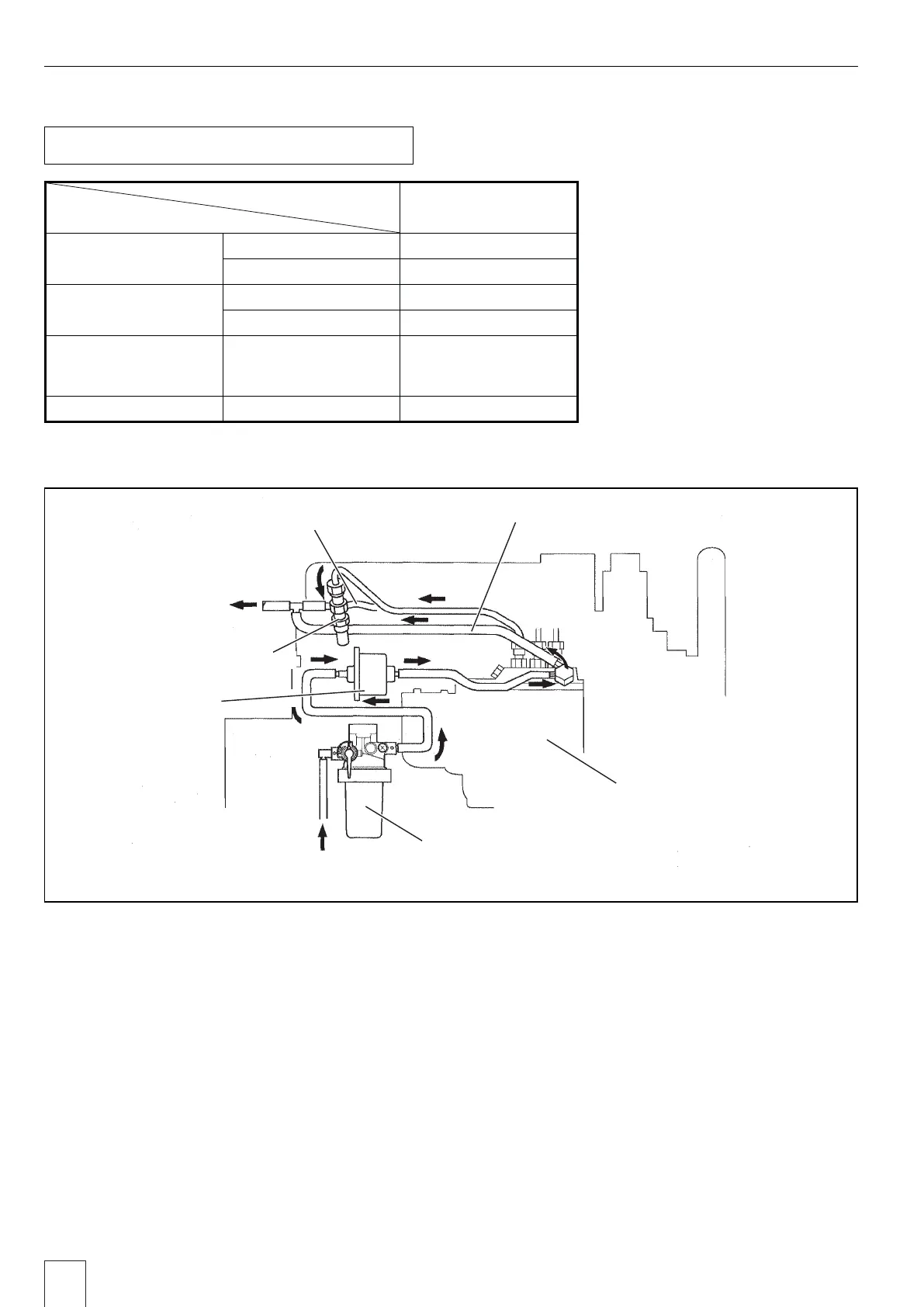

MECHANICAL STRUCTURE
1-4 Fuel system
1. Specification
Model
S3L3L
Item
Injection Pump
Type Bosch,PFR type
Diameter of Planger ij6.0mm
Injection Nozzle
Type
Throttle type
Injection Pressure 14.7 MPa
Fuel Filter Type
Paper- element
cartridge separate
type
Fuel Pump Type Electric(diaphragm)
Fuel leak-off pipe
To fual tank
Fuel injection nozzle
Fuel pump
From fuel tank
Fuel ¿ lter
Fuel injection pump
Fuel injection pipe
