MECHANICAL STRUCTURE
82±0.05
Y
X
”Z”
”Z”
Packing
Packing
5. REAR AXLE, BRAKE, DEFERENTIAL LOCK

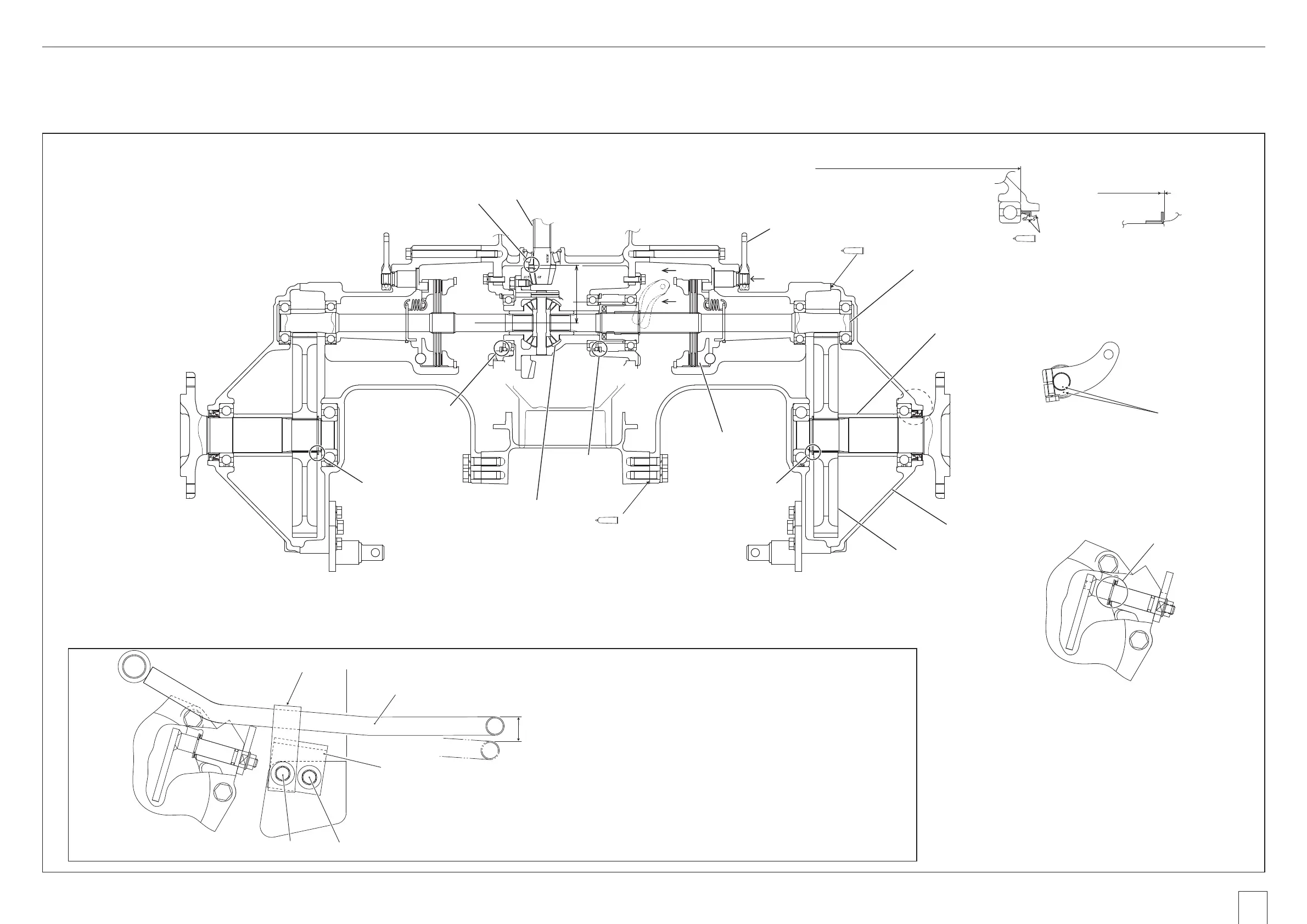

5-1 Rear Axle Structure
The rear axle adopts a pedal-operated ball lock. Type differential lock The brake is a large wet disc brake.
DETAIL
X
Shaft side
1mm {0.039in}
Grease
Case side
Press fit to flush oil seal end and bearing side face.
Match mark
VIEW FROM AROW
Y
Liner"D"
Z to Z
Differential lock pedal
Plate A
Bolt A
Plate B
16 to 23 mm
{0.63 to 0.91 in}
Bolt B
Differential Shaft
Differential Case
Rear Axle
Axle Cover
Final Gear
Brake Ass'y
Brake Arm
Pinion Shaft
Adjustment of Differential Lock Pedal
1) Step on the pedal and touch the pedal to the plate "A". Tighten the bolt "A".
2) Release the pedal and touch to the plate "B". Tighten the bolt "B".
3) Make sure ON and OFF for the differential lock.
11T
95T
35T
6T
11T
95T
Liner"A"
Liner"B"
Liner"C"
Liner"E"
Liner"E"
65
