53
MECHANICAL STRUCTURE

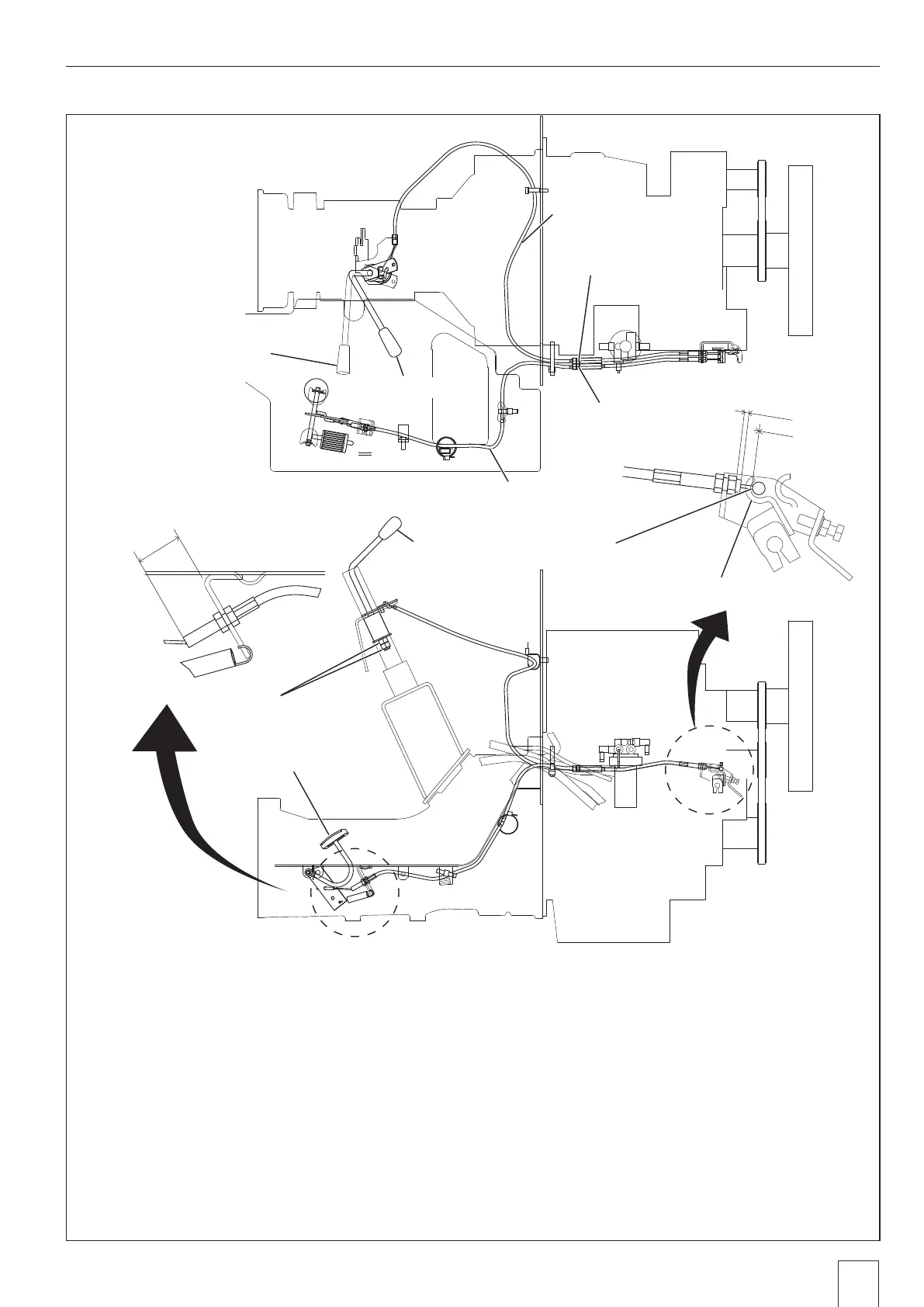

2-5 Engine control
3
0
m
m
1
~
3 mm
0mm
[Adjustment]
1. Adjust the operation force at edge of the Throttle lever to be 29.4 to 78.4 N {3 to 8 kgf , 32.5 to 57.8 lbf } tip using
the nut and lock it.
2. Pull the throttle lever to the high-speed side and adjust by the adjuster “A“ for the wire to have the clearance
between governor lever and wire ball to be 0mm {0in}.
3. Step on the foot pedal. Adjust by the adjuster “B“ for the wire to have the clearance between governor lever and
wire ball to be 0mm .
4. When returning the both accelerator lever and foot pedal to the lower idle side, make sure the governor lever makes
a contact with the low idle stopper.
5. Engine rpm at Low idle and High idle
Low Idle : 995 ± 25 rpm
High Idle : 2810 ± 25 rpm
Low idle
Wire
High idle
Wire
Adjuster"A"
Adjuster"B"
Throttle Lever
Wire Ball
Governor Lever
Foot Pedal
Nut
To Next Page
