MECHANICAL STRUCTURE

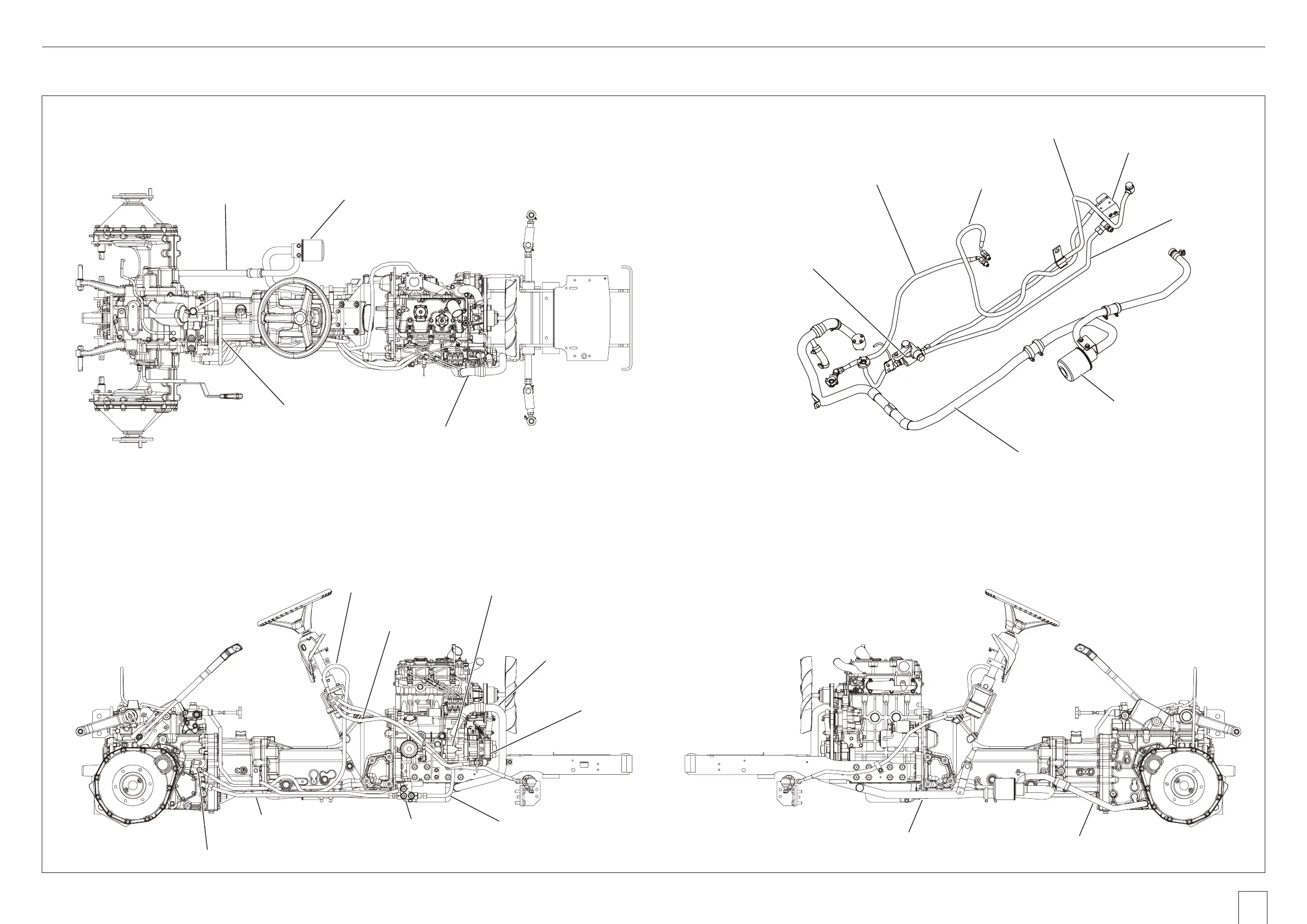

7-3 Hydraulic Pipe, Hydraulic Devices Location Chart
Suction Pipe
Oil Filter
Oil Filter
Suction Pipe
Pressure Pipe
Hose C
Hose C
Hose A
Hose A
Pump 1 (For Lift)
Suction Pipe
Suction Pipe
Suction Pipe
Suction Pipe
Pump 2 (For Power Steering)
Pressure Pipe
Pressure Pipe
Block Ass'y
Block Ass'y
Return Pipe
Return Pipe
Block
Block
79
