Mitsubishi Mahindra GX3600 User Manual

83
MECHANICAL STRUCTURE

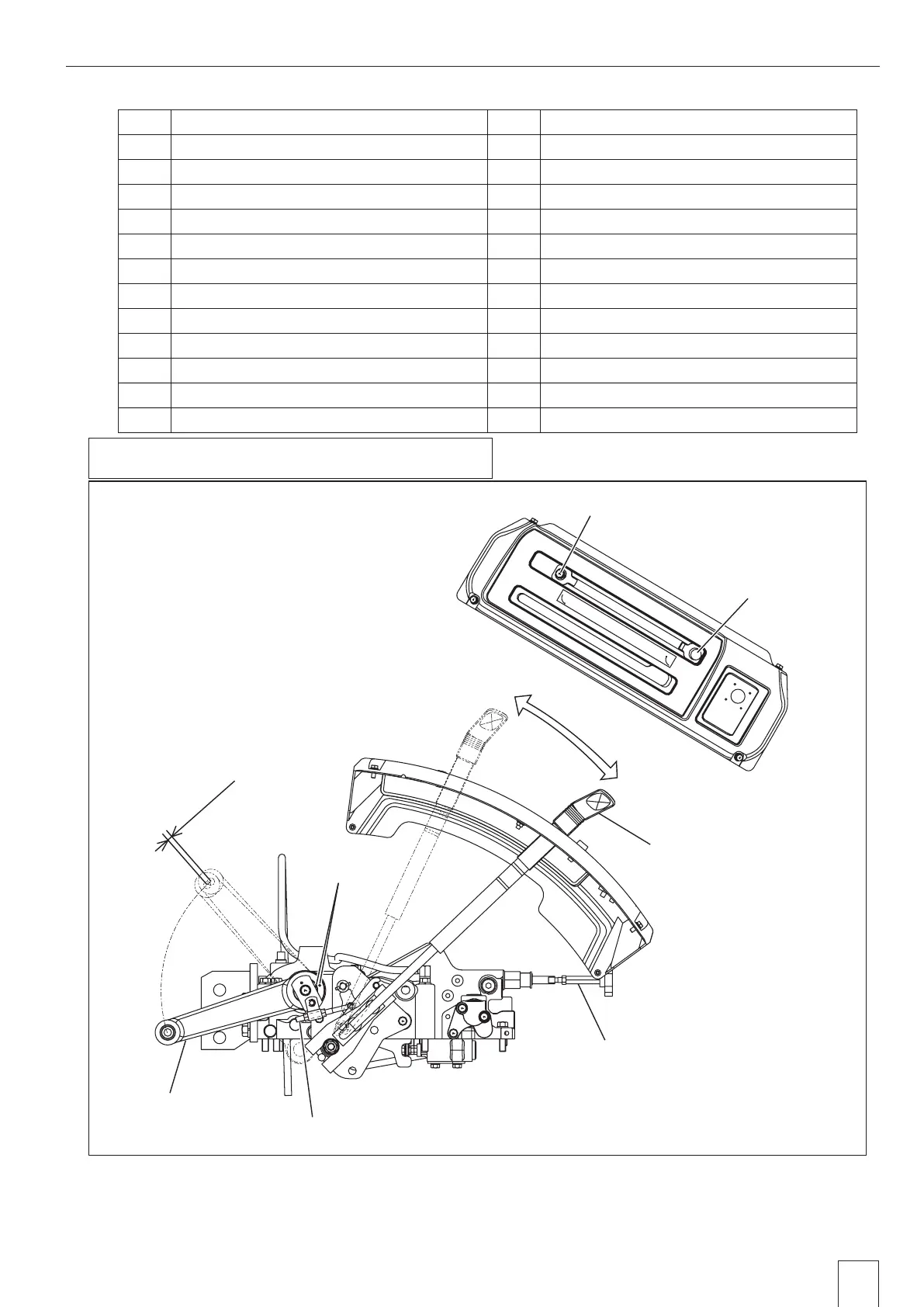

2 P/C System (Position Control)
No. No.
1 Knob 2 Nut
3Spring Pin 4Screw
5Ring 6Washer
7 Spring 8 Sleeve
9 O-ring 10 O-ring
11 O-ring 12 Ball
13 Spring 14 Lift Arm
15 Pin 16 Screw
17 Power Arm 18 Piston Rod
19 Bush 20 Piston
21 O-rin
23 Lift Shaft
g22Ring
7
7
7
7
7
7
Flow control valve
Lift arm
Adjuster
Stopper A
PC lever
Stopper B
Punch mark
5 - 10mm {0.197 - 0.591in}
Upper limit
Lower limit
GZ3W31-011
Parts Parts
PC lever
Stopper A
Stopper B
Flow control valve
Punch mark
Lift arm
Adjuster
Upper limit
Lower limit
2. P/C System (Position Control)
5-10mm
