Mitsubishi MELSEC A1SY42 User Manual

PROGRAMMING I

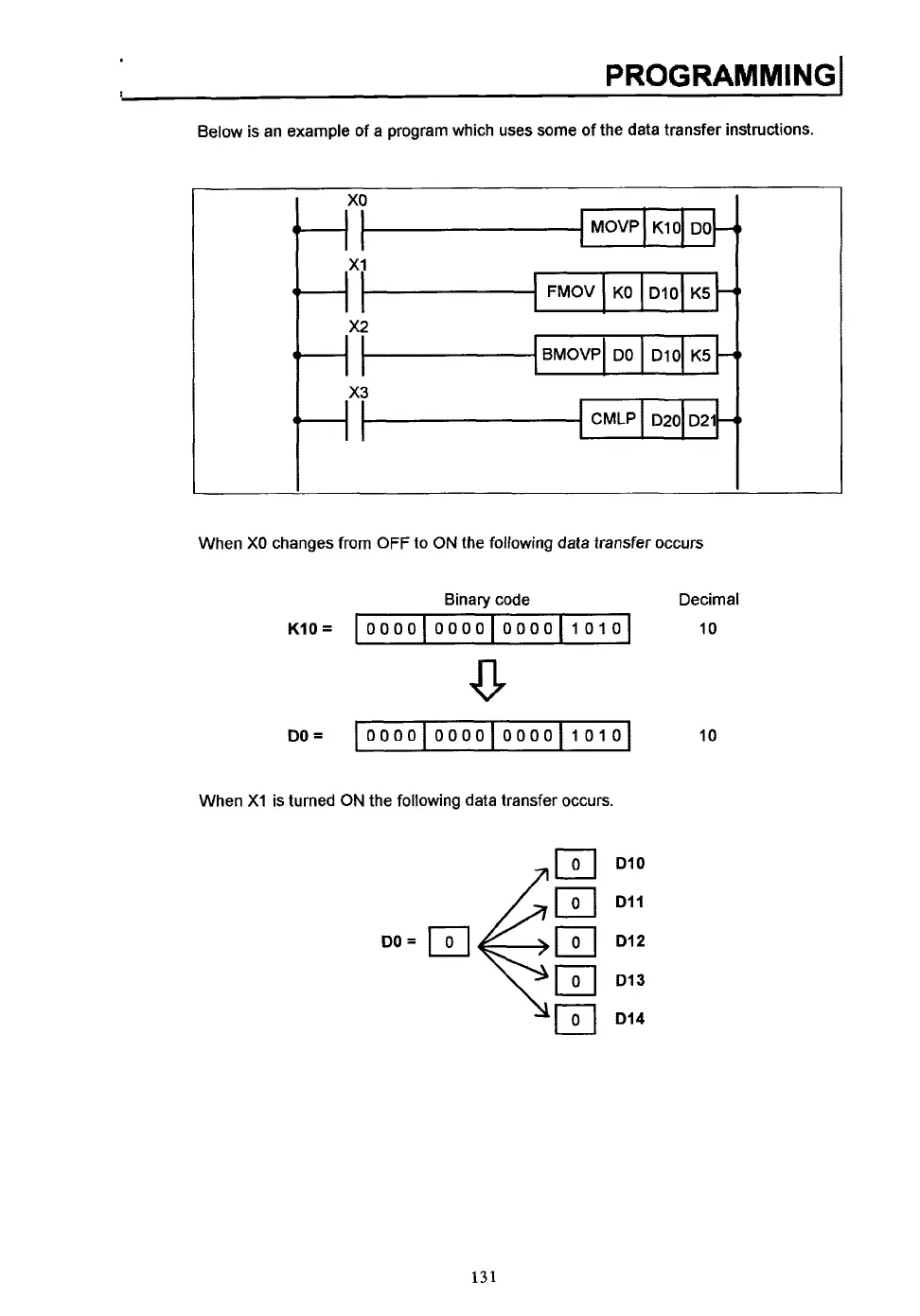

Below is an example of a program which uses some of the data transfer instructions.
When
XO changes from OFF to ON the following data transfer occurs
Binary code
Deci m a
I
10
KIO=
I 0000 I 0000 I 0000 I 10 10 I
lhen
DO= 0000~0000 0000/1010
:I is turned ON the following data transfer occurs.
DO= 101
101
DII
101 Dl2
10
131

Mitsubishi MELSEC A1SY42 Specifications

General

Category	Controller
Rated Load Voltage	24 V DC
Product Name	MELSEC
Type	Output Module
Rated Load Current	0.1A per point
Maximum Load Current	2 A
OFF Leakage Current	0.1mA
ON Voltage Drop	1.5 V
Output Type	Transistor (Sink)
External Wiring Connection Method	Connector
Weight	0.2kg
