Mitsubishi MSH-18RV User Manual

68

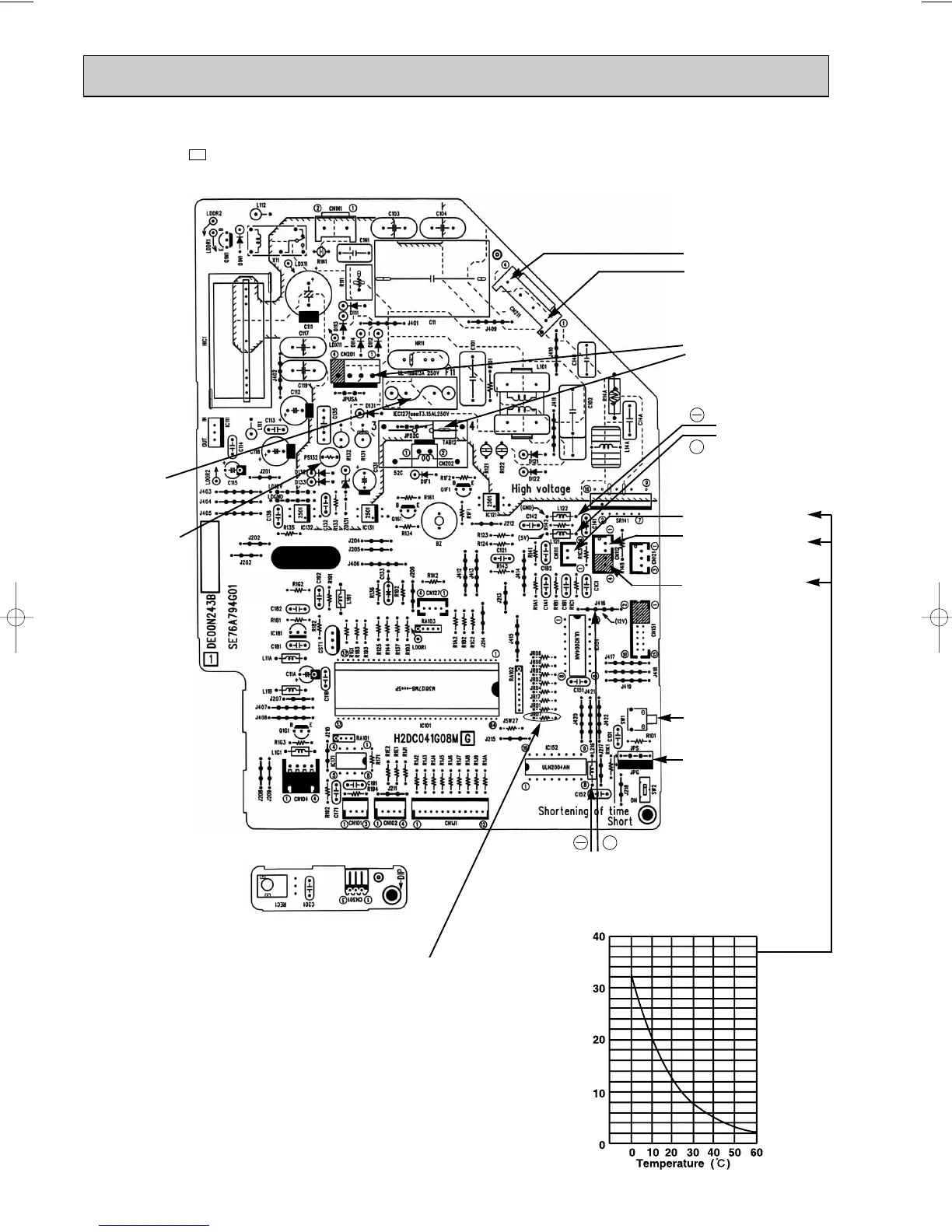

TEST POINT DIAGRAM AND VOLTAGE
MSH-30RV -
Indoor electronic control P.C. board
E1
Fan motor power supply
Fuse (F11)
250V AC 3.15A
}
Power supply input
220-240V AC
+
}
5V DC
Indoor coil
thermistor(RT12(main))
Timer short mode point
(JPS, JPG)
(Refer to page 50.)
Emergency operation
switch
+
}
12V DC
Indoor coil thermistor(RT12(main), RT13(sub))
Room temperature thermistor (RT11)
Resistance(k")
Room temperature
thermistor(RT11)
How to set “Auto restart function”
Cut the Resistor JR07.
(Refer to page 51.)
Indoor coil
thermistor(RT13(sub))
PS132
OB272-3.qxp 02.1.26 1:24 PM Page 68
