13
(4) AREA setting is cancelled when the "cancel" is sellected by pressing AREA button, or when WIDE VANE
button is pressed.
· Be sure to set the slide switch inside the remote controller to an appropriate position in accordance with the installed
position of the indoor unit. If the switch is not set correctly, the air conditioner may not function properly.
(Refer to Service manual OB371 8-4.)

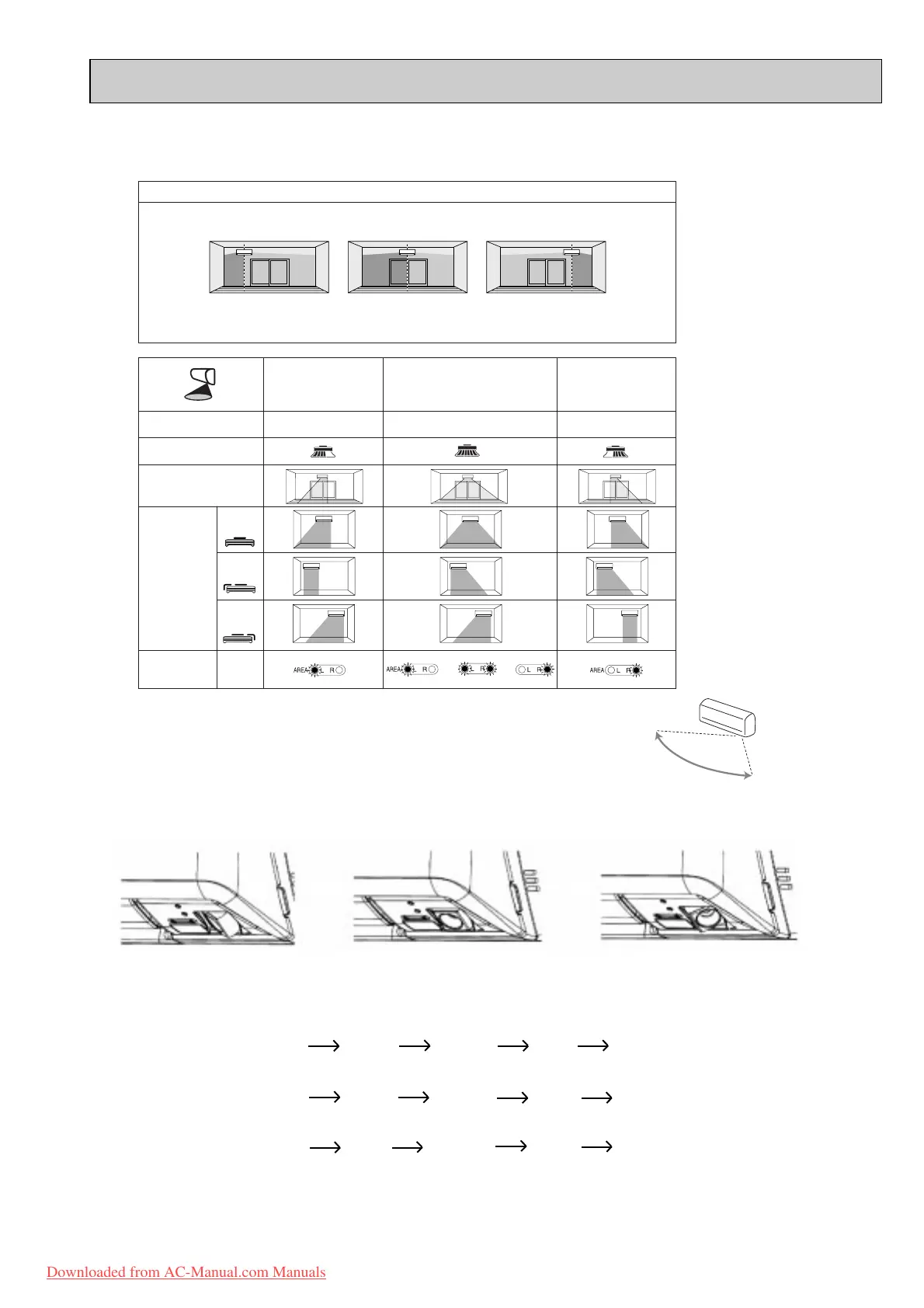

Indoor unit installation location and air-conditioning area
Installed at left Installed at center Installed at right
LEFT RIGHT LEFT RIGHT LEFT RIGHT
To air-condition mainly
the left area of the room
To air-condition the entire room
The horizontal air flow direction and in-
door unit display are switched accord-
ing to the room temperature (floor/wall).
To air-condition mainly
the right area of the room
Remote controller button
Press AREA button
to select LEFT.
Press AREA button to select AUTO.
Press AREA button
to select RIGHT.
i-see Sensor operation
Control range
of horizontal air
flow direction.
The vertical air
flow direction
conforms to the
setting on the
remote controller.
(The horizontal
air flow direction
is controlled in
this range.)
Installed
at center
Installed
at left
Installed
at right
Indoor unit
display
AREA
Remote controller display
or
or
NOTE: If the AREA setting is activated (AUTO), i-see Sensor moves in a range of 150 degrees detecting
floor/wall temperature of 3 area (left, right, center). Therefore, the detected temperatures
may be different from the temperatures measured on commercial thermometers
depending on the condition or temperature distribution on the floor and/or wall.
Approx. 150 degrees
Operation and operating range
i-see sensor moves 30 degrees from the center in both right and left side.
i-see Sensor operates as follows in accordance with AREA setting made with the remote controller.
“AUTO” in AREA setting; first turning to the LEFT for adjusting the position then.....
CENTER RIGHT CENTER LEFT CENTER......
(The sensor turns to the right, left and center.)
“RIGHT” in AREA setting; first turning to the LEFT for adjusting the position then....
CENTER RIGHT CENTER RIGHT CENTER......
(The sensor turns to the right and center.)
“LEFT” in AREA setting; first turning to the LEFT for adjusting the position then....
CENTER LEFT CENTER LEFT CENTER......
(The sensor turns to the left and center.)
The sensor finishes turning to one area to another for 3 seconds and it operates one area for 5 seconds.
i-see Sensor turning to the right
i-see Sensor turning to the center
i-see Sensor turning to the left
