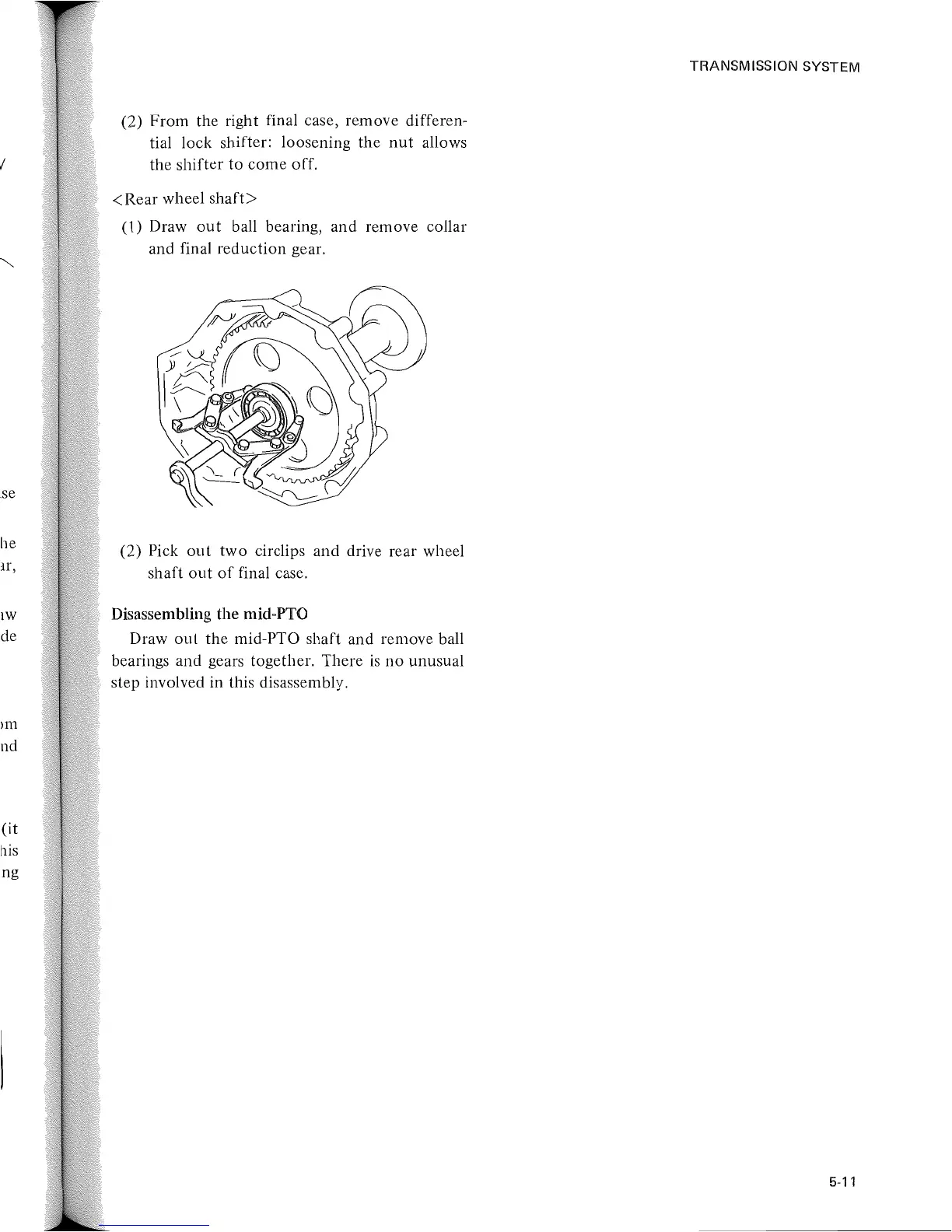

From
the right final case, remove differen-
tial lock shifter: loosening
the
nut
allows
the shifter
to
come off.
<Rear
wheel
shaft>
(I)
Draw
out
ball bearing, and remove collar
and final reduction gear.
(2)
Pick
out
two
circlips and drive rear wheel
shaft
out
of
final case.
Disassembling
the mid-PTO
Draw
out
the mid-PTO shaft and remove ball
bearings and gears together.
There
is
no
unusual
step involved in this disassembly.
TRANSMISSION SYSTEM
5-11
