Mitsubishi Outlander PHEV 2019

21
A
- Level 1 & Level 2 Port
B
- DC Fast Charging

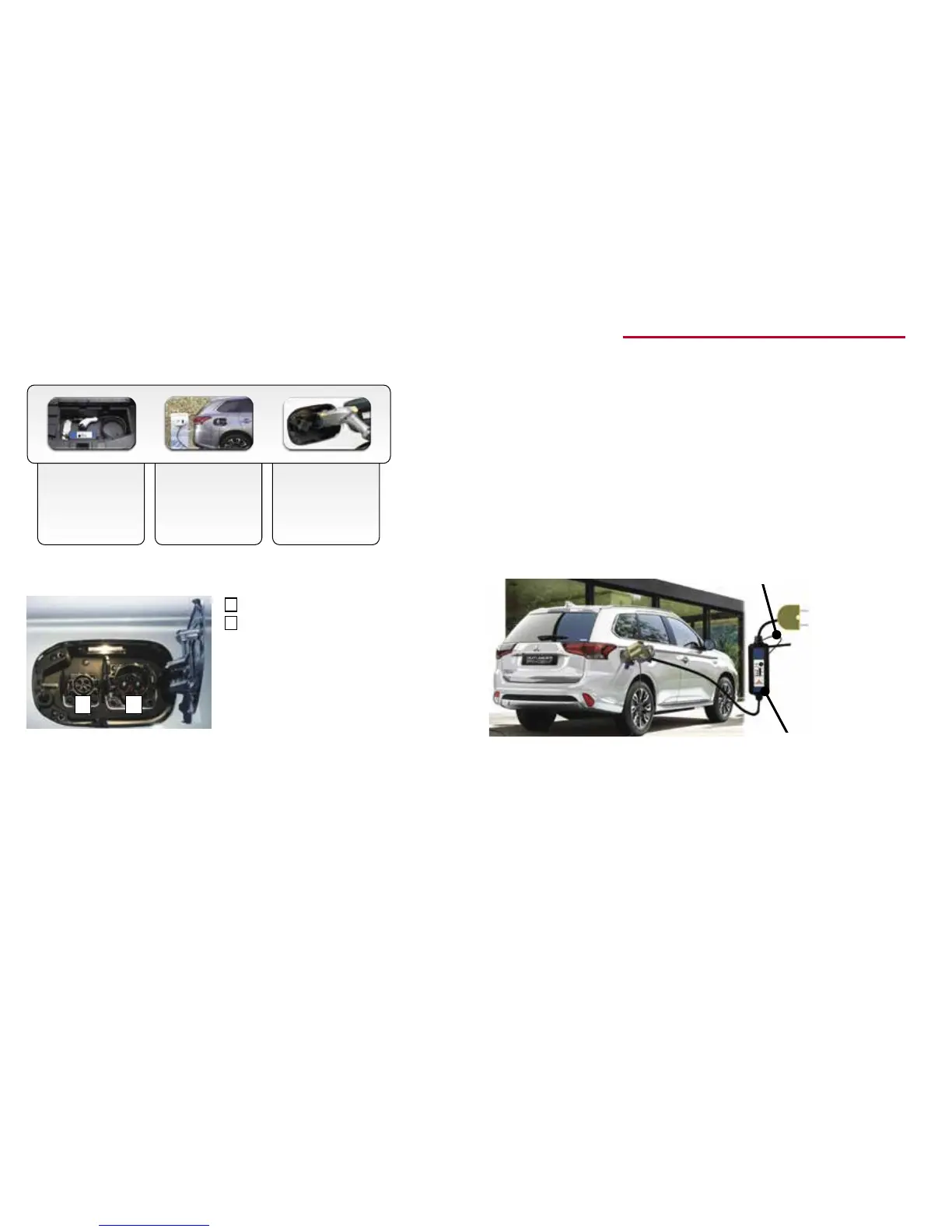

CHARGING OPTIONS LEVEL 1 CHARGING
CHARGING LID
LEVEL 1
120V
Approximately
8 hours to full
charge (12 Amps)
LEVEL 2
240V
Approximately
3.5 hours to
full charge
DC FAST
CHARGING
Approximately
25 minutes to
full charge
OPENING THE CHARGING LID
1. Firmly apply the parking brake, press the Electrical Parking
switch to the "P" position and put the operation mode of the
Power switch in OFF.
2. Unlock the driver's door to unlock the charging lid.
3. Push the rear portion of the charging lid until it clicks, and
open the charging lid.
4. Unlatch the desired charging port.
When charging is complete, close charging port and charging lid.
When vehicle is locked, charging lid will remain locked.
Vehicle will come equipped with a Level 1 Charging cable stored
in the rear cargo area.
TWO AMP OPTIONS ARE AVAILABLE ON THE CONTROL BOX:
• 8 AMP - default setting, approximately 13 hours to
complete charge
• 12 AMP - Approximately 8 hours to complete charge
TO USE:
• First plug cable into outlet
• Choose AMP amount
• Plug cable into left charging port
What is this String? The vehicle also comes equipped with a bag
labeled "String" located in the same compartment as the Level
1 charging cable. The string can be used to suspend the control
box during charging.
STRING
CONTROL BOX
*Mitsubishi Motors North America recommends home charging units be installed
by a certified electrician to ensure proper wiring and safe charging.
A B
CHARGING AND CHARGING MODES
European Spec Vehicle Shown
