It is necessary to measure the voltage with the Main drive lithium-ion battery front cable (P, N line) in the
engine room to check if there is no voltage.

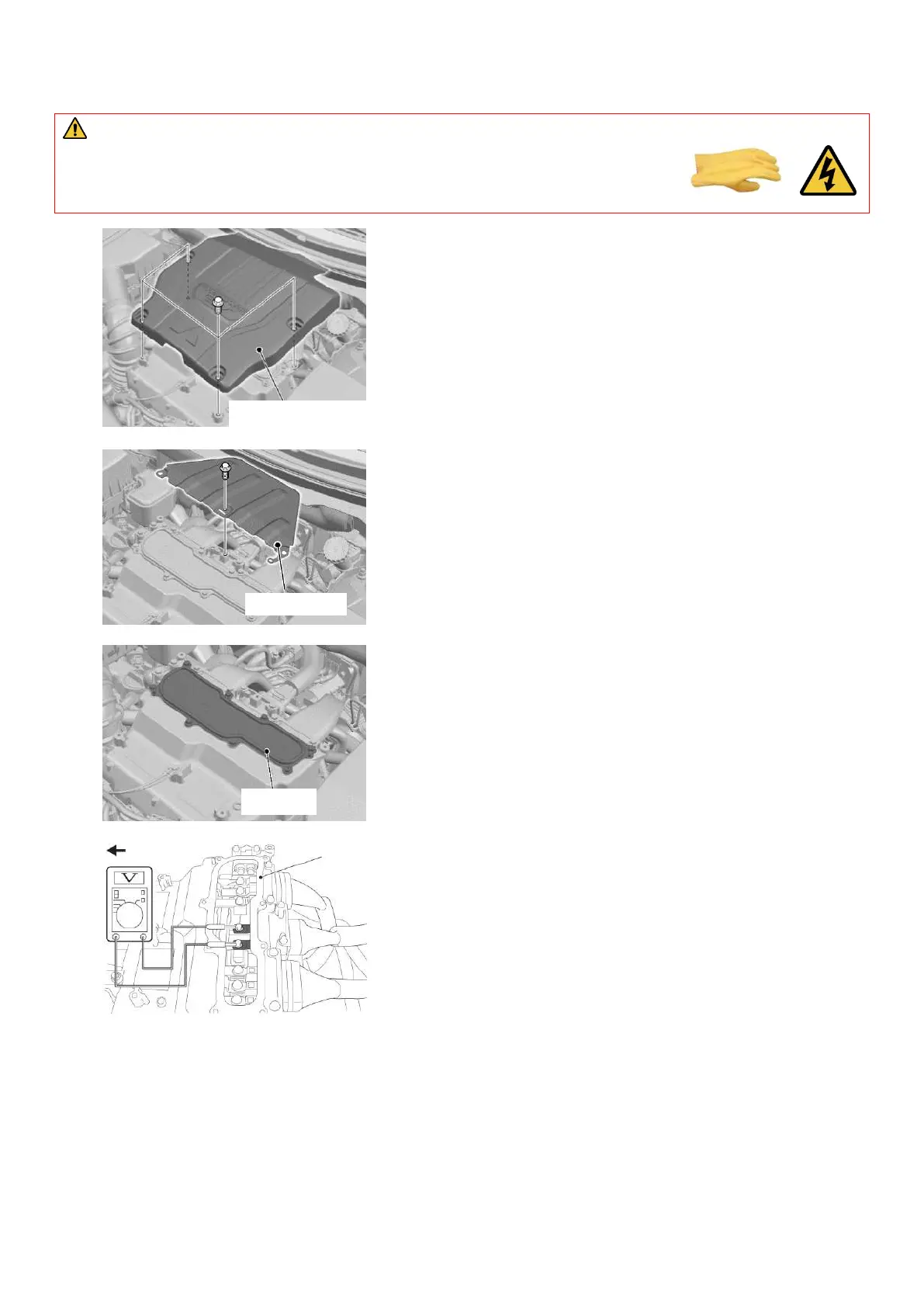

1) Remove the power drive unit cover.
2) Remove the PN cable cover.
3) Remove the service lid.
4) Carry out the inspection as shown in the figure using a high-
voltage multimeter.
No
rmal voltage: Approximately 0 Volt
Power Drive Unit Cover
POWER
DRIVE
UNIT
Front of vehicle
PN Cable cover
Service lid
WARNING:
Use insulating Personal Protective Equipment (PPE) (Rubber insulating gloves, Rubber soled
insulating shoes: rated to a minimum of 500V voltage resistance) when you may touch the
v
ehicle body directly or indirectly.
