The next step is to measure the distance between the Main drive lithium-ion battery rear cable (P, N line)
and the drive battery.

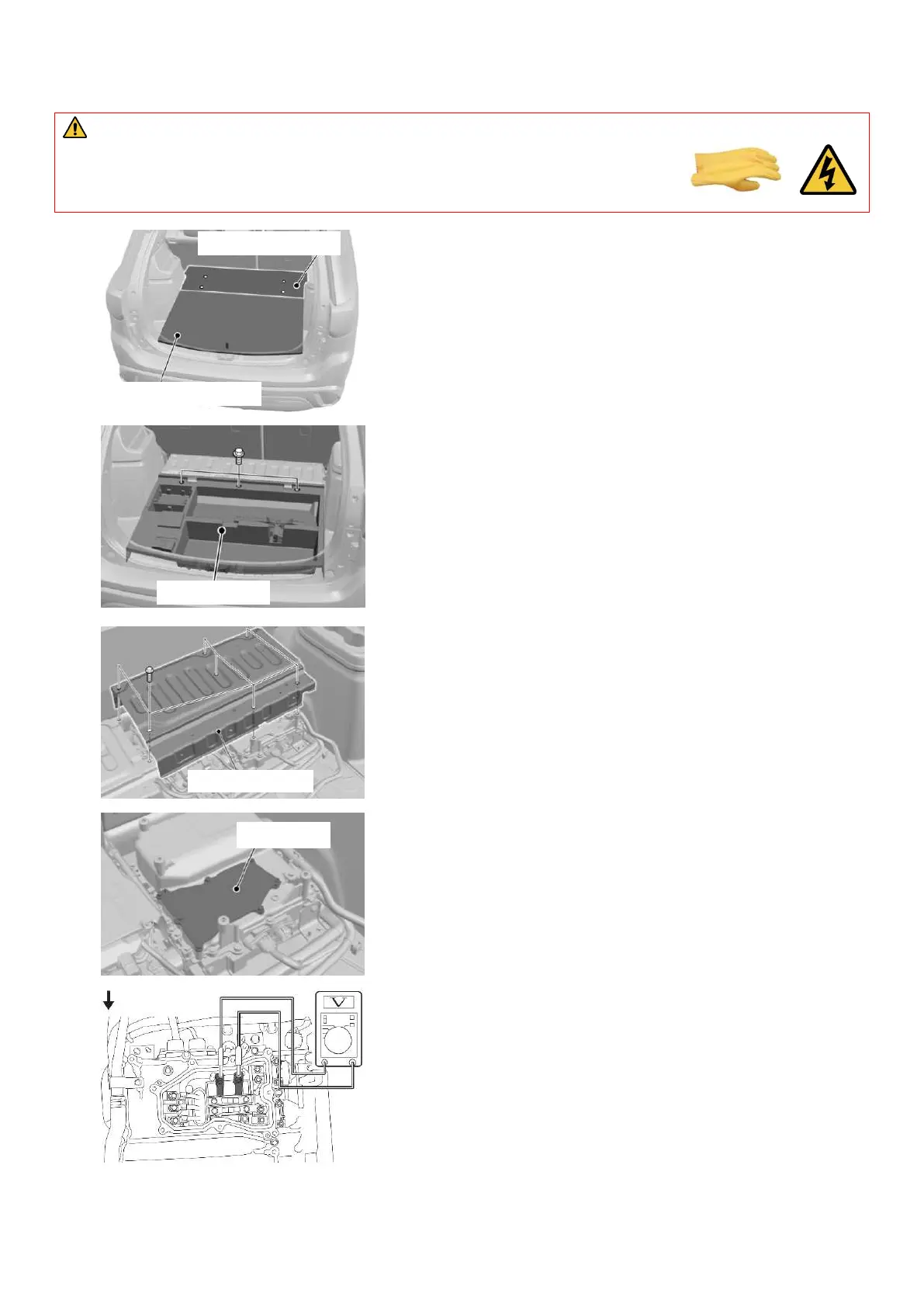

1) Remove the cargo floor box lid A, and D (four clips).
2) Remove the Cargo floor box (three bolts).
3) Remove the EV motor control unit cover.
4) Remove the Terminal cover assembly of a Rear motor control unit.
3) Carry out the inspection as shown in the figure using a high-
voltage multimeter.
Normal voltage: Approximately 0 Volt
Front of vehicle
EV motor control unit
Terminal cover
Cargo floor box lid D
Cargo floor box
Cargo floor box lid A
WARNING:
Use insulating Personal Protective Equipment (PPE) (Rubber insulating gloves, Rubber soled
insulating shoes: rated to a minimum of 500V voltage resistance) when you may touch the
vehicle body directly or indirectly.
